Vehicle DC Motor with Geared Output
This DC motor is designed for vehicle applications. It features a geared output shaft, durable metal housing, and compact design.
Technical Specifications
Overview
VDF35 Vehicle DC Motor
The VDF35 is a professional-grade vehicle DC motor engineered for robust performance and reliable power transmission. Featuring a durable metal housing and a high-precision geared output shaft, this unit is designed to withstand the rigors of demanding automotive environments. It provides a consistent power output of 36W with an efficient, compact design that simplifies integration into existing vehicle architectures.
Technical Performance
- Rated Voltage
- 12 V
- Power Output
- 36 W
- Stalling Torque
- 20 Nm
Operational Metrics
Performance Metrics
11 RPM
No-Load Speed
0.8 A
Max No-Load Current
7.2 RPM
Load Speed
3 A
Max Load Current
8 A
Max Stalling Current

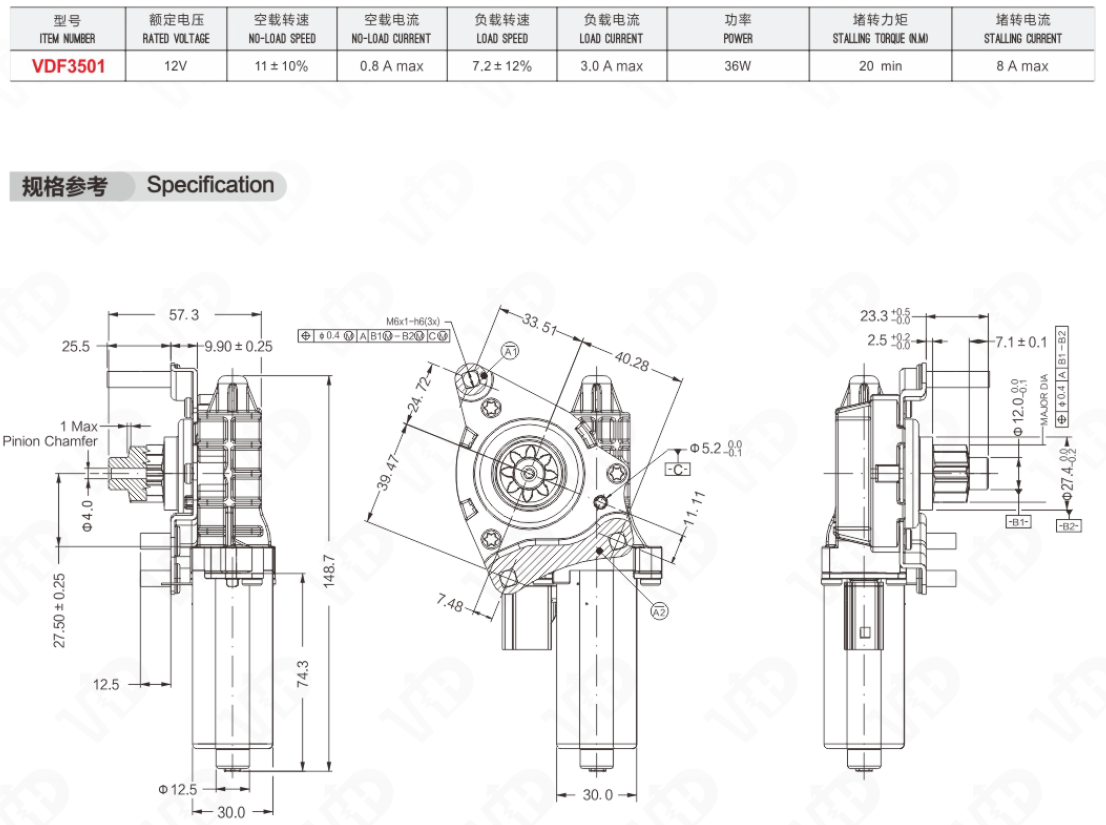

Mechanical Specifications
Key Dimensions
| Parameter | Value/Spec |
|---|---|
| Overall Length | 74.3 mm |
| Shaft Diameter | Φ12.5 |
| Mounting Pattern | M6x1-h6 (3x) |
- Mounting Configuration
- Threaded studsIntegrated washersM6x1-h63-point mounting
