Technical Specifications
Product Overview
VDF44 Vehicle DC Motor
The VDF44 is a compact, high-efficiency DC motor designed specifically for demanding vehicle applications. Featuring an integrated gearbox for optimal power transmission, it delivers 48W of power output with robust torque performance. This unit is constructed from durable materials to ensure long-term reliability in automotive environments.
Performance Metrics
Core Performance
12 V
Rated Voltage
48 W
Power Output
16 N.m
Stalling Torque
14 A
Stalling Current
Operational Data
| Parameter | Value |
|---|---|
| No-load Speed | 23 ± 3% |
| No-load Current | 1.5 A max |
| Load Speed | 19 ± 3% |
| Load Current | 4.0 A max |
Installation and Mounting

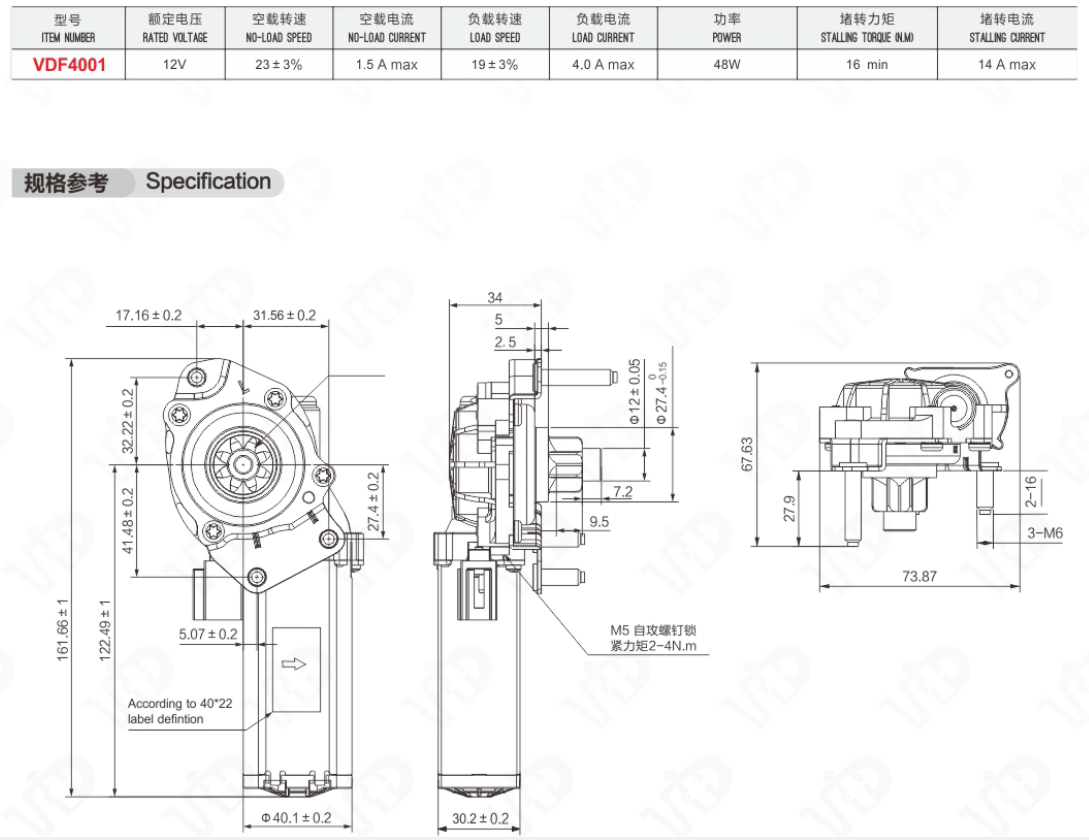

Mechanical Specifications
- Total length: 161.66 ± 1 mm
- Mounting hardware: M5 self-tapping screw
- Tightening torque: 2-4 N.m
- Output shaft diameter: Φ12 ± 0.05 mm
