Vacuum Cleaner Motor
This vacuum cleaner motor is designed for efficient and reliable operation. It features robust construction and delivers optimal suction power while maintaining low noise levels.
Technical Specifications
Overview

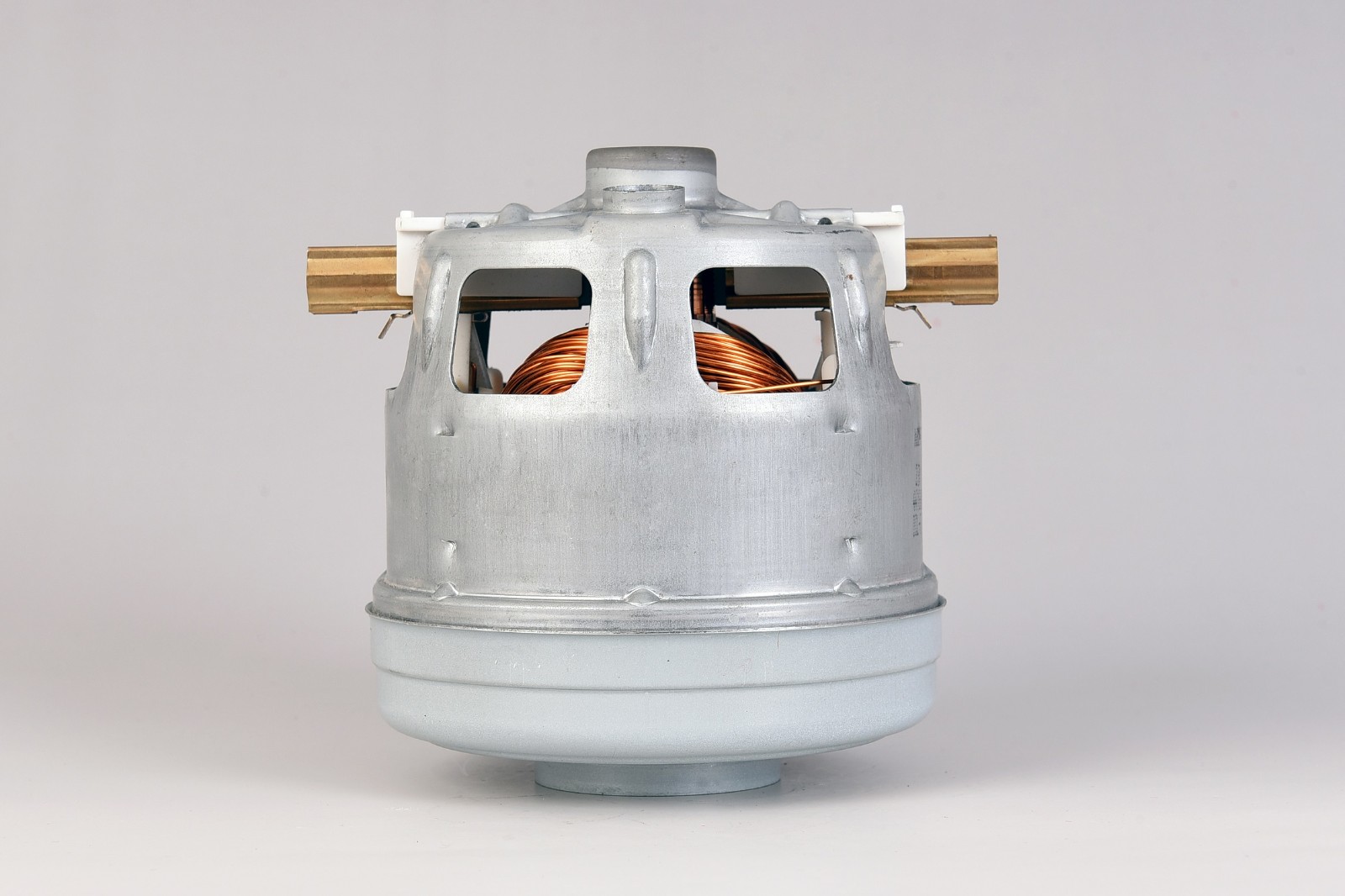

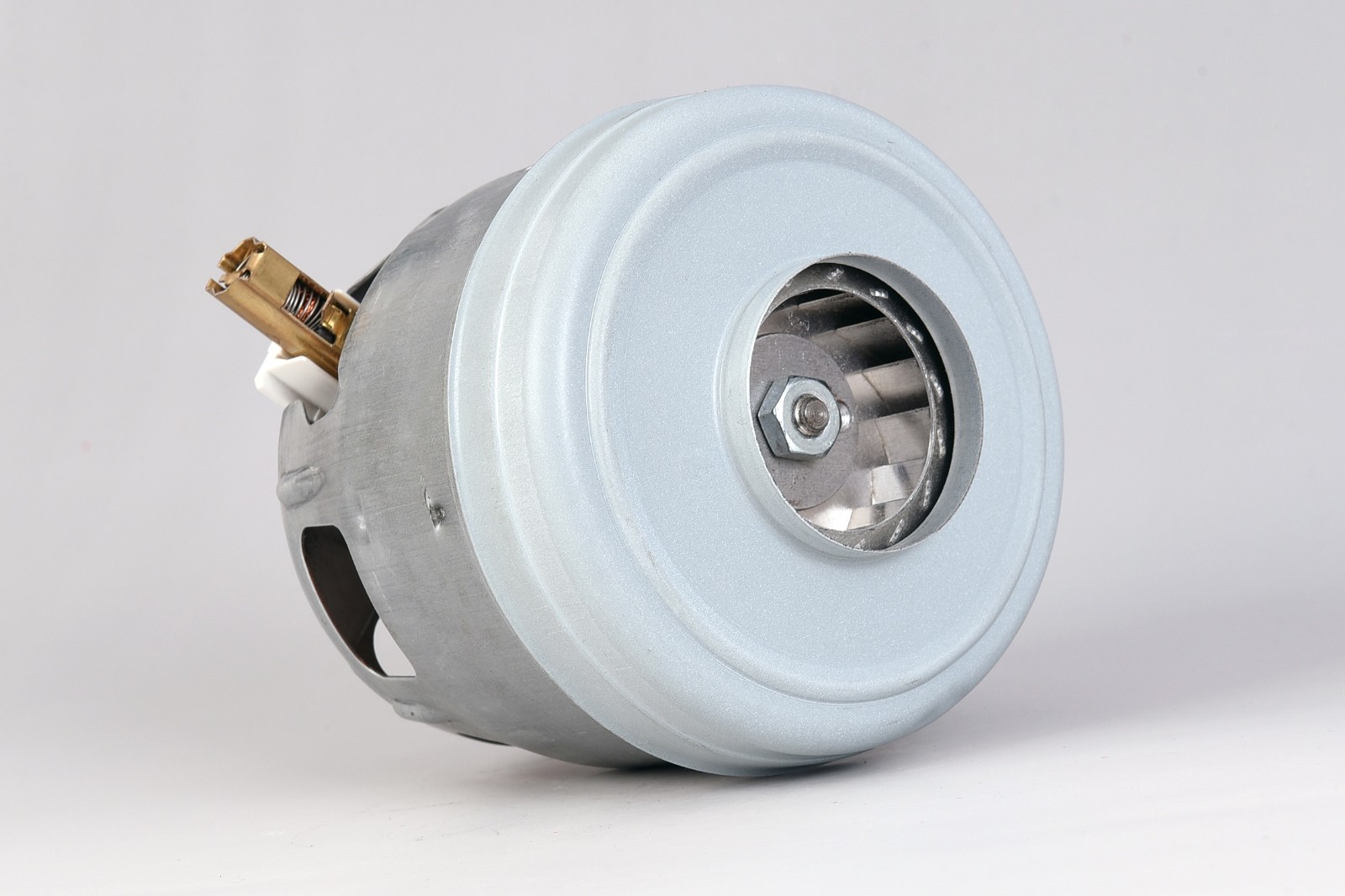

High-Performance Vacuum Cleaner Motor
The HWX-CG57 is a robust, dry-type vacuum cleaner motor engineered for high efficiency and consistent performance. Designed for both household and commercial applications, it features durable internal components, including copper windings and high-quality bearings, to ensure a long operational lifespan. This motor delivers exceptional suction power and airflow, making it a reliable choice for vacuum cleaner manufacturers and maintenance services.
Performance Metrics
Key Performance Metrics
1,600 W
Input Power
22.5 Kpa
Max Vacuum
3.3 m3/min
Max Airflow
35 %
Max Suction Efficiency
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 100-240 V |
| Frequency | 50/60 Hz |
| Noise Level | < 98 dB |
| Spark Grade | < 2 |
| Temperature Rise | 115 K |
Dimensions
Physical Dimensions
| Component | Measurement (mm) |
|---|---|
| Total Height | 113 ± 1 |
| Top Width | 126 + 1 |
| Main Body Height | 92.5 ± 1 |
| Diameter 1 | 23.5 ± 0.5 |
| Diameter 2 | 44.5 ± 0.5 |
| Diameter 3 | 96 ± 0.5 |
| Diameter 4 | 100.5 ± 0.5 |
| Upper Section Height | 11 ± 0.5 |
| Lower Section Extension | 6.5 ± 1 |
