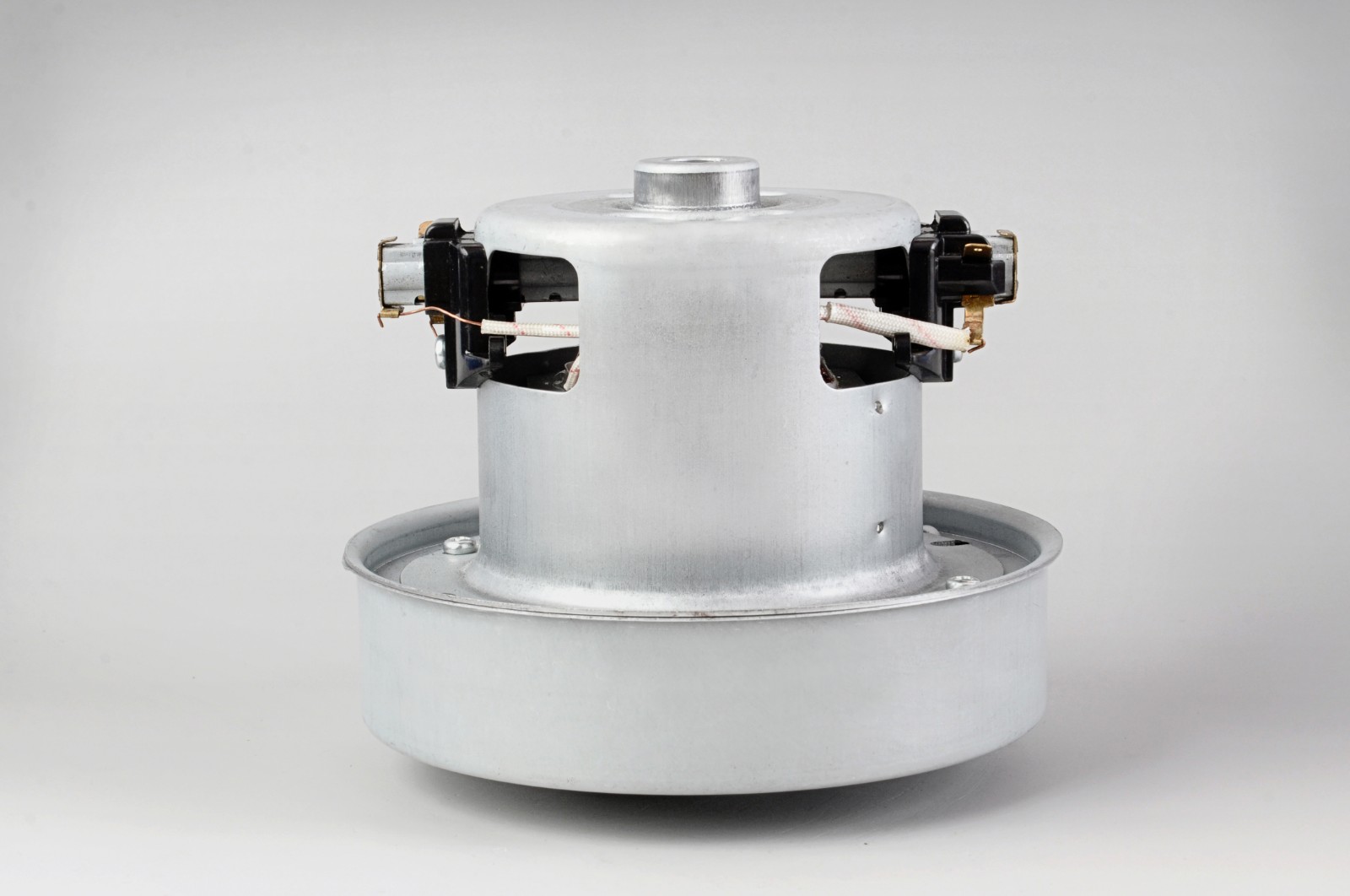

Vacuum Cleaner Motor
This vacuum cleaner motor is designed for efficient and reliable operation. It features a robust construction with a metal housing for durability and heat dissipation.
Technical Specifications
Overview
High-Performance Vacuum Cleaner Motor
The HWX-CG03(P) series is a high-performance vacuum cleaner motor engineered for durability and efficient suction. It features a robust metal housing that ensures effective heat dissipation and a long operational lifespan. Designed for seamless integration, it offers versatile power compatibility and high airflow efficiency for demanding cleaning environments.
Performance
Key Performance Metrics
1,400 W
Max Input Power
28 Kpa
Max Vacuum Degree
3.3 m3/min
Max Airflow
39 %
Max Suction Efficiency
Electrical Specifications
Electrical Ratings
| Parameter | Value |
|---|---|
| Voltage | 100-240 V |
| Frequency | 50/60 Hz |
| Power Range | 1200-1400 W |
Operational Safety
Operating Limits
- Noise Level: < 92 dB
- Spark Grade: < 2
- Temperature Rise: 115 K

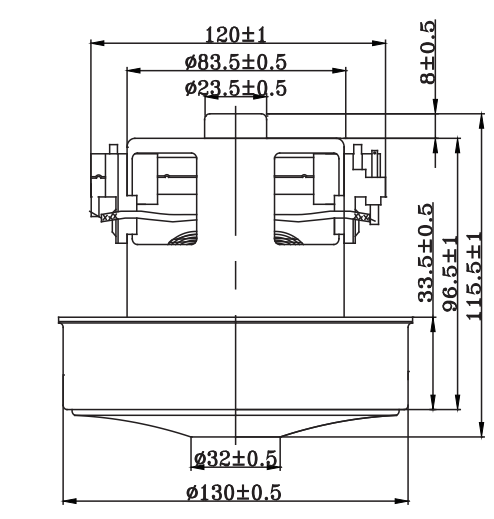

Physical Dimensions
Physical Dimensions
| Measurement | Value (mm) |
|---|---|
| Overall Height | 115.5 ± 1 |
| Top Width | 120 ± 1 |
| Base Diameter 1 | 32 ± 0.5 |
| Base Diameter 2 | 130 ± 0.5 |
