Vacuum Cleaner DC Motor
This DC motor is designed for vacuum cleaner applications. It is optimized for high-speed operation and efficient power consumption.
Technical Specifications
Product Overview

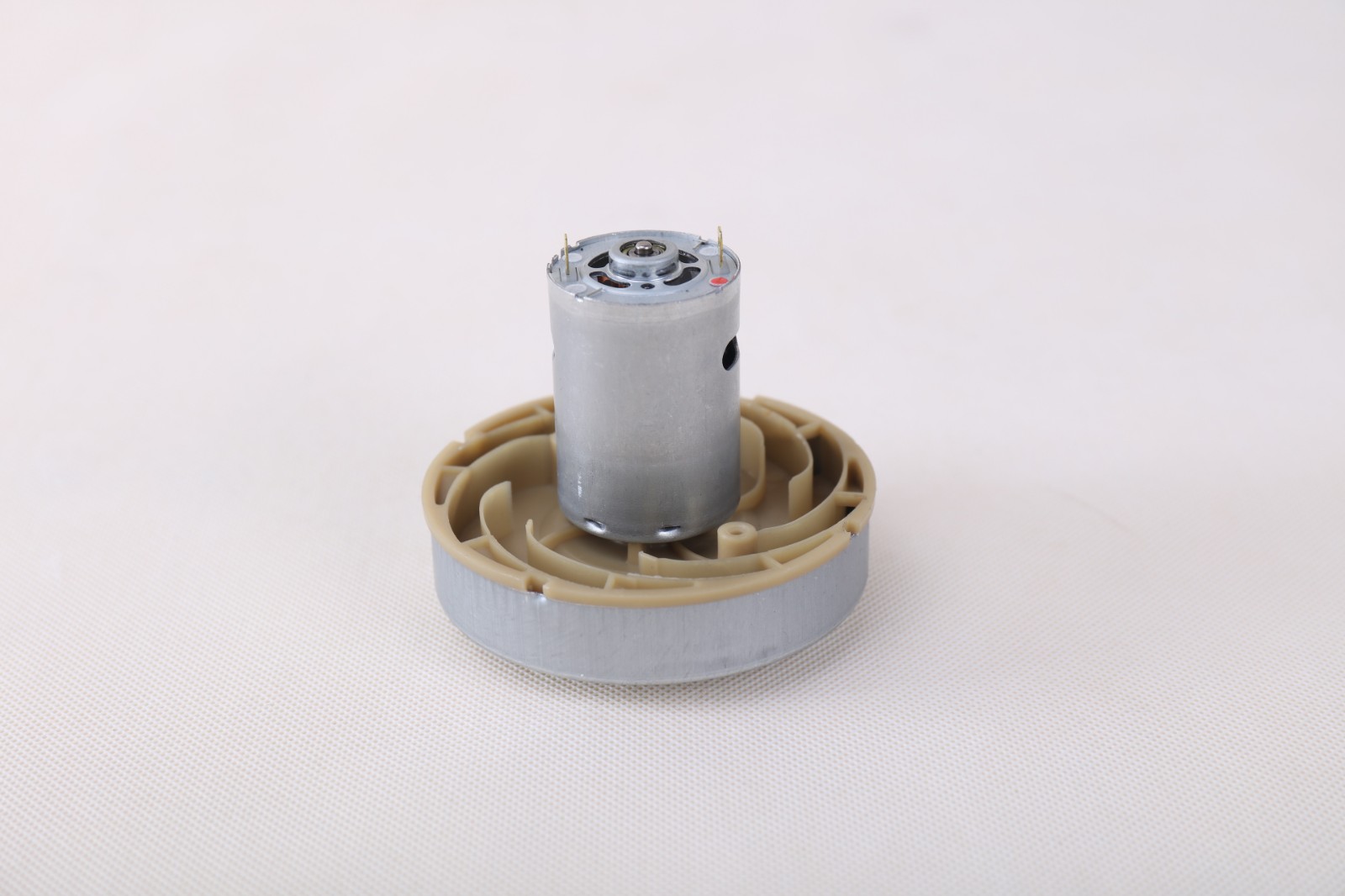

High-Performance Vacuum DC Motor
The CG-DC86 is a robust and compact DC motor specifically engineered for vacuum cleaner applications. It provides versatile power options ranging from 2.4V to 30V, making it suitable for a wide variety of cleaning equipment models. With a focused design on suction efficiency and high-speed reliability, this motor ensures consistent performance for demanding cleaning tasks.
Technical Performance
Rated Input Power
40 W
Minimum Power
150 W
Maximum Power
- Rated Voltage
- 2.4V - 30V
- Max Vacuum Degree
- 3KPA - 12KPA

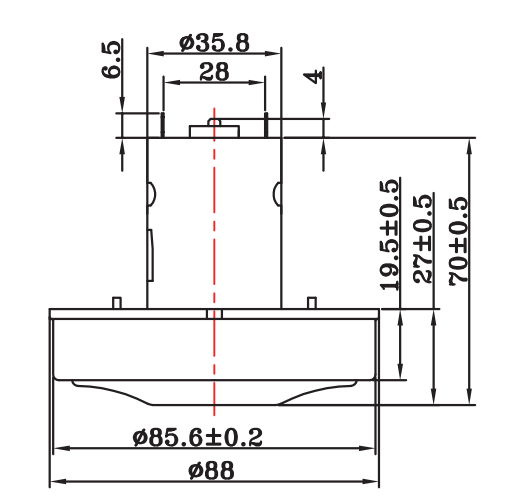

Physical Dimensions
Detailed Specifications
| Component | Measurement |
|---|---|
| Top Section Diameter | 35.8mm |
| Inner Diameter | 28mm |
| Top Section Height | 6.5mm |
| Middle Segment 1 | 19.5mm |
| Middle Segment 2 | 27mm |
| Outer Edge Diameter | 88mm |
- Total Motor Height
- 70 mm
- Base Diameter
- 85.6 mm
