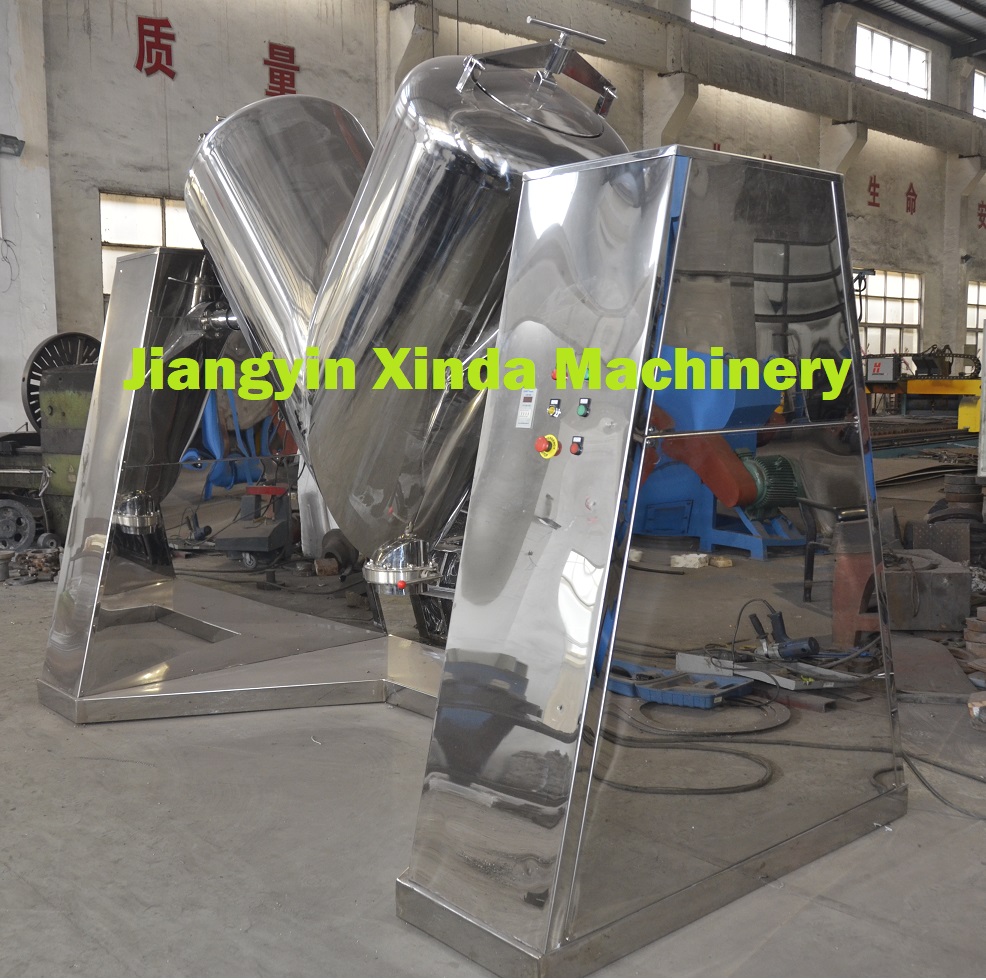

V-Shell Powder Blender
The V-shell powder blender is used for evenly combining dry powders, granules, and crystals. Its V-shaped vessel rotates, promoting thorough mixing, while the enclosed design minimizes dust and contamination.
Technical Specifications
Product Overview
High Efficiency Mixing Technology
The V-Shell Powder Blender is a specialized industrial mixer engineered for the uniform blending of dry granules and powders. Its unique structural design eliminates dead corners, ensuring high efficiency and homogeneity in every batch. Built from durable stainless steel with polished interior and exterior surfaces, it meets rigorous sanitation standards required for pharmaceutical and chemical processing.
Key Features
- Primary Advantages
- Stainless Steel ConstructionDead-Corner Free DesignHigh Mixing EfficiencyPolished Interior/ExteriorEnclosed Mixing System
Technical Specifications
Model Performance Data
| Model | Capacity (kg/h) | Total Volume (m3) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|
| GHJ-180 | 40 | 0.18 | 1.1 | 280 |
| GHJ-300 | 80 | 0.3 | 1.5 | 350 |
| GHJ-500 | 100 | 0.5 | 2.2 | 550 |
| GHJ-1000 | 200 | 1 | 4 | 950 |
| GHJ-1500 | 300 | 1.5 | 5.5 | 1,100 |
| GHJ-2000 | 400 | 2 | 7.5 | 1,600 |
| GHJ-2500 | 500 | 2.5 | 7.5 | 2,040 |
| GHJ-4000 | 800 | 4 | 11 | 2,800 |
Performance Metrics
Typical Processing Times
4 min
Charge-in Time
6 min
Mixing Time
