Vacuum Kneader Mixer

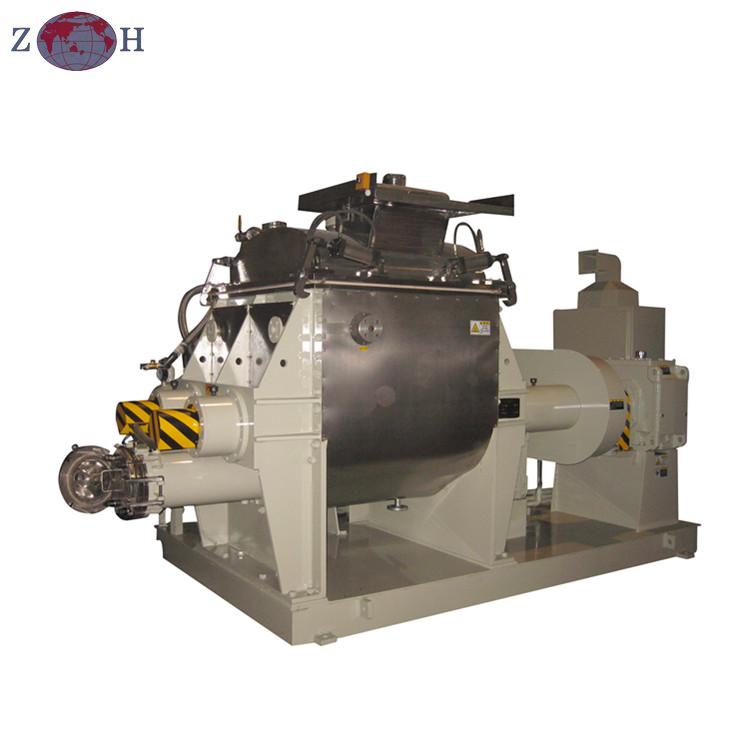

The vacuum kneader mixer is an industrial mixing machine designed for processing viscous materials under vacuum. It features a stainless steel mixing chamber with dual kneading blades for thorough and homogenous mixing.
Technical Specifications
Overview
Industrial High-Viscosity Vacuum Kneader
The NHZ-300C Vacuum Kneader is engineered for precision mixing and kneading of super high-viscosity materials including sealants, silicone rubber, and resins. It features an advanced double sigma blade system and a screw extruding discharge mechanism to ensure homogenous consistency. Designed for demanding industrial environments, the unit incorporates comprehensive temperature control options and a vacuum system to optimize product quality by removing air and moisture.
Capacity and Power
Core Performance Metrics
320 L
Total Capacity
210 L
Working Capacity
15 kW
Main Motor Power
Technical Specifications
Mixing Blade Details
- Type: Double sigma blades
- Front revolution: 0-35 rpm
- Rear revolution: 0-24 rpm
- Material: Cast steel with 3mm SUS304 surface weld
Screw Extrusion System
| Feature | Specification |
|---|---|
| Diameter | 138 mm |
| Material | 38CrMoAl (Nitrided) |
| Hardness | HV 800 |
| Speed | 0-52 rpm |
Construction and Materials
- Material Specifications
- SUS304 Inner Trough12mm Mild Steel JacketPTFE PackingViton Lid Seal
Operations
Operational Capabilities
- Heating: Electrical heating or oil/steam jacket
- Lid: Hydraulic cylinder opening (70 degrees)
- Control: PLC system with PT100 thermal sensor
- Electricals: Schneider & Omron components
