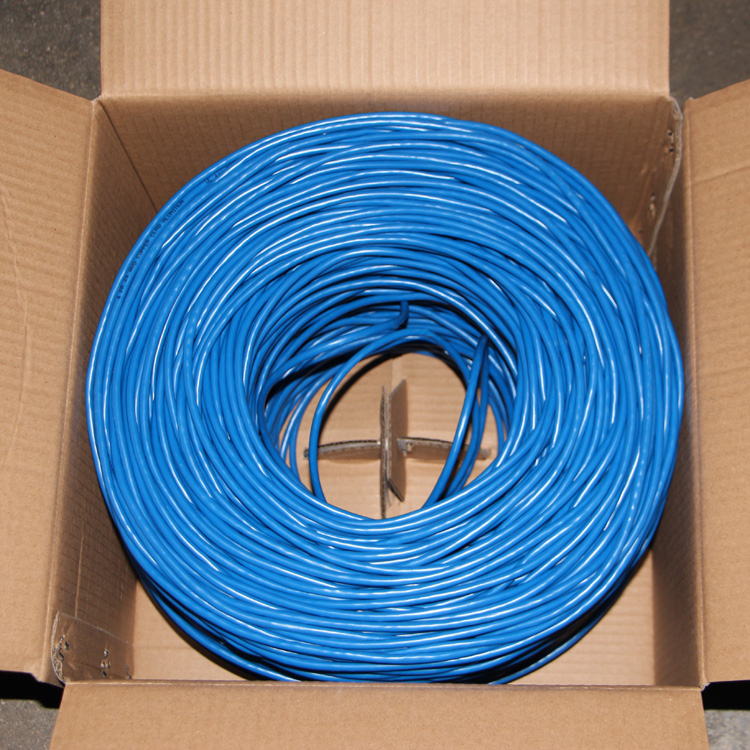

UTP CAT5E Indoor Ethernet Cable
This UTP CAT5E cable is designed for indoor networking applications. It consists of 4 pairs of solid conductors, ensuring reliable data transmission.
Technical Specifications
Product Overview
High-Performance Indoor Networking
This UTP Cat5e indoor Ethernet cable is engineered for reliable data transmission in professional local area network environments. It supports high-speed applications including 1000Base-T, multimedia, and trunk wiring, ensuring consistent performance for voice, data, and video. The cable meets international safety and flame retardant standards, making it a dependable choice for structured cabling installations.
Electrical Specifications
Characteristic Impedance
100 Ω
Impedance
- Maximum DC Resistance
- 9.38 Ω/100m
- Max Propagation Delay
- 536 ns/100m
Technical Standards
Flame Retardant Ratings
- CM (UL 1581)
- CMR (UL 1666/UL 910)
- IEC 60332-1 (FRPVC/LSZH)
- IEC 60332-3C (LSFROH)
- Industry Standards
- ISO/IEC 11801ANSI/TIA/EIA-568-BUL444UL 1581IEC 60332-1
Physical Properties
Available Cable Configurations
| Construction | Pairs | Diameter (mm) | Jacket Type |
|---|---|---|---|
| UTP | 2 | 3.8 | PVC |
| UTP | 4 | 5.3 | PVC/LSZH |
| UTP | 4 | 5.5 | PE |
| UTP | 4 | 6.3 | PVC+PE |
| UTP | 25 | 13 | PVC/PE/LSZH |
Temperature Range
Working: -5°C to +50°CStorage: -20°C to +60°C
