Technical Specifications
Overview

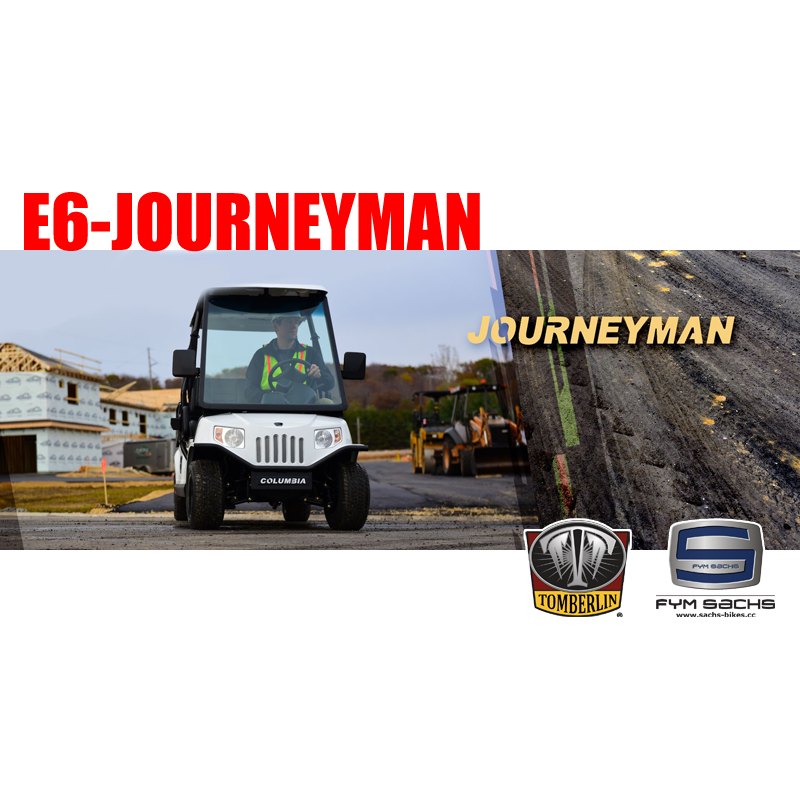

Industrial Utility Vehicle
This utility vehicle is engineered for demanding industrial environments, offering a robust and reliable solution for worksite transportation. With a 6-passenger capacity and a powerful 48-volt AC drivetrain, it balances high-performance capability with efficient operation. Designed for durability, it features independent suspension and hydraulic braking systems to ensure safety and stability across various terrains.
Performance & Powertrain
Drive Motor Power
5 kW
Motor Power
17 hp
Peak Horsepower
Range & Charging
40 Miles
Range
1,050 W
On-board Charger
- Electrical System
- 48-volt system450 amp Sevcon controllerAC drive motor
Dimensions & Capacity
Dimensions
| Metric | Value |
|---|---|
| Length | 13 ft |
| Width | 4 ft |
| Height | 6 ft 4 in |
| Weight | 1400 lbs |
- Passenger Capacity
- 6 people
Chassis & Handling
Suspension & Steering
- Custom independent dual a-arm front suspension
- Double-ended rack and pinion steering
- Electric power steering
- Front/rear shocks with anti-roll sway bar
- Braking System
- 4-wheel hydraulic brakes
Features & Safety
Safety Features
3-point seat beltsReverse control switch
- Connectivity
- Dual USB ports12-volt power port
Warranty
- Warranty
- 5-year limited warranty
