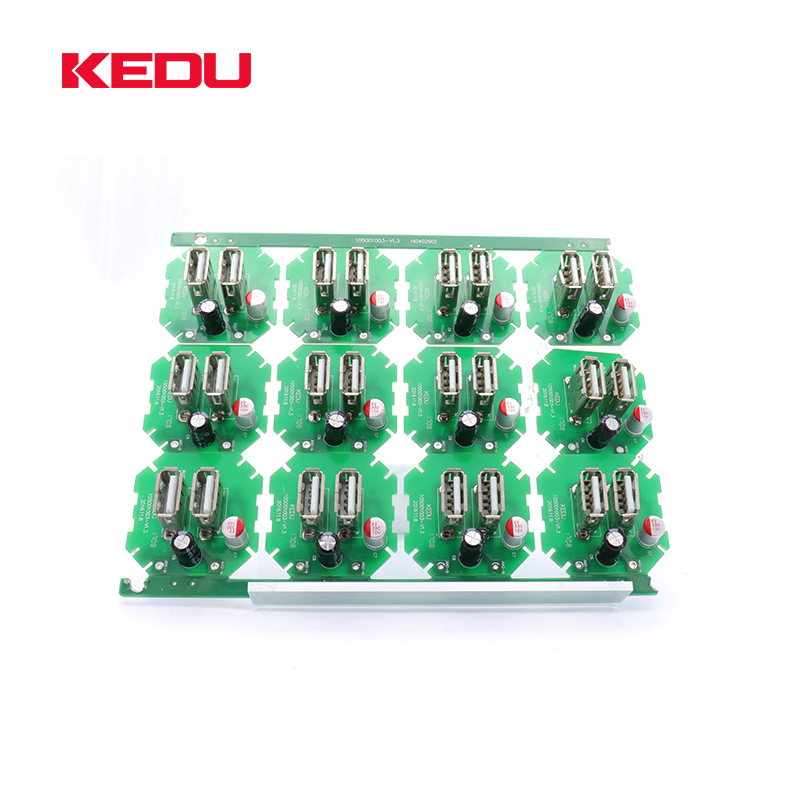

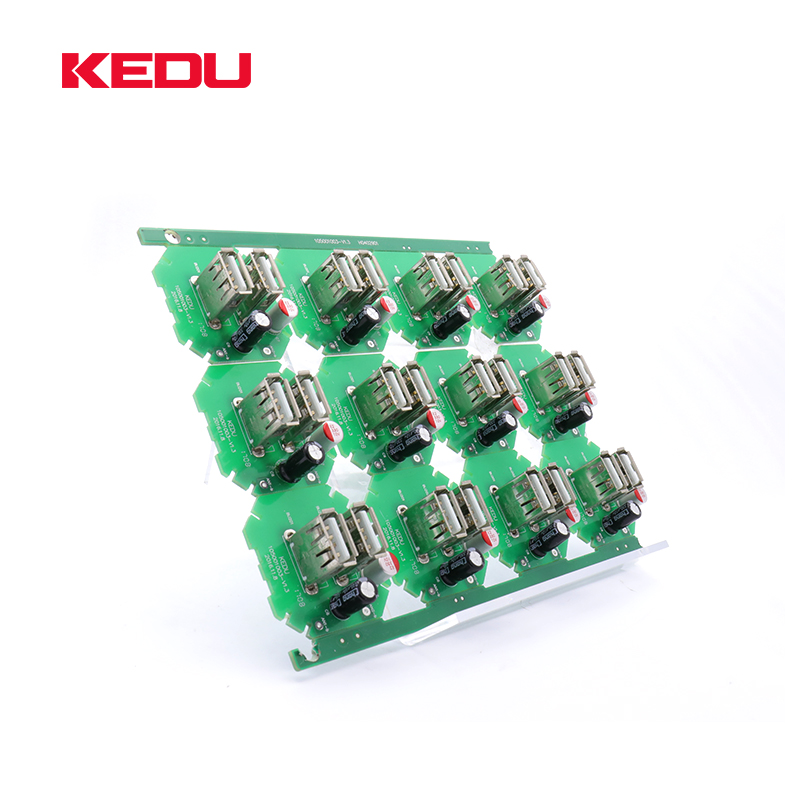

USB Charger Circuit Board
This printed circuit board (PCB) is engineered specifically for USB charging applications, providing a reliable foundation for power delivery. It features a dual-port configuration, allowing for the simultaneous connection of devices. Designed with essential electronic components including capacitors and connectors, this board offers a stable solution for integration into custom charging hardware.
Technical Specifications
- Number of Outputs
- 2
- Output Voltage
- 5 V
- Output Current Options
- 1A2A
Component Details
Key Components
- USB Connectors (BU201, BU202)
- Capacitors (330µF, 10V)
- Surface Mount Devices (SMD)
- Manufacturing Date Reference
- 2016-11-08
