Printed Circuit Board (PCB)
Printed circuit boards provide a base for mounting electronic components. They facilitate electrical connections using conductive tracks, pads, and other features etched from copper layers.
Technical Specifications
Product Overview
Professional Grade Printed Circuit Board

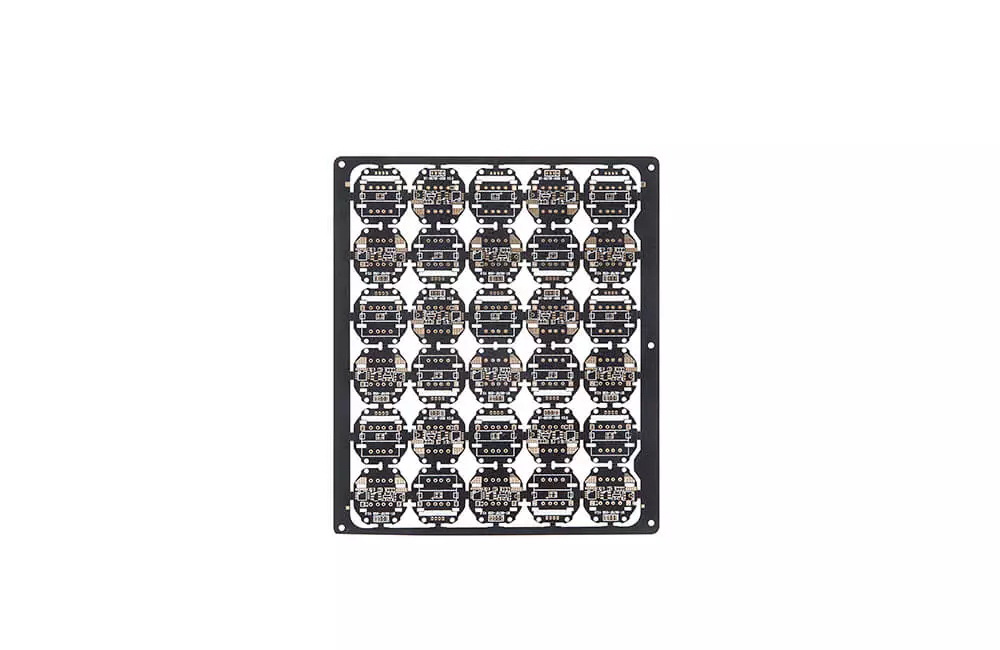

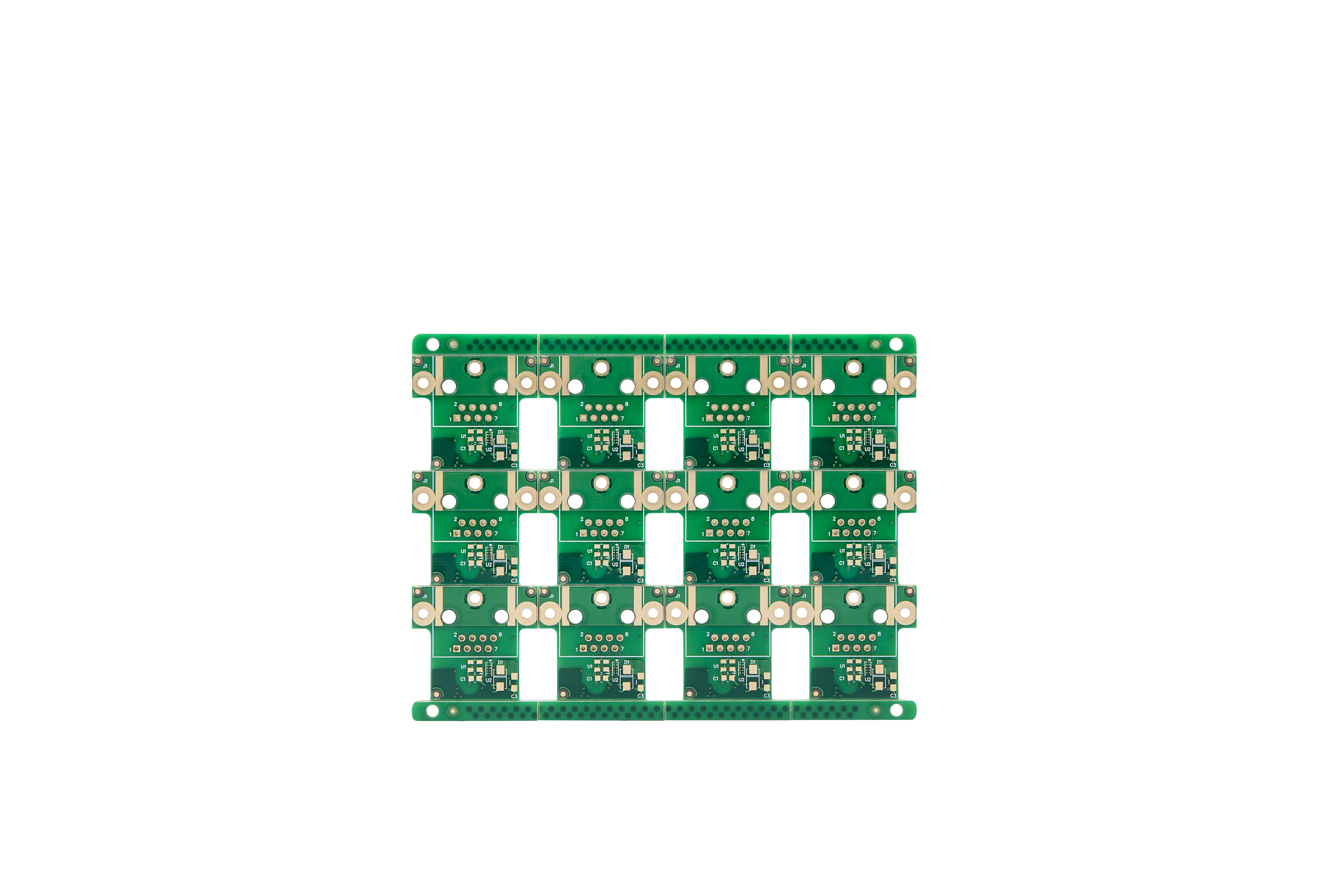

These high-density printed circuit boards are designed for reliability and efficiency in advanced electronic systems. Featuring a multi-module panelized design, they support streamlined manufacturing processes with integrated breakaway tabs. These boards incorporate complex conductive traces and mixed-component mounting, ensuring high precision for professional-grade prototyping and mass-production applications.
Technical Features
Integrated Features
- Breakaway tabs for module separation
- Edge connectors for plug-in applications
- Vias and soldering pads
- Interconnected module grid
- Construction Type
- Through-holeSurface MountPanelizedHigh-density
Manufacturing Specifications
Performance Metrics
52 index
Substrate Density Rating
