Unmanned Agricultural Spraying Robot
This unmanned robot provides precise spraying to reduce herbicide consumption. It features hybrid drive technology for extended range and operates autonomously using GPS+RTK+IMU navigation.
Technical Specifications
Product Overview
Intelligent Agricultural Automation
This unmanned agricultural spraying robot represents a leap in precision farming, integrating advanced machine learning and autonomous driving technology. It autonomously identifies crops and weeds, performing millimeter-level herbicide application to optimize yields and minimize environmental impact. Engineered for durability, the system features a 4WD chassis and hybrid drive technology, making it suitable for complex terrains while maintaining a low carbon footprint.
Technical Metrics
Operational Metrics
10 mu/h
Operation Efficiency
95 %
Herbicide Accuracy
6 h
Continuous Runtime

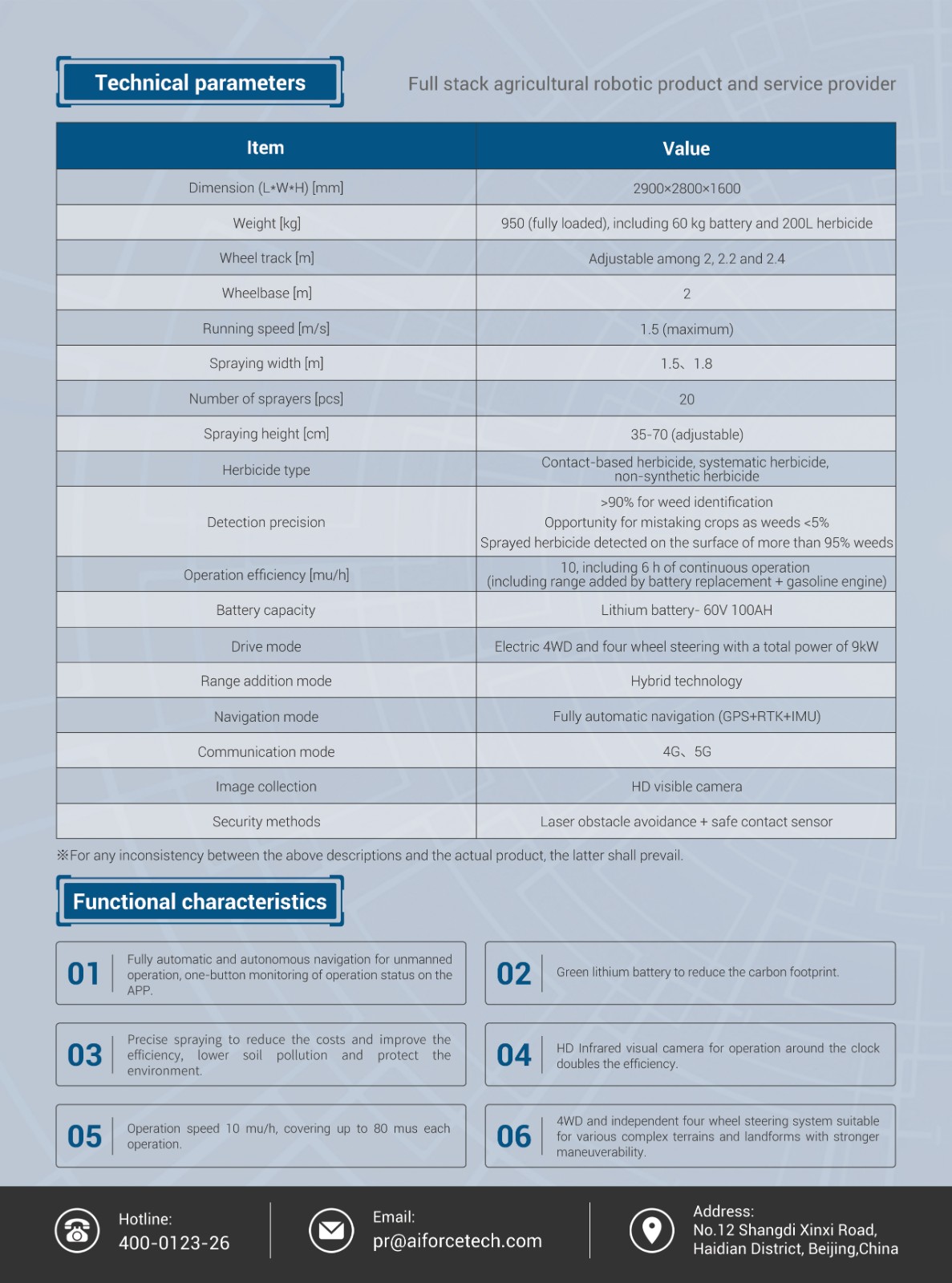

Detailed Technical Specifications
| Feature | Specification |
|---|---|
| Weight | 950 kg (full load) |
| Dimensions | 2900 x 2800 x 1600 mm |
| Spraying Width | 1.5 - 1.8 m |
| Spraying Height | 35 - 70 cm |
| Wheelbase | 2 m |
Navigation and Hardware
- Key Systems
- GPS+RTK+IMU Navigation4G/5G ConnectivityElectric 4WDLaser Obstacle AvoidanceHybrid Drive Technology
Environmental and Usage
Compatible Herbicide Types
- Contact-based herbicide
- Systematic herbicide
- Non-synthetic herbicide
- Eco-friendly Design
- Yes
