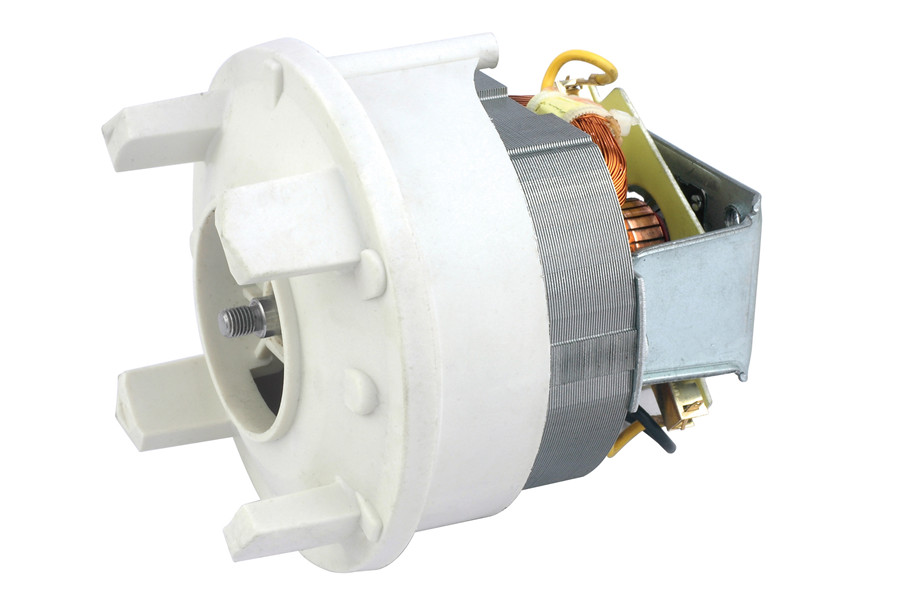

Universal Electric Motor for Blenders and Food Processors
This universal motor is designed for blenders, food processors, mixers, and juicers. It features copper windings and a cooling fan for efficient operation.
Technical Specifications
Product Overview
High-Performance Universal Motor
This 8825C universal motor is engineered for high-demand kitchen appliances including blenders, food processors, juicers, and meat grinders. Designed with a robust laminated stator core and copper windings, it ensures efficient electromagnetic conversion and reliable power delivery. The unit features integrated thermal protection and flexible bearing options, making it a versatile choice for various appliance manufacturing requirements.
Electrical Specifications
- Voltage Range
- 110V - 240V
- Frequency
- 50/60Hz
- Power Draw
- 400 - 500 Watts
Performance Metrics
Speed
20,000 RPM
Min Speed
25,000 RPM
Max Speed
Mechanical Specifications
- Lamination Diameter
- 88 mm
- Shaft Diameter
- 8 mm
- Bearing Options
- Sleeve BearingBall Bearing
Safety & Compliance
Insulation Class
Class EClass F
- Protection
- Thermal fuse devices (with or without reset function)
Applications
Compatible Appliances
- Food Processor
- Blender
- Juicer
- Chopper
- Meat Grinder
- Bar Mixer
- Cutter
