Unitized Mud Pump Package with Diesel Engine
This unitized mud pump package is engineered for efficient and reliable operation in demanding drilling environments. It features a robust frame, integrated cooling system, and easy access for maintenance, making it ideal for warehouse or field applications.
Technical Specifications
Product Overview
High-Performance Drilling Power

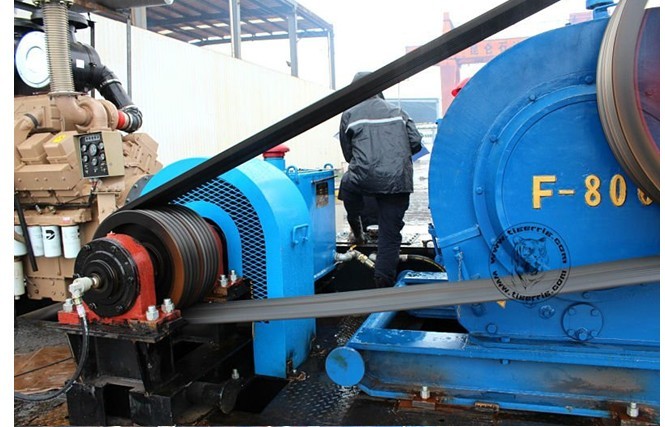

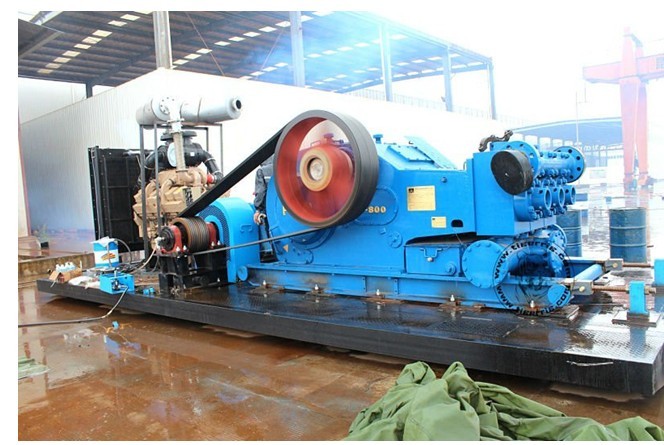

This unitized mud pump package is engineered for demanding drilling environments, featuring a robust 800 HP capacity mounted on a heavy-duty master skid. The system is powered by a reliable Caterpillar 3508 diesel engine and utilizes a linear drive configuration for consistent operation. Designed for immediate field deployment, it includes all essential accessories like a pulsation dampener, liner wash system, and supercharging centrifugal pump.
Technical Specifications
Rated Power
800 HP
Horsepower
- Drive Configuration
- Linear drive type mud pump package
Engine and Power
- Engine Model
- Caterpillar 3508 Diesel
- Starting Method
- Air starting motor
- PTO System
- Power grip air actuated PTO
Auxiliary Components
Package Components
- 5M Pulsation dampener
- Relief valve
- Pressure gauge
- Liner wash system
- Diesel tank
- Air tank
- Supercharging centrifugal pump
Design and Build
- Mounting
- Master skid mounted
- Belt Type
- Kevlar belts and sheaves
Compliance and Features
- Customization Options
- Yes
