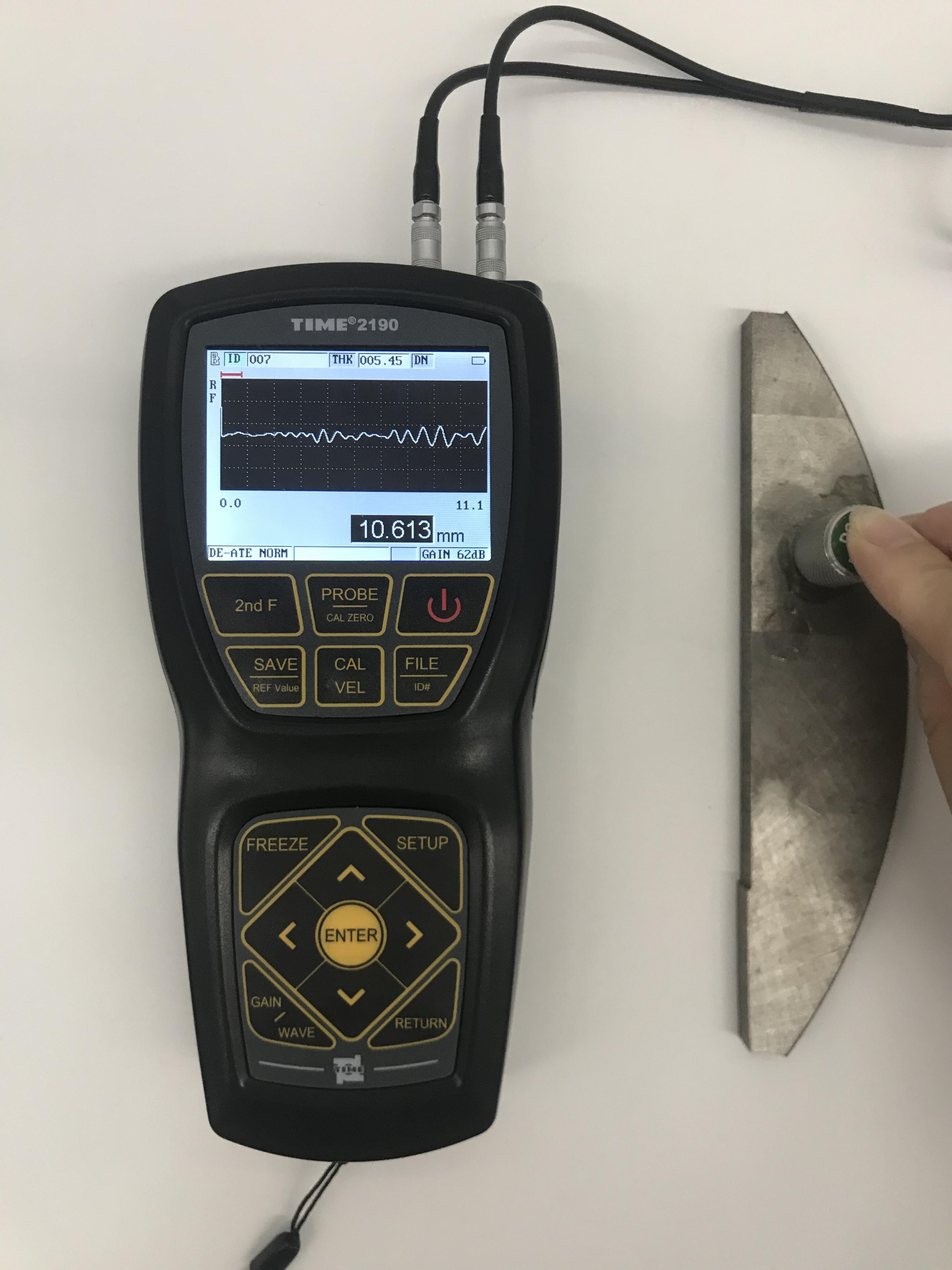

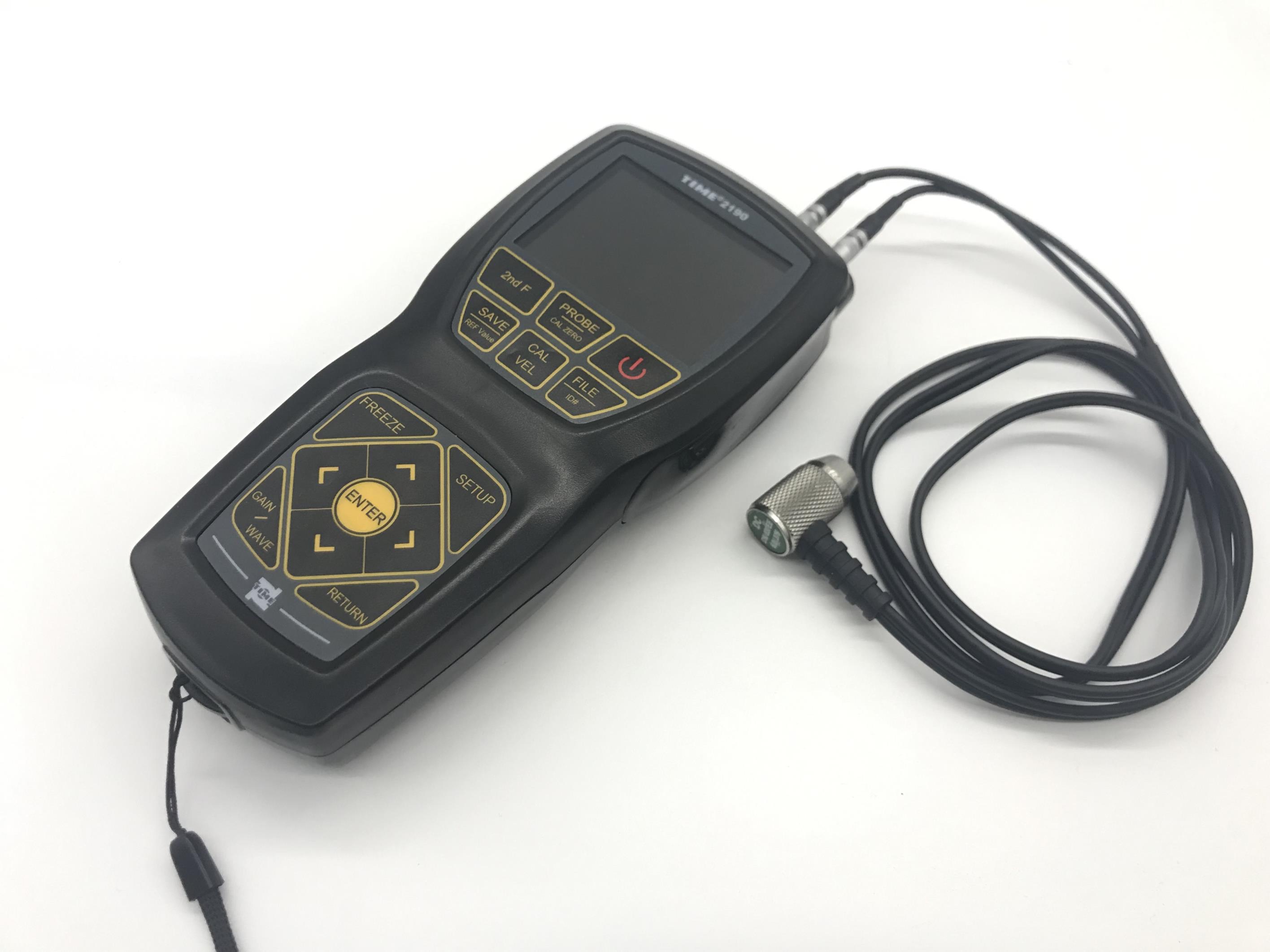

Ultrasonic Thickness Gauge with A/B Scan
This ultrasonic thickness gauge is designed for measuring the thickness of materials using ultrasonic technology. It features both A-scan and B-scan display modes for detailed analysis and precise measurements.
Technical Specifications
Overview
Advanced Ultrasonic Inspection
This portable ultrasonic thickness gauge is engineered for precision wall thickness and corrosion assessment across critical industries like shipbuilding, energy, and aerospace. Featuring advanced A-scan and B-scan capabilities, it provides detailed visualizations for complex material analysis. With multiple testing modes and high-accuracy measurement, it offers a robust solution for quality control and maintenance inspections.
Measurement Capabilities
Measuring Range
0.25 mm
Minimum
500 mm
Maximum
- Testing Modes
- I-ET-EE-E (with coating)
- Sound Velocity Range
- 508 m/s – 18699 m/s
Technical Specifications
Display Resolution
- 0.001 mm
- 0.01 mm
- 0.1 mm
- Display
- 320x240 Color LCD
- Weight
- 360 g
- Operating Temperature
- 0~40°C
Data & Connectivity
Connectivity
WIFIUSBTF Card
- Storage Capacity
- 500 files (1000 data/waveforms per file)
Power
- Power Source
- 3 x AA Batteries
Applications
Suitable Industries
| Industry Sector |
|---|
| Metallurgy & Shipbuilding |
| Chemical & Petroleum |
| Aerospace & Aviation |
| Electric Power & Nuclear |
| Boiler & Pressure Vessel Inspection |
