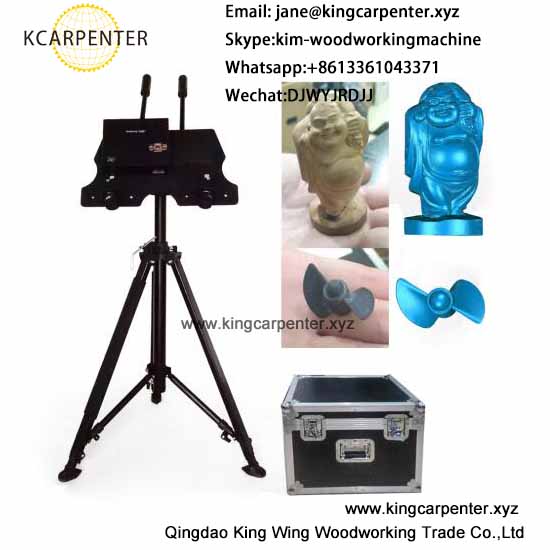

5MP Metal Mold 3D Scanner

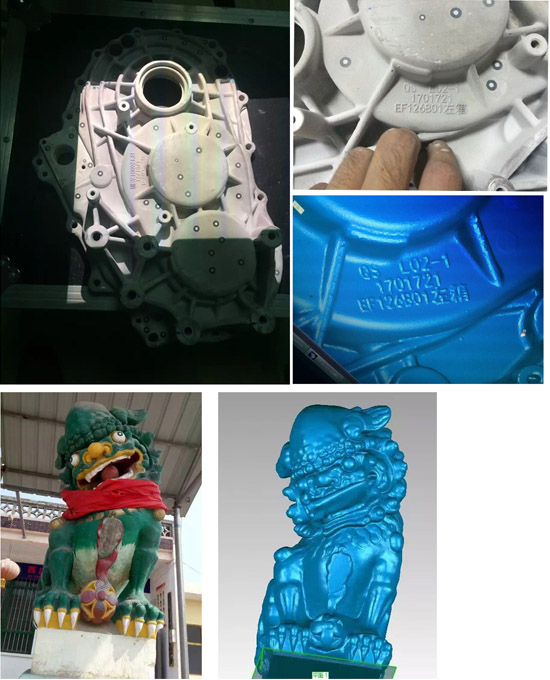

This high-precision 3D scanner is designed for metal mold digitization and inspection. It features a 5 million pixel camera to capture detailed geometries.
Technical Specifications
Overview
High-Precision 3D Scanning Solution
The KC3D-200 is a professional-grade, non-touch 3D scanner utilizing advanced projection grating and multifrequency phase shift technology. Designed for versatility, it captures complex geometries with high precision, making it an ideal tool for reverse engineering, quality control, and rapid prototyping. Its compact, portable design ensures reliable performance across diverse industrial environments.
Performance Metrics
Measurement Precision
0.01 mm
Min Precision
0.05 mm
Max Precision
- Scan Speed
- < 5 seconds
- Sampling Point Distance
- 0.06mm - 0.47mm
Technical Specifications
- Camera Resolution
- 5 Million Pixels
- Scan Size
- 200 x 150 mm
- Object Size Capacity
- 0 - 2000 mm
- Camera Angles
- 18°27°32.5°
- Industrial Lens
- 25mm High-Definition
System Requirements
- Operating System
- Windows 7 (64-bit)Windows 10
- Recommended Memory
- 8GB - 16GB
- Power Supply
- 100-240V AC
- Operating Temperature
- 0-40
- Weight
- 28 kg
Compatibility & Output
Stitching Method
AutomaticManual
- Supported Output Formats
- ASCSTLPLYIGES
