Railway Wheel Profile Monitoring System
This system monitors railway wheel profile parameters using lasers and cameras as trains pass. It detects wheel defects and wear in real-time for proactive maintenance.
Technical Specifications
Overview
Real-time Wheel Profile Monitoring

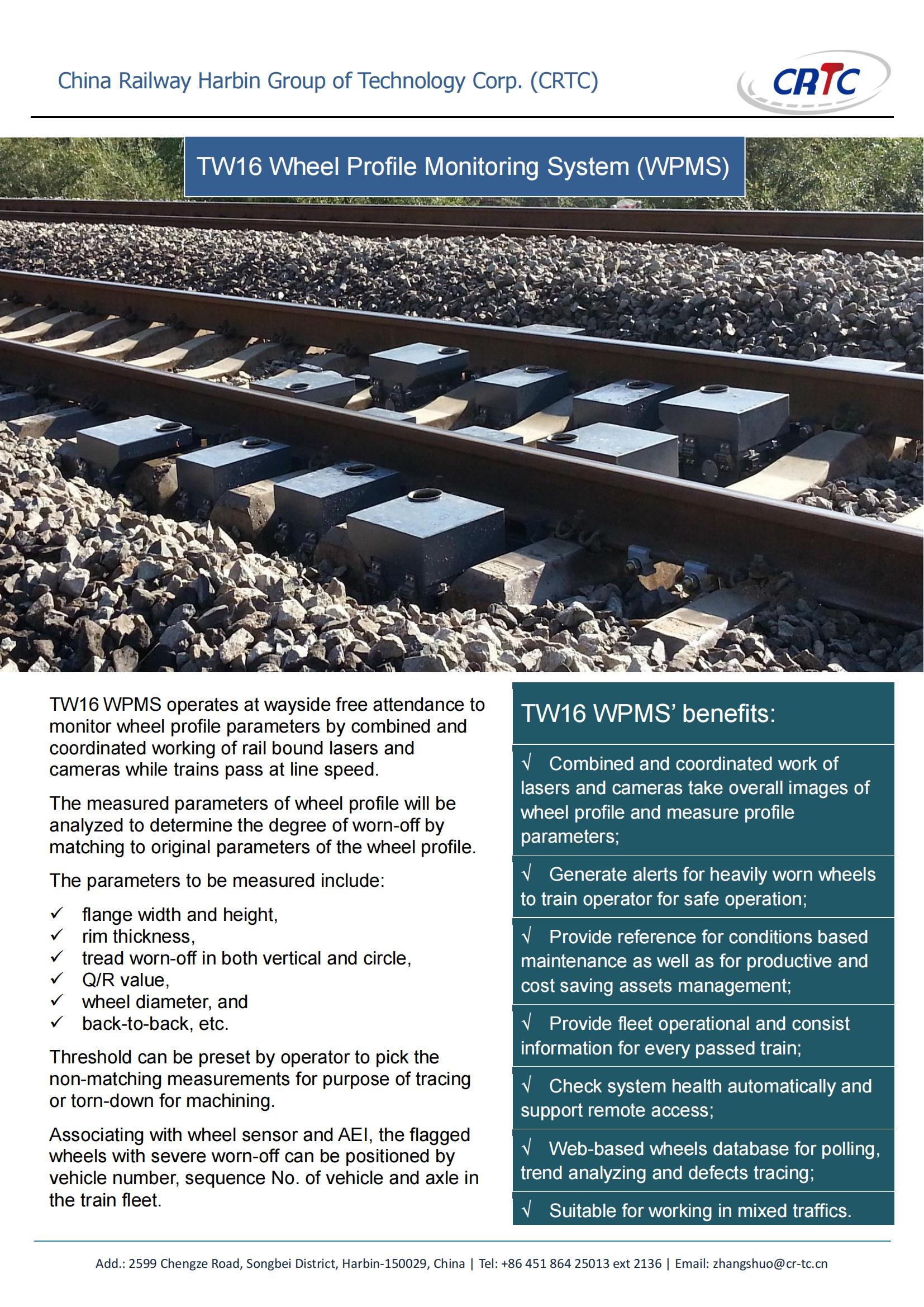

The TW16 Wheel Profile Monitoring System (WPMS) provides wayside, free-attendance monitoring of wheel profile parameters for trains passing at line speed. By utilizing coordinated rail-bound laser and camera technology, the system accurately captures vital wheel data to determine wear patterns and identify anomalies. This enables proactive, condition-based maintenance, helping to enhance railway operational safety, optimize maintenance schedules, and reduce overall costs for mixed-traffic environments.
Performance
Measurement Parameters

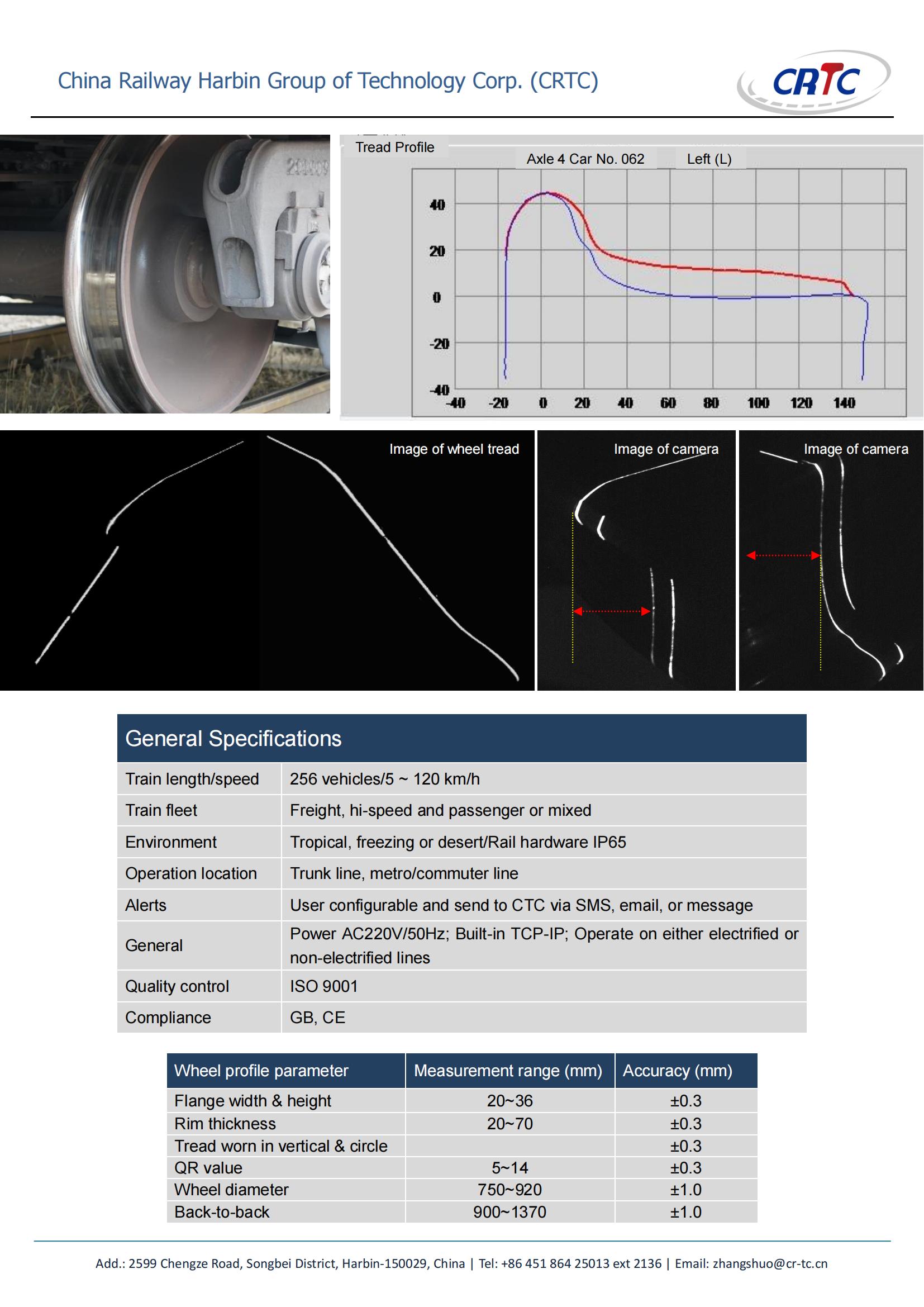

| Parameter | Range (mm) | Accuracy (mm) |
|---|---|---|
| Flange width & height | 20~36 | ±0.3 |
| Rim thickness | 20~70 | ±0.3 |

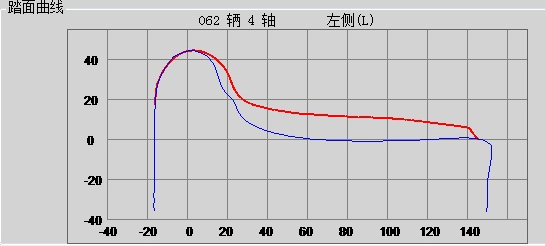

| Tread wear (vertical/circle) | - | ±0.3 |
| QR value | 5~14 | ±0.3 |
| Wheel diameter | 750~920 | ±1.0 |
| Back-to-back distance | 900~1370 | ±1.0 |
Supported Speed
5 km/h
Min Speed
120 km/h
Max Speed
Compatibility
- Applicable Train Types
- FreightHigh-speedPassengerMixed Traffic
System
Environmental Resilience
- Tropical environments
- Freezing environments
- Desert environments
- Rail hardware IP65 protection
Connectivity & Power
- AC220V/50Hz power supply
- Built-in TCP-IP
- Electrified line compatible
- Non-electrified line compatible
Compliance & Quality
ISO 9001GB ComplianceCE Certified
