Technical Specifications
Product Overview

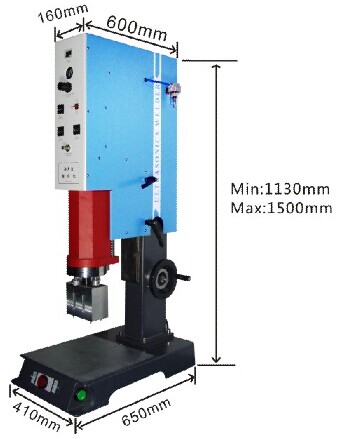

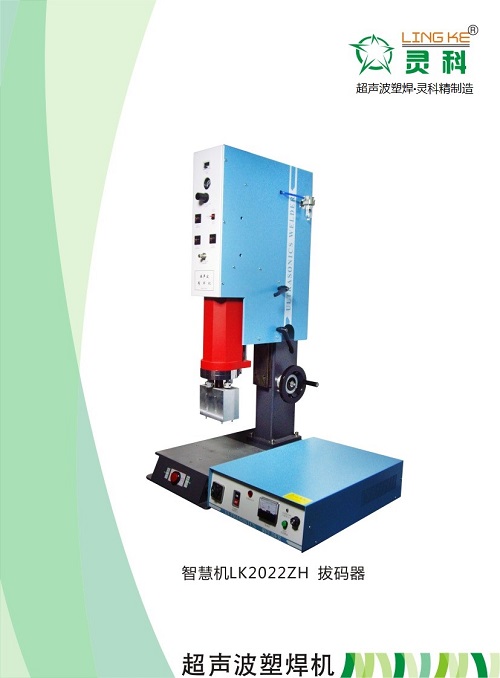

Industrial Ultrasonic Plastic Welder
This high-frequency ultrasonic plastic welding machine is engineered for precision and durability in industrial environments. Utilizing a 15KHz frequency and output power options of 2800W or 3200W, it ensures robust, clean, and strong joints without the need for adhesives. The machine features an adjustable horizontal mesa and a swallow-tail trough design for maximum precision and stability during operation.
Technical Specifications
Performance Metrics
15 KHz
Frequency
3,200 W
Max Power
3,000 N
Max Force
Operating Specs
| Parameter | Value |
|---|---|
| Welding Time | 0.1 - 9 Seconds |
| Welding Area | 90 - 250 mm |
| Operation Mode | Time welding |
| Power Supply | 220V/110V 50Hz |
| Weight | 150 KG |
Key Features
Service Commitment
- 12-month warranty
- Lifelong technical support
- Professional after-sale service team
- Build Construction
- Titanium/Magnesium Alloy HornAutomatic Overload ProtectionAdjustable Horizontal MesaDigital Generator Display
