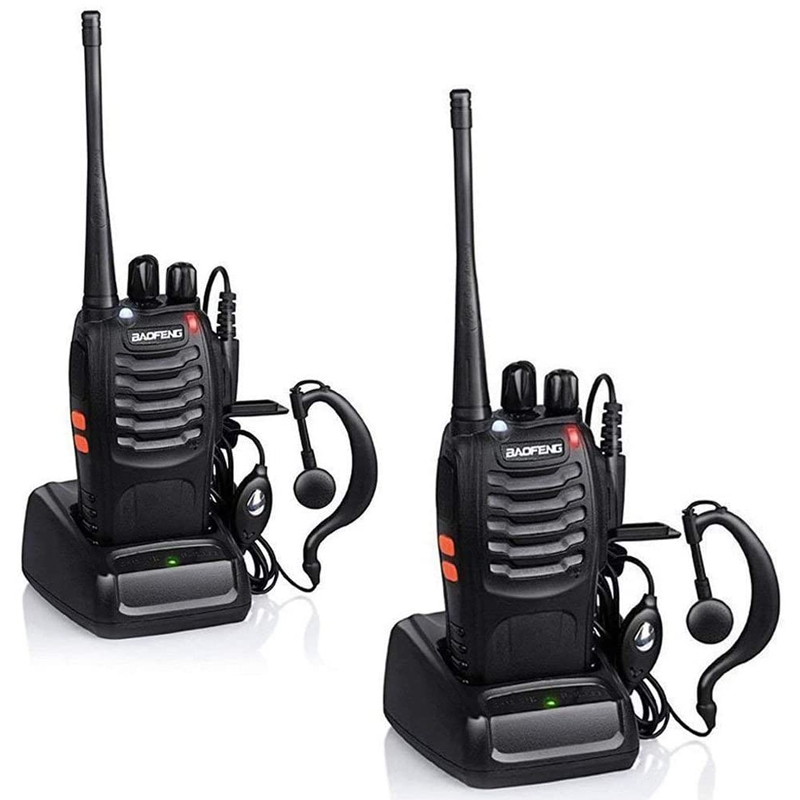

UHF Two-Way Radio Walkie Talkie
This is a portable UHF two-way radio walkie talkie with a frequency range of 400-470MHz and a power output of 5 Watts. It is designed for professional use, offering long-range communication capabilities.
Technical Specifications
Overview
Professional UHF Portable Radio
This professional 5-watt walkie talkie is designed for reliable long-range communication across various environments including construction sites, security operations, and group travel. Featuring a compact and ergonomic design, it provides clear real-time voice transmission with a range of up to 5km. The device is equipped with essential features like an emergency alarm, VOX hands-free function, and a built-in flashlight to ensure safety and efficiency in the field.
Key Performance
Performance Highlights
5 W
Rated Power
16
Channels
5 km
Max Range
Technical Specifications
- Frequency Range
- UHF 400-470MHz
- Channel Spacing
- 25 KHz
- Frequency Stability
- ±2.5ppm
- Antenna Impedance
- 50 Ω
Power & Battery
- Battery Capacity
- 1500 mAh
- Battery Type
- Li-ion
- Operating Time
- About 8 hours (5-5-90 duty cycle)
- Operating Voltage
- 3.7 V
Features
Signaling Support
- 50 CTCSS
- 105 CDCSS
- Core Functions
- VOX FunctionEmergency AlarmPC ProgrammingBattery SaveLow Voltage AlertTime-out TimerFlashlightVoice Prompt
Physical Properties
- Dimensions (L*W*H)
- 60 x 33 x 115 mm
- Weight
- 180 g
- Operating Temperature
- -30°C to +60°C
Compatibility
Interface & Compatibility
| Component | Compatibility Type |
|---|---|
| Antenna | SMA-Female |
| Earpiece/Cable | K-plug |
