Truck Mounted Concrete Sprayer
The truck mounted concrete sprayer is electrically operated and built into the engineering chassis. It has a maximum boom reach of 15.8 m and a theoretical capacity of 30 m3/h.
Technical Specifications
Overview
High-Performance Concrete Sprayer

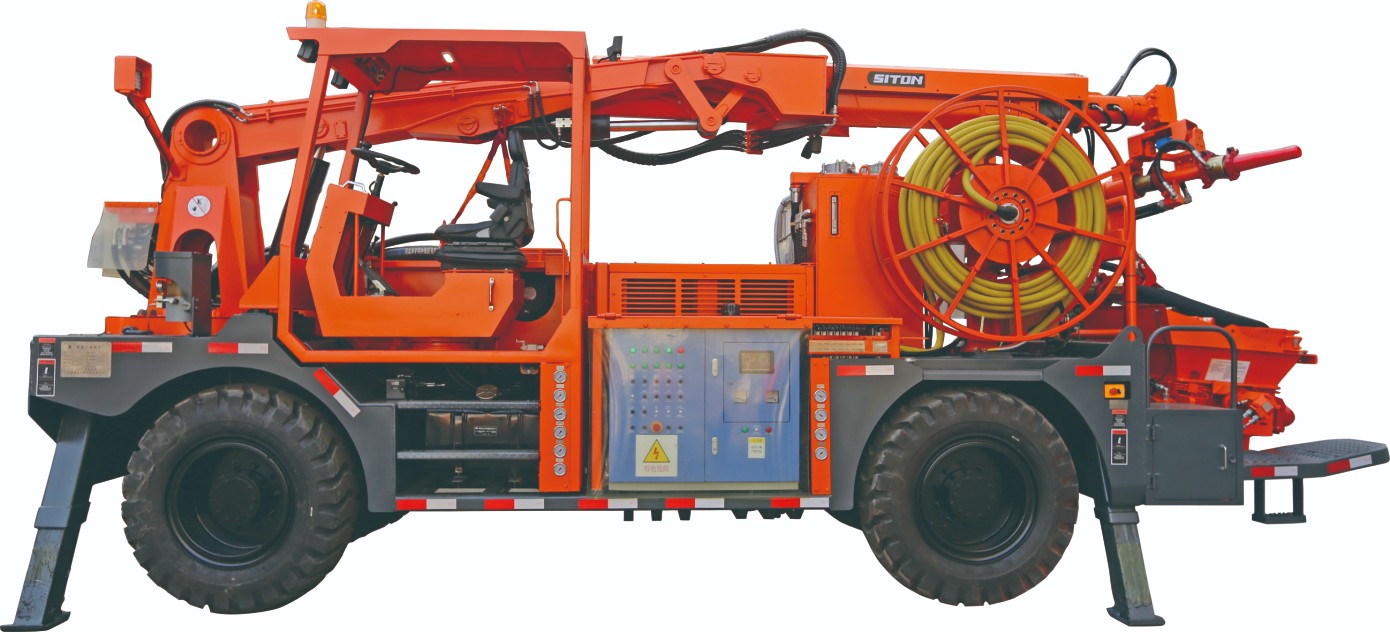

This truck-mounted concrete sprayer is engineered for high-efficiency shotcrete application in demanding environments like tunnel construction and slope stabilization. It features a powerful 75kW diesel engine, a robust 4WD chassis for site mobility, and a versatile robotic arm with 360-degree nozzle rotation. Designed for precision, the unit includes wireless remote control operation and a high-capacity additive system to ensure consistent, reliable performance on every project.
Performance Metrics
Key Performance Metrics
30 m3/h
Max Output
15.8 m
Spray Height
25 m
Spray Width
24 Mpa
Working Pressure
Chassis & Mobility
Chassis Specifications
| Parameter | Value |
|---|---|
| Gross Weight | 16700 kg |
| Wheelbase | 3900 mm |
| Drive Mode | 4WD |
| Max Speed | 20 km/h |
| Max Slope | 20 ° |
| Min Ground Clearance | 300 mm |
Operating System
Robotic Arm Range
- Working arm pitch angle: 0-70°
- Small arm pitch angle: 0-110°
- Small arm extension: 4600 mm
- Working arm rotation: 270°
- Nozzle rotation: 360°
Engine & Power
- Engine Details
- YuChai YCD4J23T8-100A (74 kW)
- Total Power
- 75 kW
Pump System
Pump System Specs
- Max conversions: 24 times/min
- Outlet pressure: ≤7.5 Mpa
- Cylinder diameter/stroke: Φ160×1000 mm
- Concrete pipe diameter: Φ125-Φ90 mm
- Nozzle diameter: Φ50 mm
Additive System
Additive System
- Max additive output: 500 L/h
- Additive working pressure: 0.8 Mpa
- Accelerator Tank Capacity: 1000 L
- Accelerator Model: BALFLEX20
Operation
Control Mode
Wireless Remote Control
