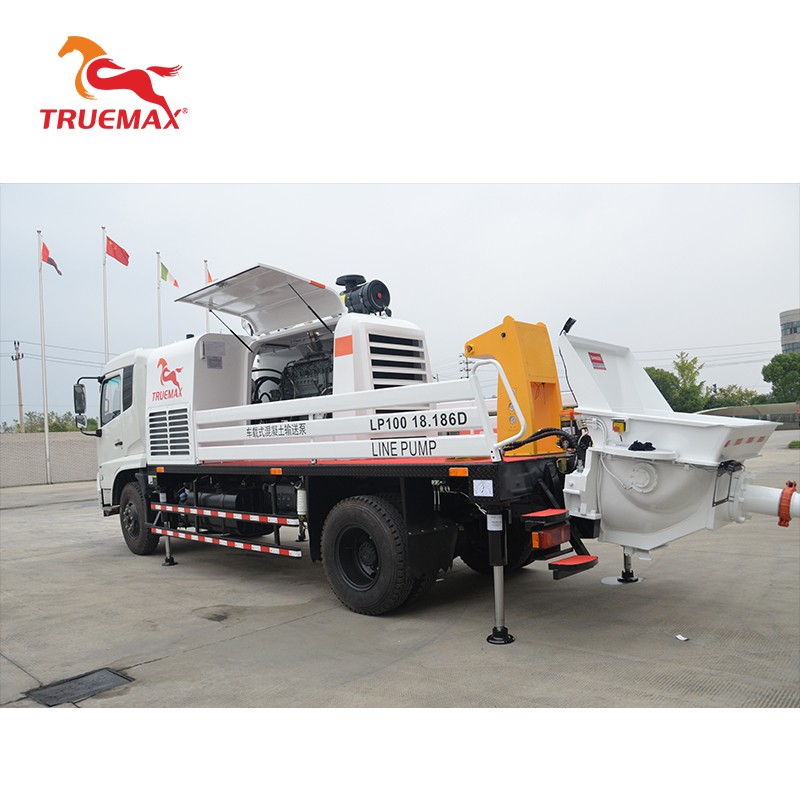

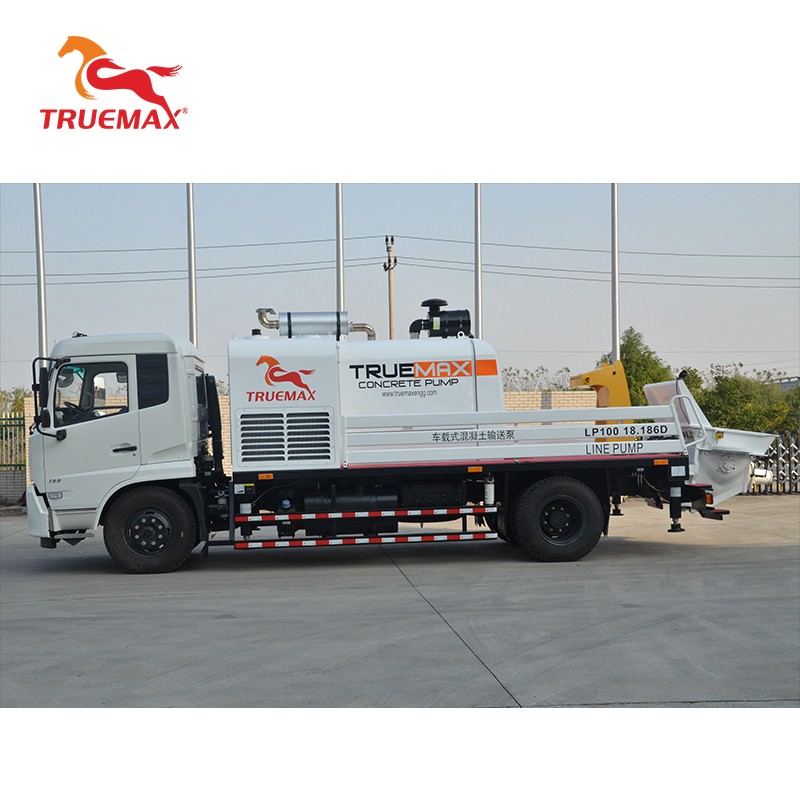

Truck-Mounted Concrete Line Pump
This truck-mounted concrete line pump is designed for efficient and reliable concrete delivery. It features a robust pumping system and a truck chassis for easy transportation and maneuverability.
Technical Specifications
Product Overview
High-Performance Truck-Mounted Concrete Line Pump
This truck-mounted concrete line pump is engineered for efficient, versatile, and precise concrete delivery across various construction sites. Featuring a robust pumping system and intelligent control technology, it offers reliable performance for projects ranging from residential to infrastructure development. The unit is designed for ease of operation, maintenance, and mobility, ensuring high productivity and minimal downtime on the job.
Performance Metrics
Max Theoretical Output (Low/High)
100 m³/h
Low Pressure
55 m³/h
High Pressure
Max Concrete Pressure (Low/High)
9 MPa
Low Pressure
18 MPa
High Pressure
Technical Specifications
- Concrete Cylinder (Bore x Stroke)
- 230 x 1800 mm
- Hopper Capacity & Feeding Height
- 0.7 m³ / 1460 mm
- Outlet Diameter
- DN 150
- Distribution Valve
- S Valve
Power & Hydraulics
- Rated Power
- 186 kW
- Rated Speed
- 2100 r/min

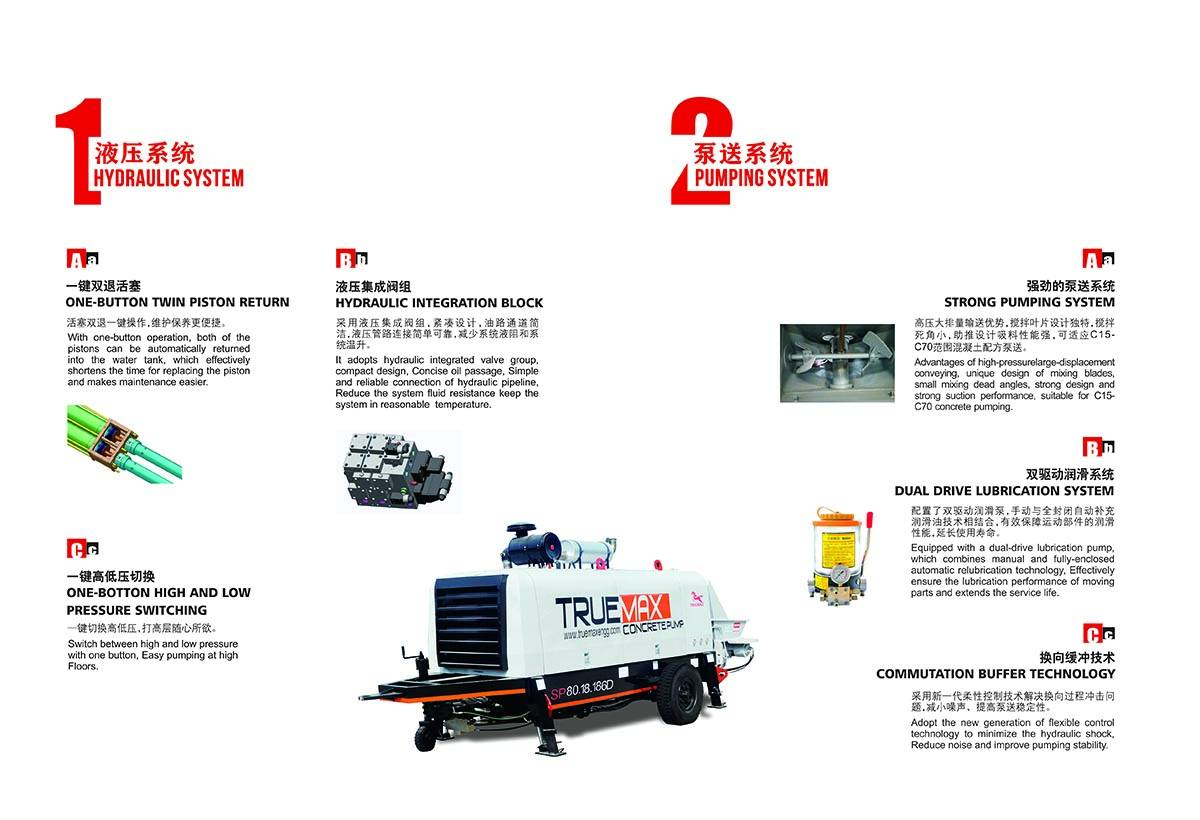

- Hydraulic System Features
- Open CircuitAir CoolingOne-Button Twin Piston ReturnHydraulic Integration Block
Dimensions & Chassis
- Chassis Configuration
- 4x2
- Overall Dimensions (L x W x H)
- 9200 x 2480 x 3270 mm
- Total Weight
- 13800 kg
Advanced Features
Key Technologies

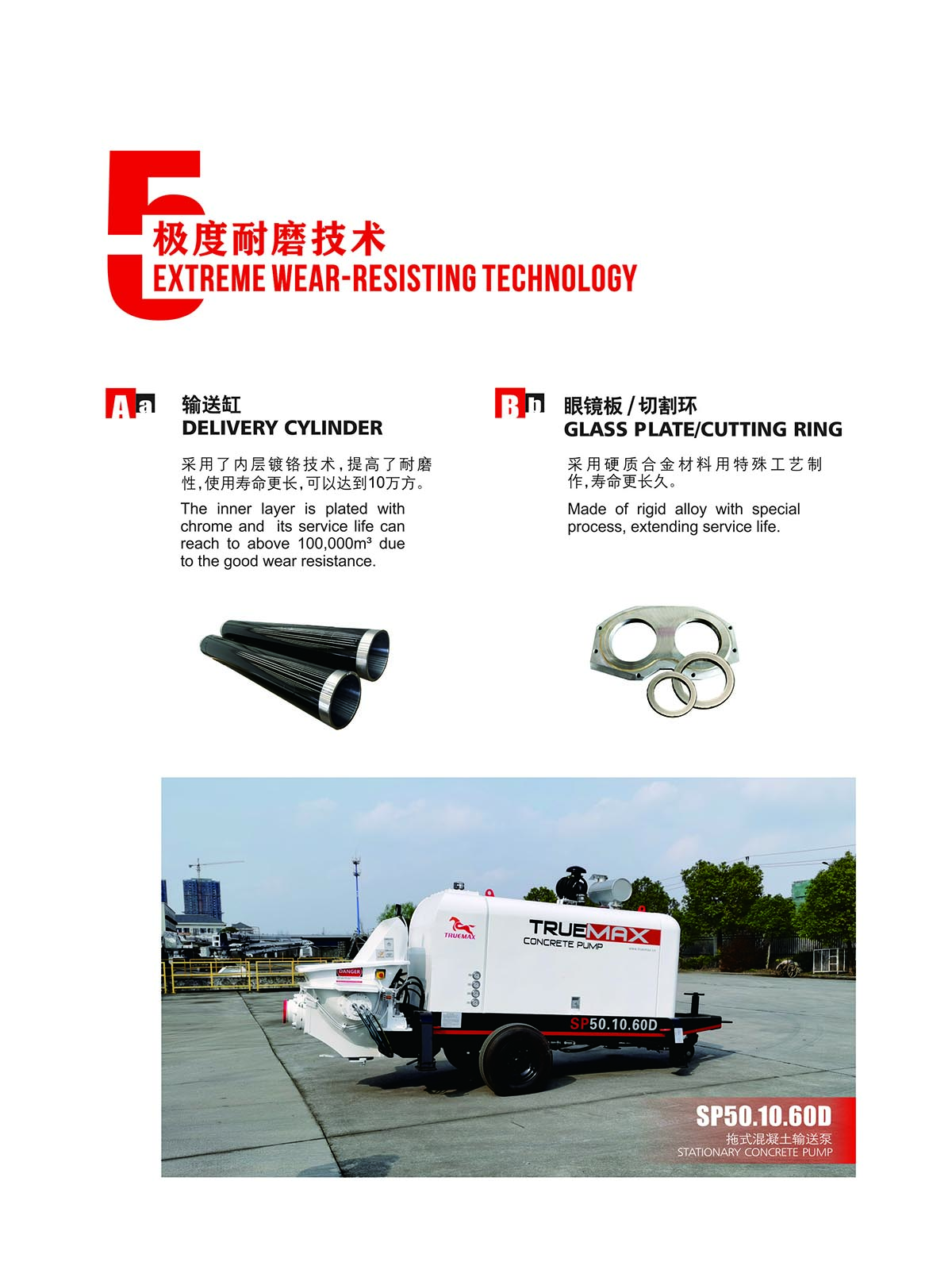

- Extreme wear-resisting delivery cylinder (inner layer chrome plated)

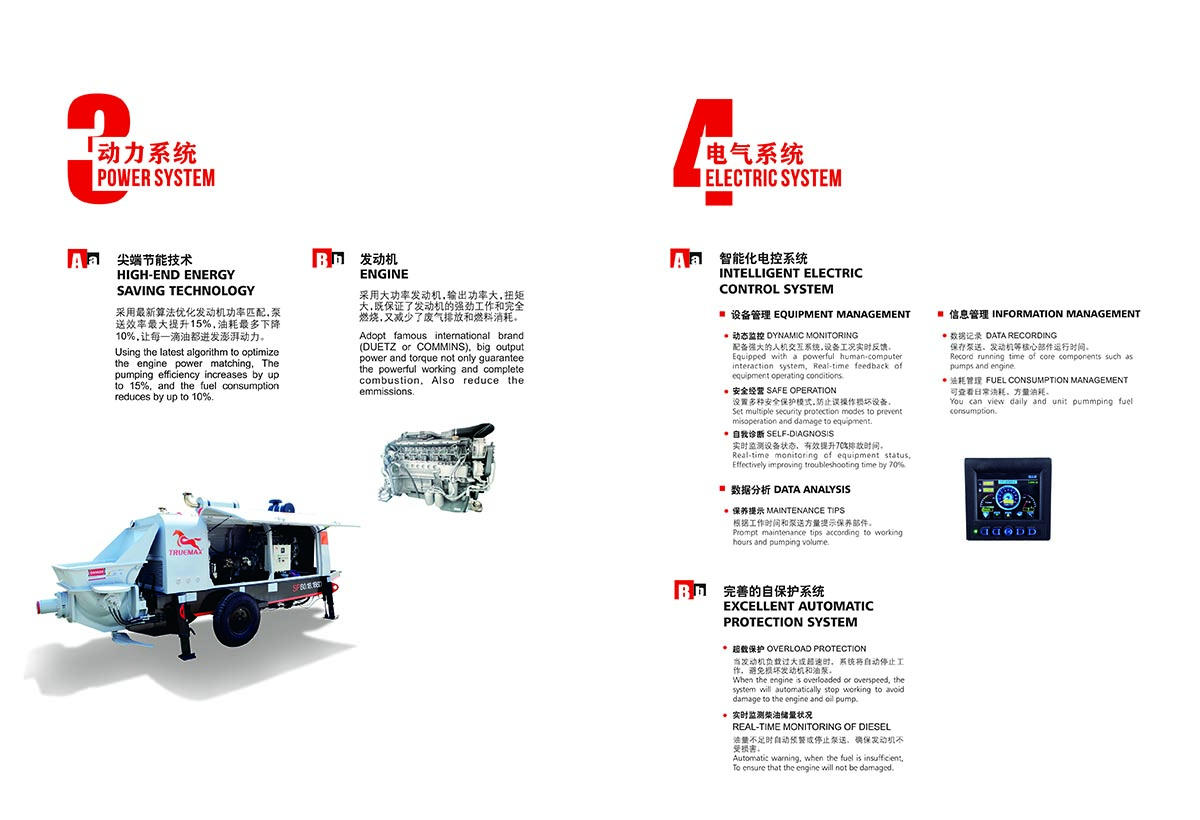

- High-end energy saving technology (up to 15% efficiency increase)
- Commutation buffer technology for reduced noise and stability
- Dual-drive lubrication system (manual and automatic)
- Intelligent electric control with self-diagnosis and data analysis
