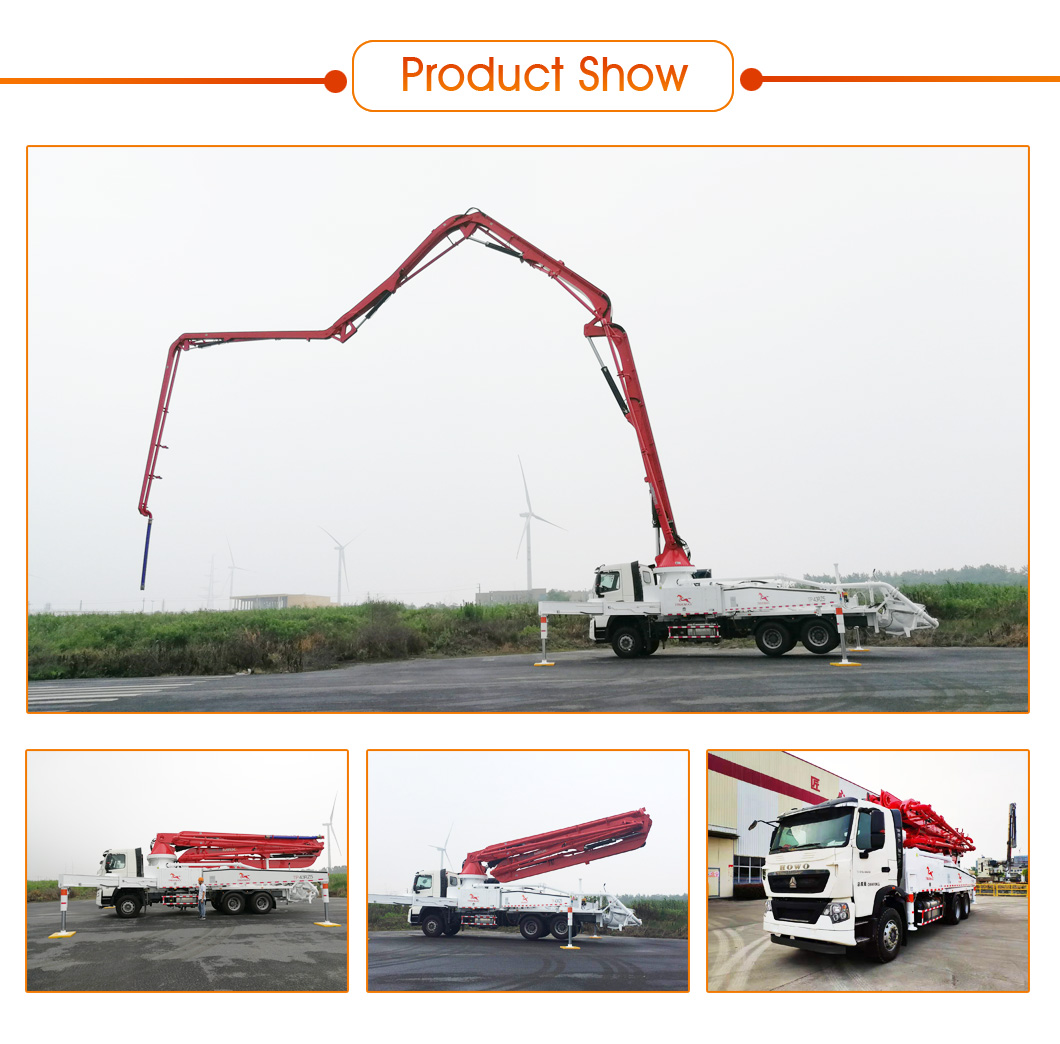

Truck Mounted Concrete Boom Pump
This truck-mounted concrete boom pump is designed for efficient and precise concrete placement. It features a robust boom with a reach of up to 62 meters, offering exceptional maneuverability.
Technical Specifications
Overview
High-Performance Concrete Boom Pump
The TP62RZ6 is a professional-grade truck-mounted concrete boom pump engineered for high-volume, precise concrete placement in demanding construction environments. With a vertical reach of 61.1 meters and a maximum output of 180 cubic meters per hour, it offers the performance required for large-scale infrastructure and high-rise building projects. The unit features advanced energy-saving technology, robust wear-resistant components, and comprehensive safety monitoring systems to ensure reliability, efficiency, and operator safety on-site.

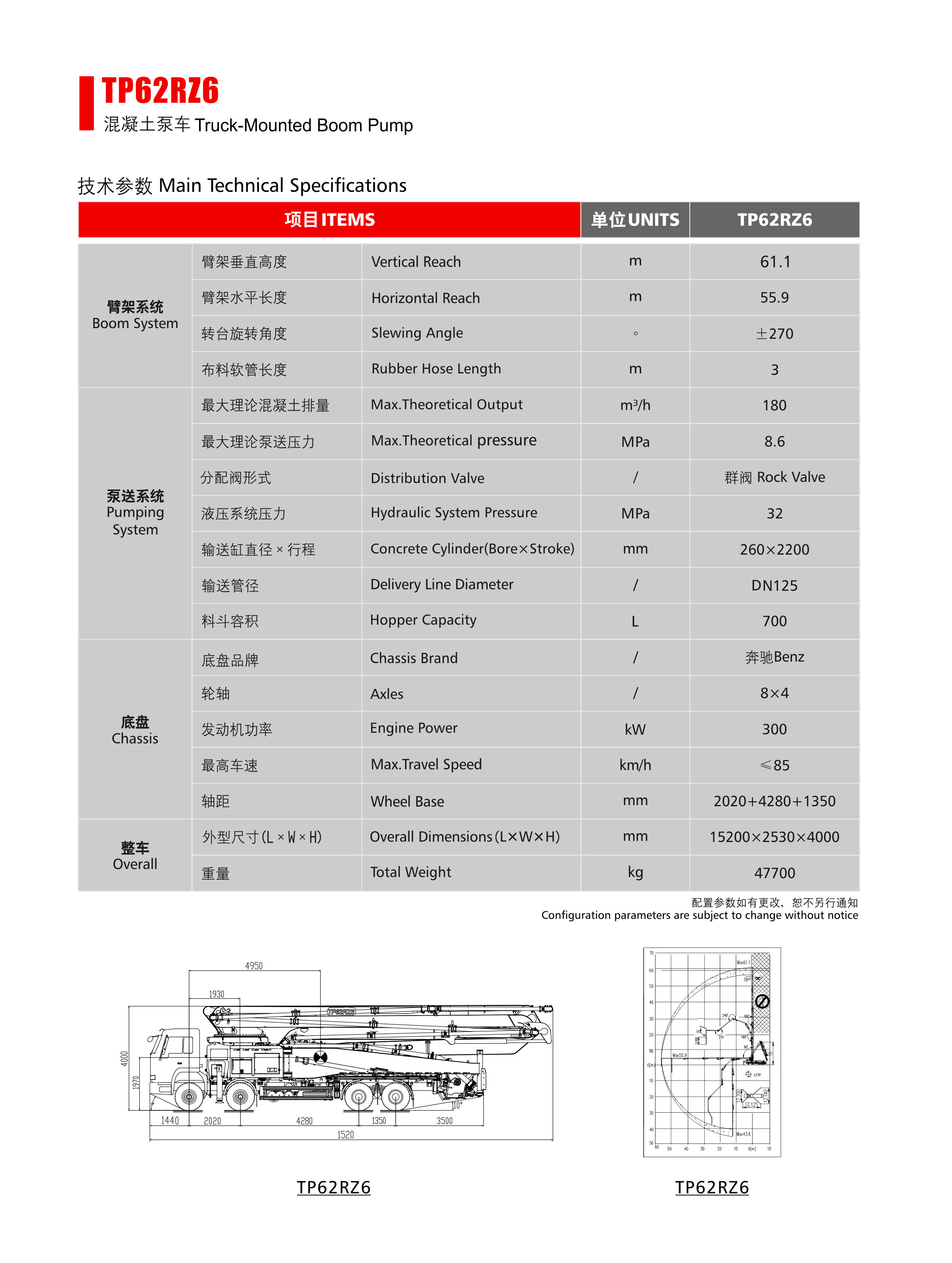

Technical Specifications
Key Performance Metrics
61.1 m
Vertical Reach
55.9 m
Horizontal Reach
180 m³/h
Max Theoretical Output
8.6 MPa
Max Theoretical Pressure
Chassis and Dimensions
| Feature | Value |
|---|---|
| Axles | 8x4 |
| Engine Power | 300 kW |
| Max Travel Speed | <85 km/h |
| Total Weight | 47700 kg |
| Overall Dimensions | 15200x2530x4000 mm |

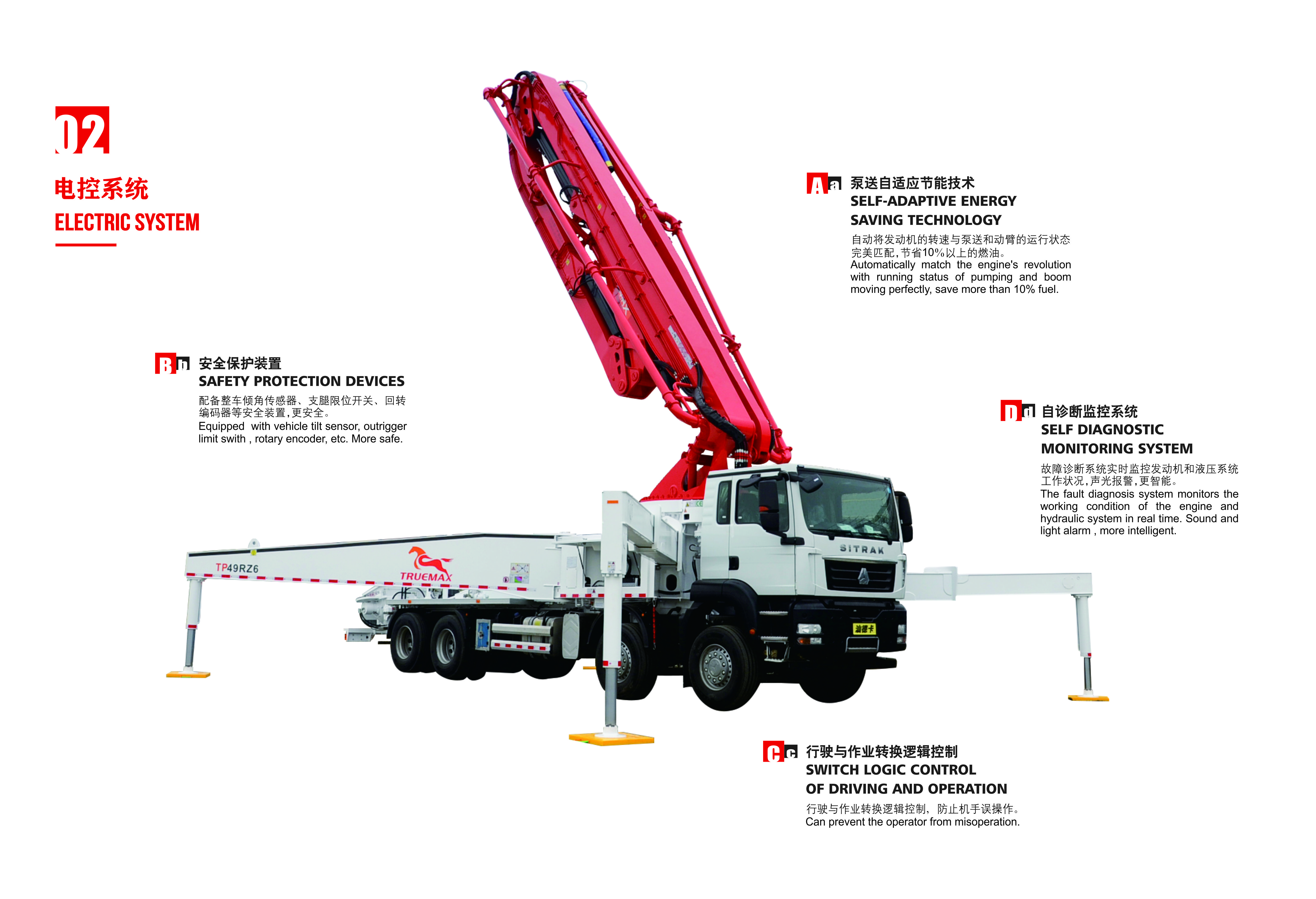

Features
Advanced Technologies
- Self-adaptive energy-saving pumping technology (10%+ fuel efficiency improvement)
- Boom anti-vibration technology reducing vibration amplitude by 50%
- One-button twin piston return system for easy maintenance
- Automatic pressure relief for swing cylinders
- Integrated fault diagnosis and real-time monitoring system
- Safety Systems
- Vehicle tilt sensorOutrigger limit switchRotary encoderCylinder locking functionEmergency sound/light alarms
