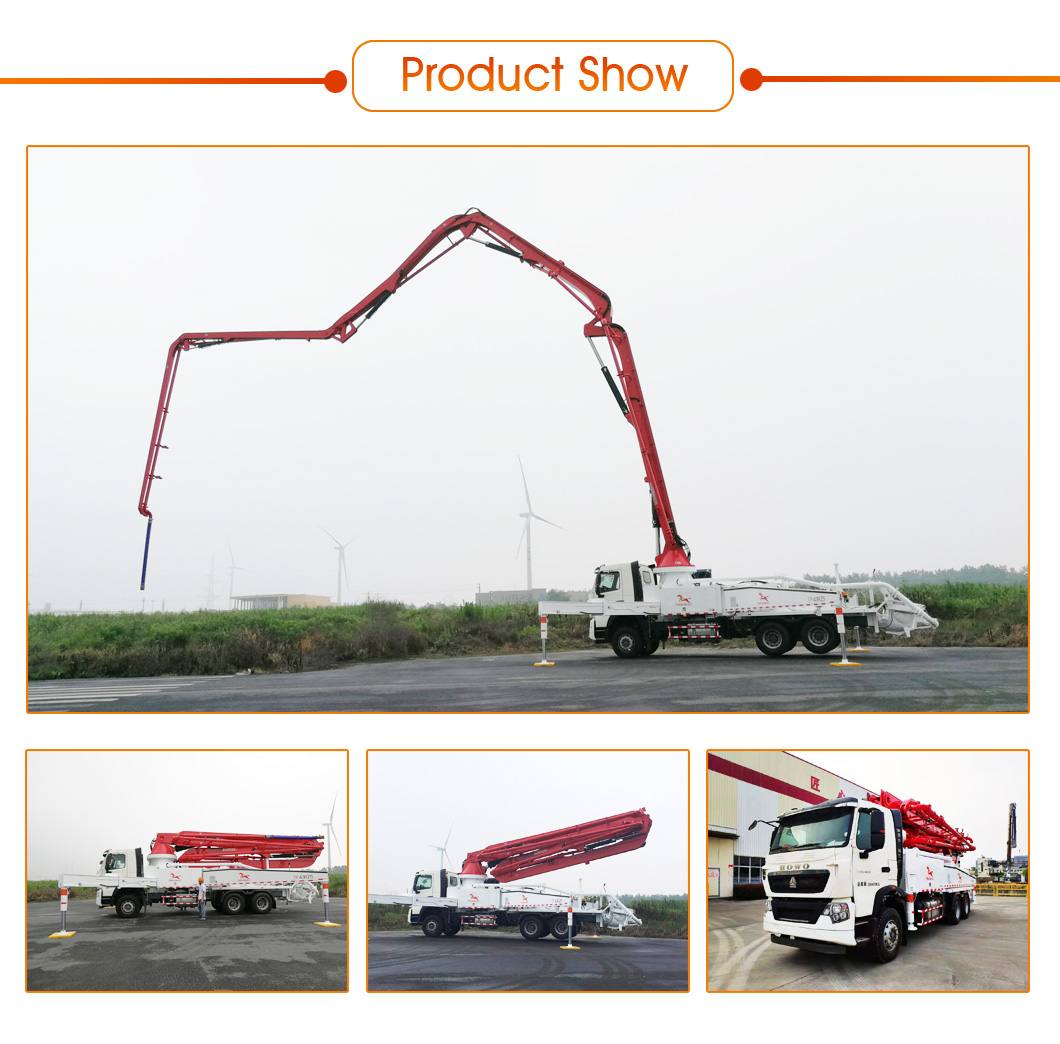

Truck Mounted Concrete Boom Pump, 49m Reach
This truck mounted concrete boom pump has a maximum reach of 49 meters. It is designed for high-volume output and consistent performance on demanding construction projects.
Technical Specifications
Product Overview
Versatile 49m Concrete Boom Pump
This truck-mounted concrete boom pump is engineered for high-performance concrete placement on complex construction sites. It features a robust 49-meter multi-section boom, providing exceptional vertical reach and precise delivery capabilities. Designed with advanced hydraulic and electronic control systems, it ensures smooth operation, enhanced safety, and significant fuel efficiency. The pump is built for high-volume output, making it an ideal solution for high-rise buildings, bridges, and large-scale infrastructure projects.
Key Performance Metrics
Operational Capabilities
49 m
Vertical Reach
150 m³/h
Max Low-Pressure Output
10.7 MPa
Max High-Pressure
700 L
Hopper Capacity
Technical Specifications
Detailed Technical Data
| Parameter | Value/Details |
|---|---|
| Horizontal Reach | 44 m |
| Slewing Angle | ±270 degrees |
| Distribution Valve | S Valve |
| Hydraulic Pressure | 32 MPa |
| Concrete Cylinder | 260mm x 1800mm |
| Delivery Line | DN125 |
Key Technologies
Advanced System Features
- Boom anti-vibration technology reducing vibration by 50%
- Self-adaptive energy-saving technology saving over 10% fuel
- Swing cylinder automatic pressure relief system
- One-button high/low pressure switching
- Intelligent self-diagnostic monitoring system
Construction & Safety
- Operational Safety & Durability
- Vehicle tilt sensorOutrigger limit switchRotary encoderEmergency stop mechanismDouble-layer wear-resistant elbows
