Truck Mounted Concrete Boom Pump, 38m Reach

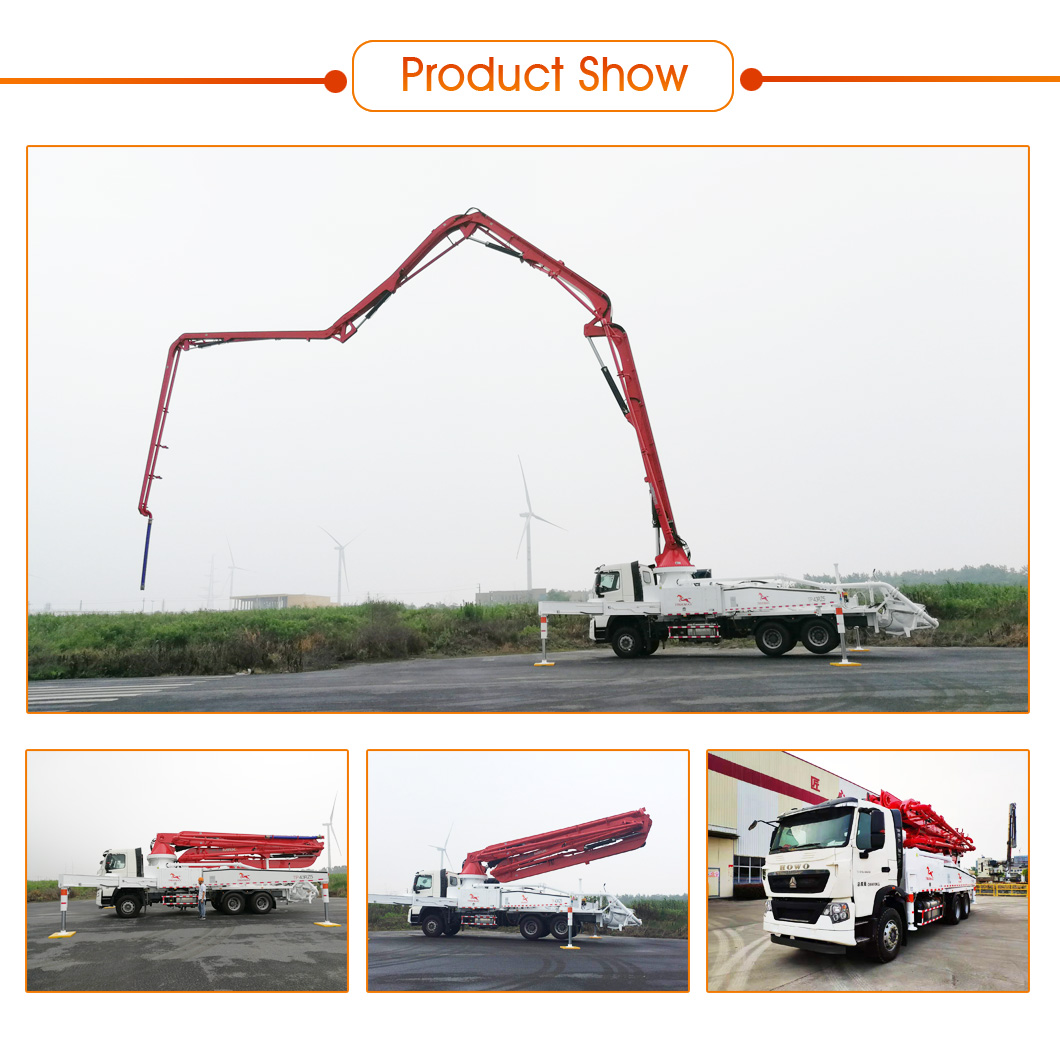

This truck-mounted concrete boom pump features a robust chassis for stability and a multi-section boom for extensive reach. The pump unit delivers high-volume output with consistent pressure, ensuring efficient concrete delivery.
Technical Specifications
Overview
High-Efficiency Concrete Placement

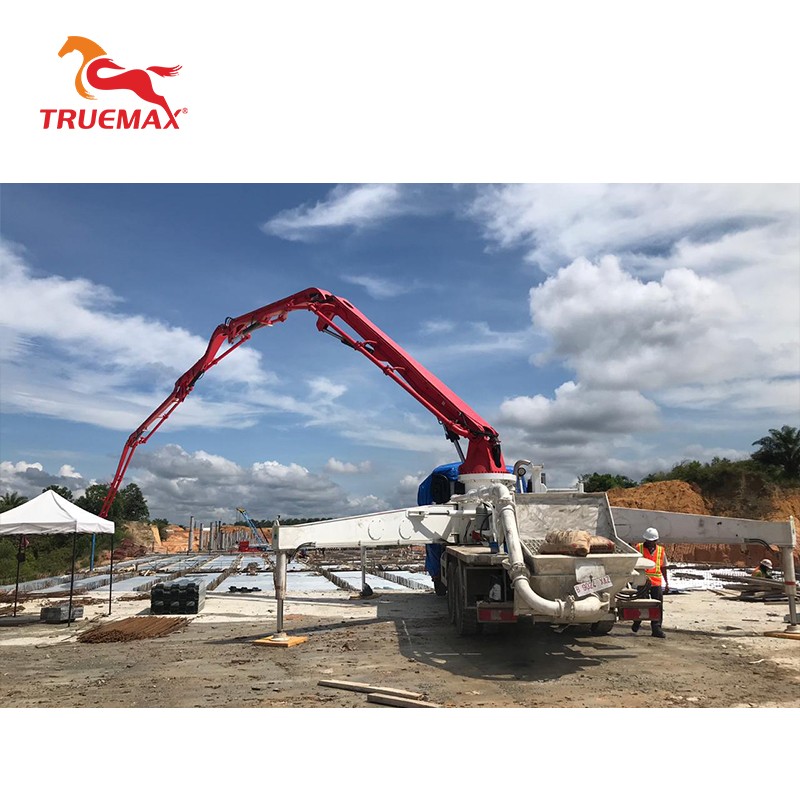

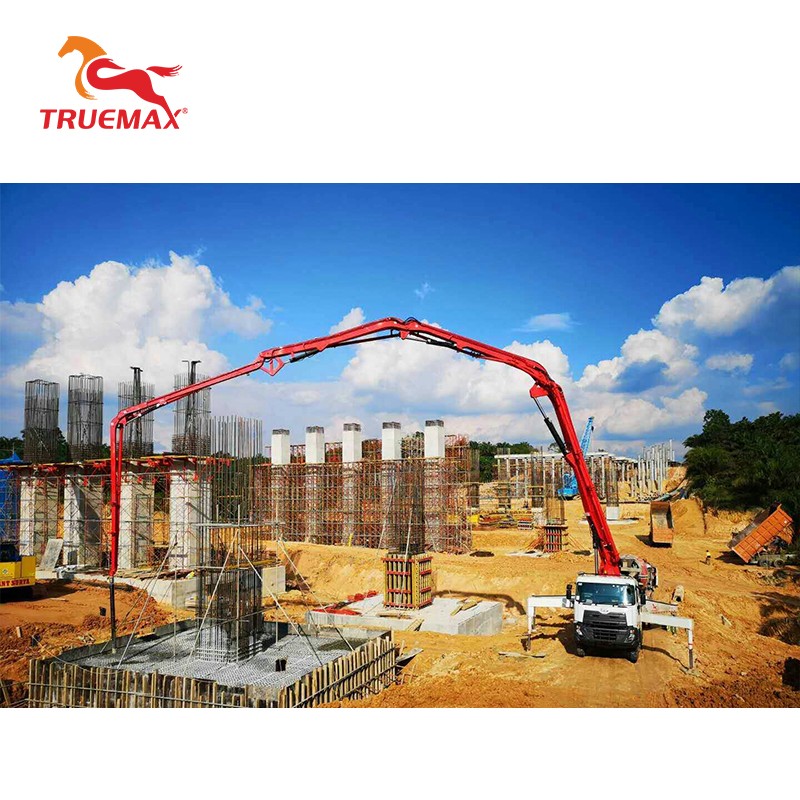

The TP38RZ5 is a robust truck-mounted concrete boom pump engineered for precision and reliability in diverse construction environments. With a 38-meter vertical reach, it is ideally suited for high-rise buildings, bridges, and infrastructure projects. The unit features advanced hydraulic systems and boom anti-vibration technology, ensuring both operator safety and high-quality concrete delivery through various site conditions.
Performance Metrics
Reach Capabilities
38 m
Vertical Reach
34 m
Horizontal Reach
Theoretical Output
| Pressure Mode | Max Output | Max Pressure |
|---|---|---|
| Low Pressure | 150 m³/h | 5.9 MPa |
| High Pressure | 85 m³/h | 10.7 MPa |
Technical Specifications
Core Mechanical Data
- Distribution Valve: S Valve
- Concrete Cylinder Bore: 260 mm
- Concrete Cylinder Stroke: 1800 mm
- Delivery Line Diameter: DN125
- Hopper Capacity: 700 L
- Slewing Angle: ±270°
Chassis & Mobility
- Axle Configuration: 6x4
- Engine Power: 297 kW
- Max Travel Speed: ≤90 km/h
- Wheelbase: 4800+1400 mm
- Total Weight: 29300 kg
Advanced Features
- Key Technology Highlights
- Boom Anti-Vibration TechnologySelf-Adaptive Energy SavingSwing Cylinder Auto-Pressure ReliefOne-Button Twin Piston ReturnFault Diagnosis Monitoring
