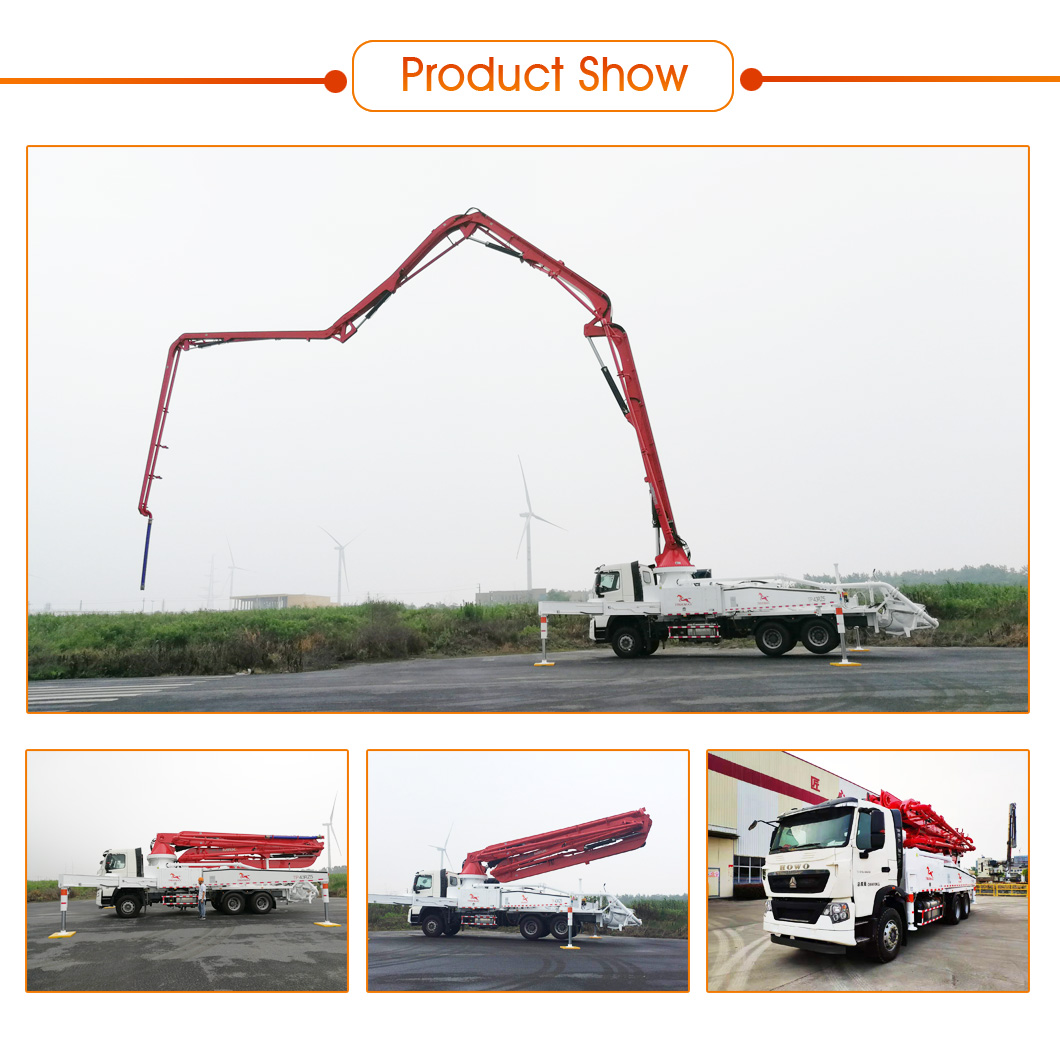

Truck Mounted Concrete Boom Pump
This truck-mounted concrete boom pump delivers concrete to elevated and hard-to-reach areas on construction sites. The equipment combines the mobility of a truck with the flexibility of a boom.
Technical Specifications
Overview

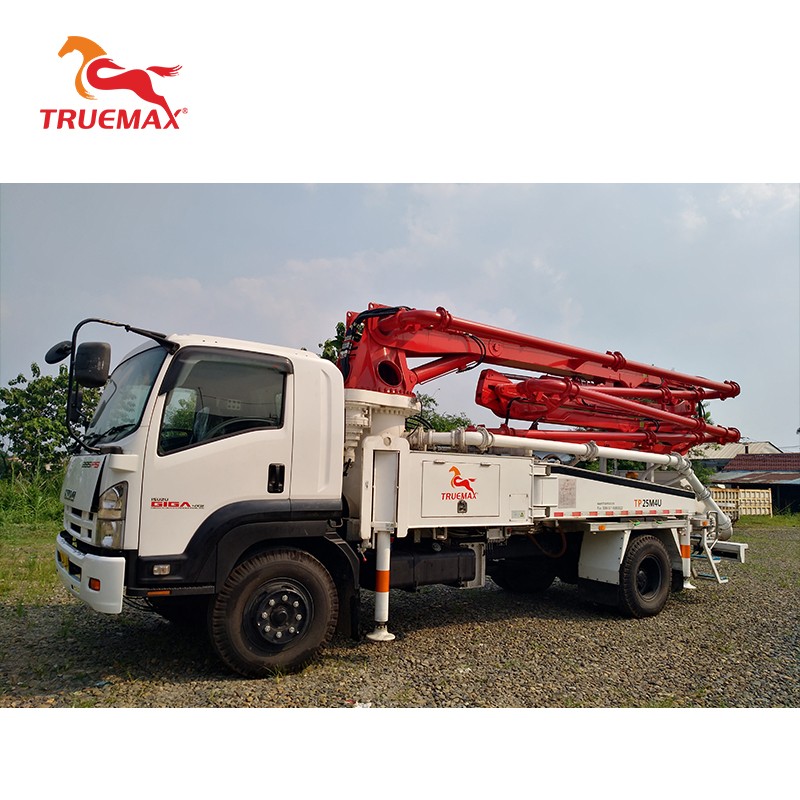

TP25M4 Truck-Mounted Boom Pump
The TP25M4 is a highly efficient truck-mounted boom pump engineered for precise concrete placement in residential, commercial, and infrastructure projects. Featuring a robust 25-meter boom reach and a high-performance pumping system capable of 100 m³/h, this unit ensures consistent concrete flow in even the most challenging job sites. Integrated with advanced features like boom anti-vibration technology and self-adaptive energy saving, it offers superior reliability and reduced operational costs for professional contractors.
Boom System
- Vertical Reach
- 24.2 m
- Horizontal Reach
- 20.6 m
- Slewing Angle
- ±360 degrees
Performance
Max. Theoretical Output
100 m³/h
Output Capacity
- Max. Theoretical Pressure
- 5.6 MPa
Hydraulic System
- Hydraulic System Pressure
- 32 MPa
Technical Specs
- Concrete Cylinder (Bore x Stroke)
- 260 x 1800 mm
- Delivery Line Diameter
- DN125
- Hopper Capacity
- 700 L
Chassis & Engine
- Axle Configuration
- 4x2
- Engine Power
- 210 kW
- Max. Travel Speed
- 100 km/h
Key Technologies
- Advanced Technologies
- Boom Anti-VibrationSelf-Adaptive Energy SavingAutomatic Pressure ReliefOne-Button Twin Piston ReturnExtreme Wear-Resistant Pipes
