Truck Mounted Concrete Boom Pump
The truck mounted concrete boom pump is designed for efficient and precise concrete placement in construction. It features a multi-section boom for extended reach and easy maneuverability.
Technical Specifications
Overview
High-Efficiency Concrete Placement
The TP56RZ6 is a professional-grade truck-mounted concrete boom pump engineered for high-rise and large-scale infrastructure projects. Featuring a robust 6-section boom system, it offers a vertical reach of 56 meters and excellent maneuverability for precise concrete delivery. Designed with advanced energy-saving and anti-vibration technologies, it ensures reliable, efficient, and safe operation for demanding construction environments.
Technical Specifications
Performance Metrics
56 m
Vertical Reach
51 m
Horizontal Reach
180 m³/h
Max Theoretical Output (Low Pressure)
12 MPa
Max Theoretical Pressure (High Pressure)
Pumping System Details
| Parameter | Value |
|---|---|
| Distribution Valve | S Valve |
| Hydraulic System Pressure | 32 MPa |
| Concrete Cylinder (Bore x Stroke) | 260x2100 mm |
| Delivery Line Diameter | DN125 |
| Hopper Capacity | 700 L |
Chassis and Dimensions
Dimensions and Weight
- Overall Dimensions: 13820 x 2550 x 4000 mm
- Total Weight: 44,000 kg
- Axle Configuration: 8x4
- Wheelbase: 1950 + 4500 + 1400 mm
Key Features

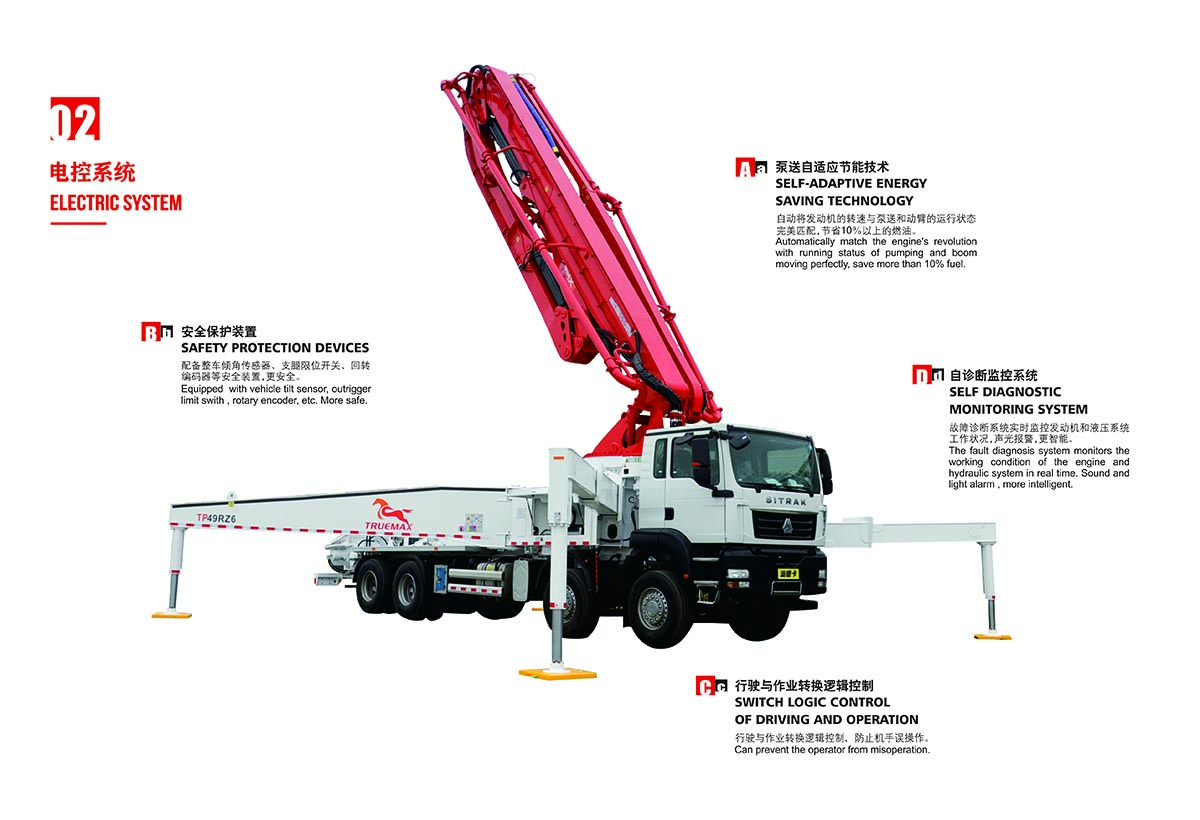

- Advanced Technologies
- Self-Adaptive Energy SavingBoom Anti-Vibration TechnologySelf-Diagnostic MonitoringSwing Cylinder Automatic ReliefOne-Button Twin Piston Return
Safety
Safety Systems
Vehicle Tilt SensorOutrigger Limit SwitchRotary EncoderCylinder Locking FunctionEmergency Stop Mechanism
