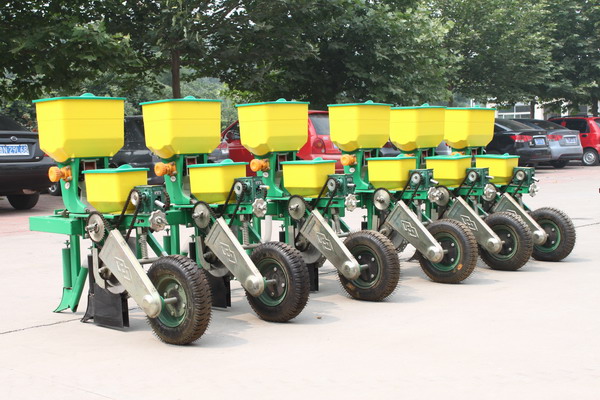

Tractor-Mounted Precision Seeder for Corn
This planter efficiently sows corn, soybeans, peanuts, and other crops while simultaneously applying fertilizer. Its mechanical gravity seed clearing system ensures uniform sowing and seedling distance without damaging the seeds.
Technical Specifications
Overview
Versatile Tractor-Mounted Precision Seeder
This precision planter is designed for wheel tractors to efficiently sow corn, soybeans, and peanuts while simultaneously applying fertilizer. It utilizes a mechanical gravity system to clear seeds without causing damage, ensuring uniform sowing amounts and stable seedling distances. Built for durability and reliability, it is an ideal solution for B2B agricultural operations looking to optimize germination and crop yield.
Key Features
Functional Capabilities
- Simultaneous sowing and fertilizing
- Mechanical gravity seed clearing (non-damaging)
- Uniform seedling distance control
- Adjustable planting depth
- Adjustable row spacing
- Supported Crops
- CornSoybeansPeanuts
Technical Specifications
Model Performance Specifications
| Model | Weight (kg) | Matched Power (hp) |
|---|---|---|
| 2BYCF-3 | 150 | 12-20 |
| 2BYCF-4 | 200 | 20-30 |
| 2BYCF-5 | 260 | 30-40 |
| 2BYCF-6 | 350 | 50-60 |
Sowing Depth
30 mm
Min Depth
50 mm
Max Depth
- Row Spacing Range
- 500-700 mm
Mechanical Design
Linkage System
Three-point mounted
- Compatible Machinery
- Wheeled Tractors
