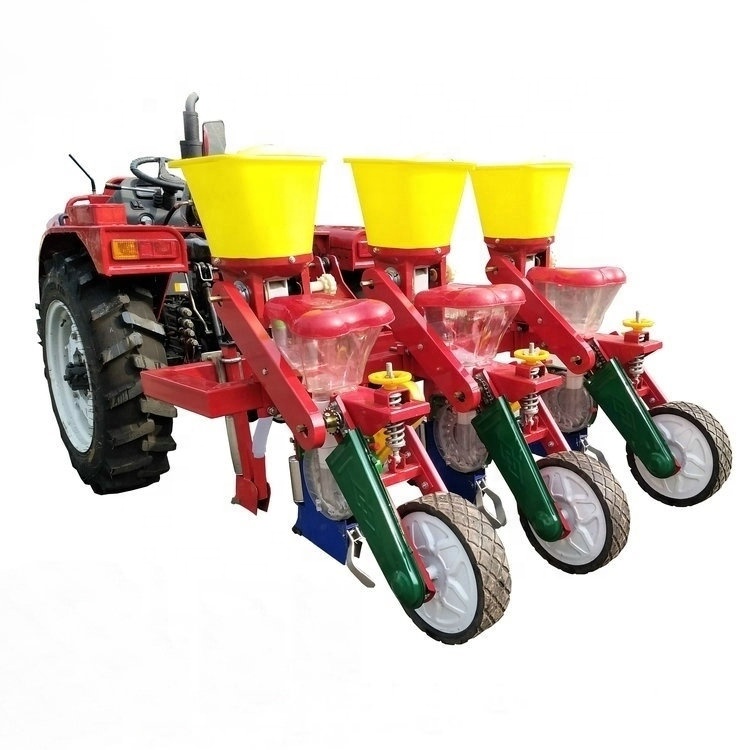

Tractor-Mounted Precision Corn Planter
This tractor-mounted corn planter precisely sows corn seeds, allowing users to select single or double seed planting. It is designed for 15-80hp tractors.
Technical Specifications
Product Overview
High-Efficiency Precision Corn Planting
This tractor-mounted precision planter is designed to revolutionize corn planting by offering single or double seed precision options. It streamlines the agricultural process by simultaneously furrowing, fertilizing, seeding, covering, and pressing in a single pass. Compatible with tractors ranging from 15 to 80hp, it significantly reduces seed waste while ensuring uniform crop emergence.
Key Advantages
Core Benefits
- Significant corn seed savings through precision metering
- High-accuracy single particle planting results
- Versatile planting options (one or two seeds per hole)
- Integrated crystalline granule fertilizer application
- Complete multi-stage operation: furrowing to pressing
Performance Metrics
Key Performance Metrics
50 mm
Min Working Depth
100 mm
Max Working Depth
15 hp
Min Matched Power
80 hp
Max Matched Power
Technical Specifications
Model Comparison & Technical Data
| Model | Seeding Rows | Matched Power (hp) | Total Weight (kg) |
|---|---|---|---|
| 2BGYF-2 | 2 | 15 | 140 |
| 2BGYF-3 | 3 | 20 | 185 |
| 2BGYF-4 | 4 | 30 | 245 |
| 2BGYF-5 | 5 | 40 | 310 |
| 2BGYF-6 | 6 | 50 | 370 |
| 2BGYF-7 | 7 | 60 | 470 |
Operational Parameters
Linkage System
Three-point suspension Type IThree-point suspension Type II
- Row Spacing Range
- 500 - 620 mm
- Planting Distance
- 120 - 320 mm
