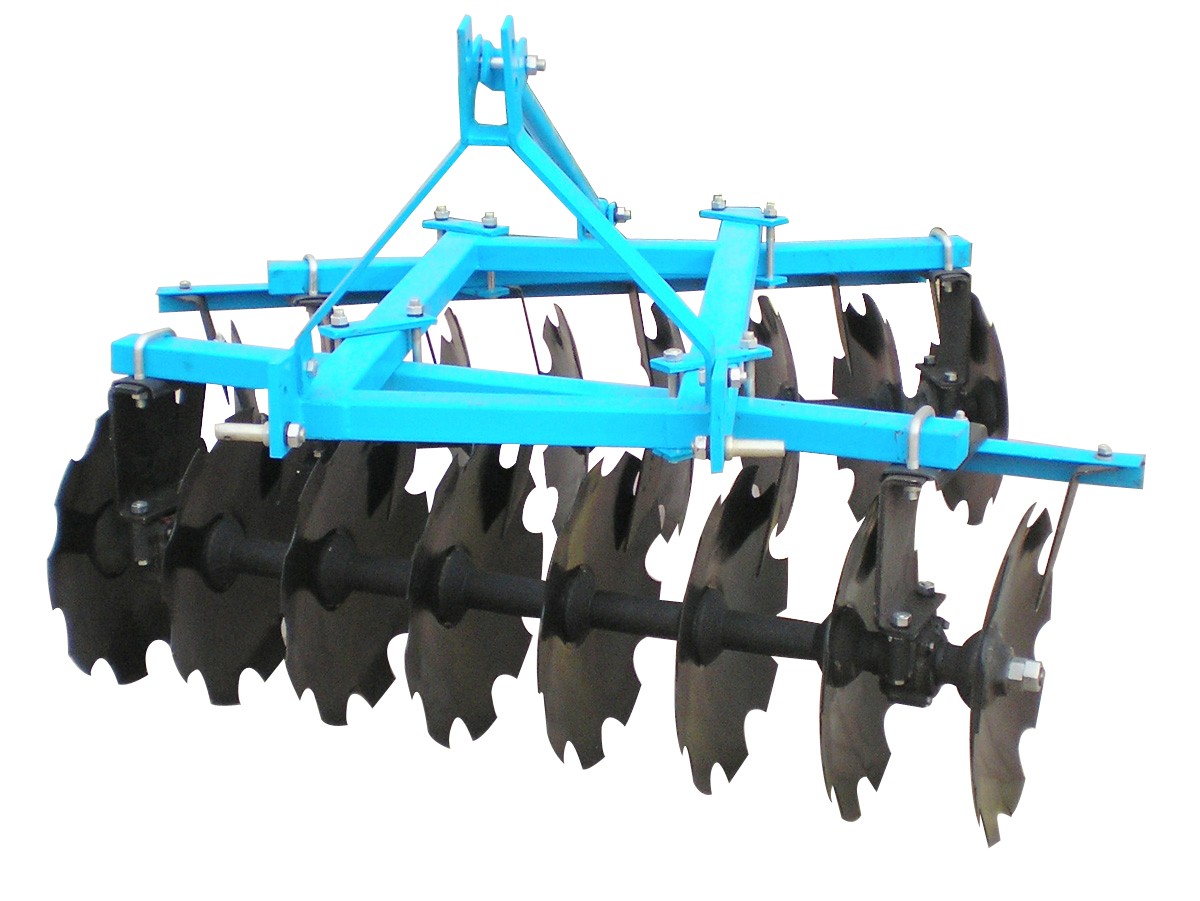

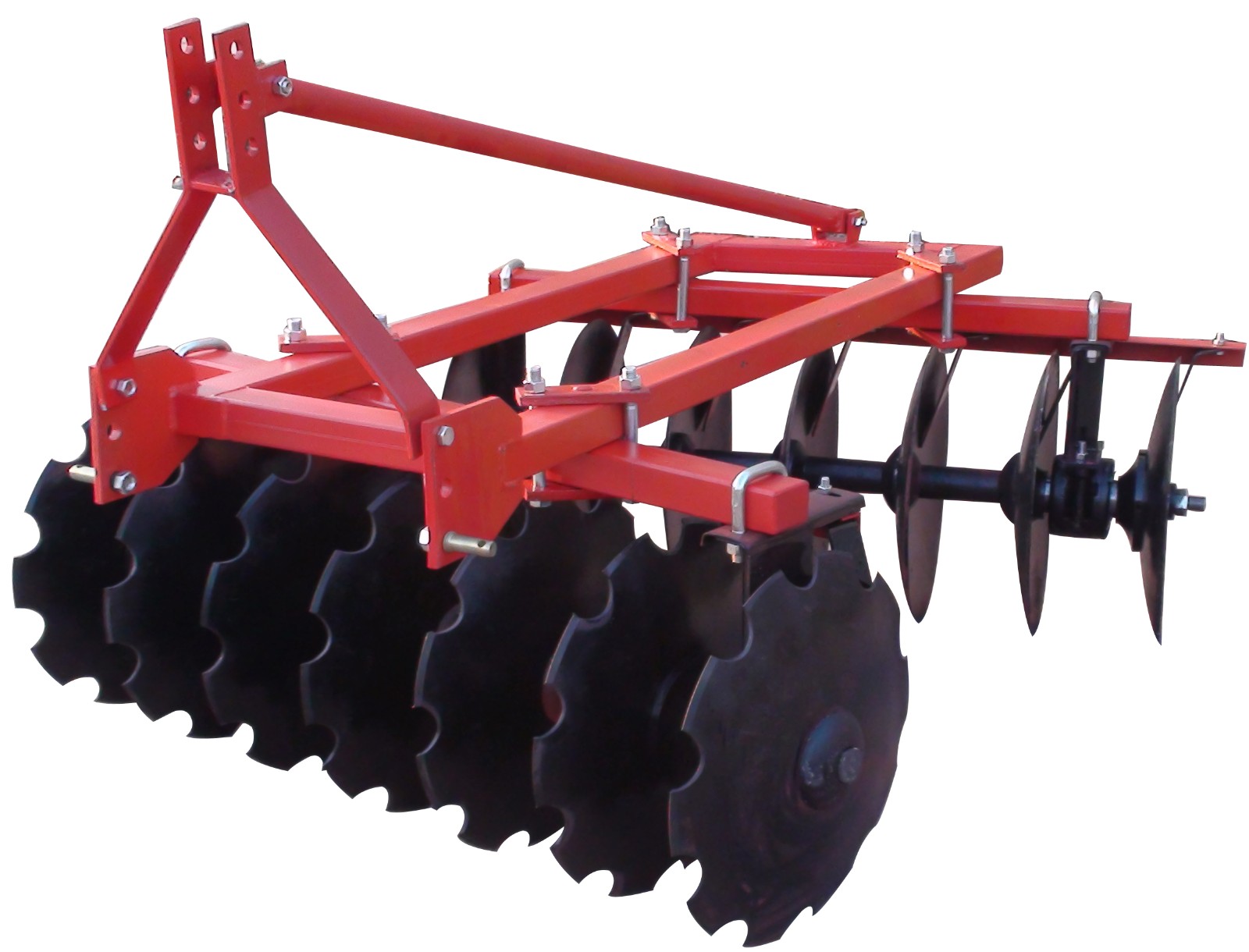

Tractor Mounted Offset Disc Harrow
This tractor-mounted light disc harrow is designed for seedbed preparation, tillage, and weed control. It is suitable for use with 15-60hp tractors.
Technical Specifications
Product Overview
Versatile Offset Disc Harrow
This tractor-mounted offset disc harrow is engineered for efficient soil preparation, including cleaning crop residues and breaking hardened soil. It excels in heavy clay, waste lands, and weedy fields, leaving a smooth and level surface for optimal seeding. Built with durable 65Mn spring steel and a robust bearing assembly, it provides reliable performance for tractors ranging from 15 to 60 horsepower.
Performance Metrics
Key Operating Metrics
120 mm
Working Depth
15 hp
Minimum Power
60 hp
Maximum Power
Technical Specifications
Model Specifications
| Model | Width(mm) | Discs | Weight(kg) | Power(hp) |
|---|---|---|---|---|
| 1BQX-1.1 | 1,100 | 12 | 200 | 15 |
| 1BQX-1.3 | 1,300 | 14 | 220 | 18 |
| 1BQX-1.5 | 1,500 | 16 | 240 | 25 |
| 1BQX-1.7 | 1,700 | 18 | 260 | 40 |
| 1BQX-1.9 | 1,900 | 20 | 310 | 50 |
| 1BQX-2.3 | 2,300 | 24 | 360 | 60 |
Construction & Features
- Build Quality
- 65Mn Spring SteelSealed Bearing AssemblyAdjustable Scrapers
- Compatibility
- Three-point suspension (Type I and II)
