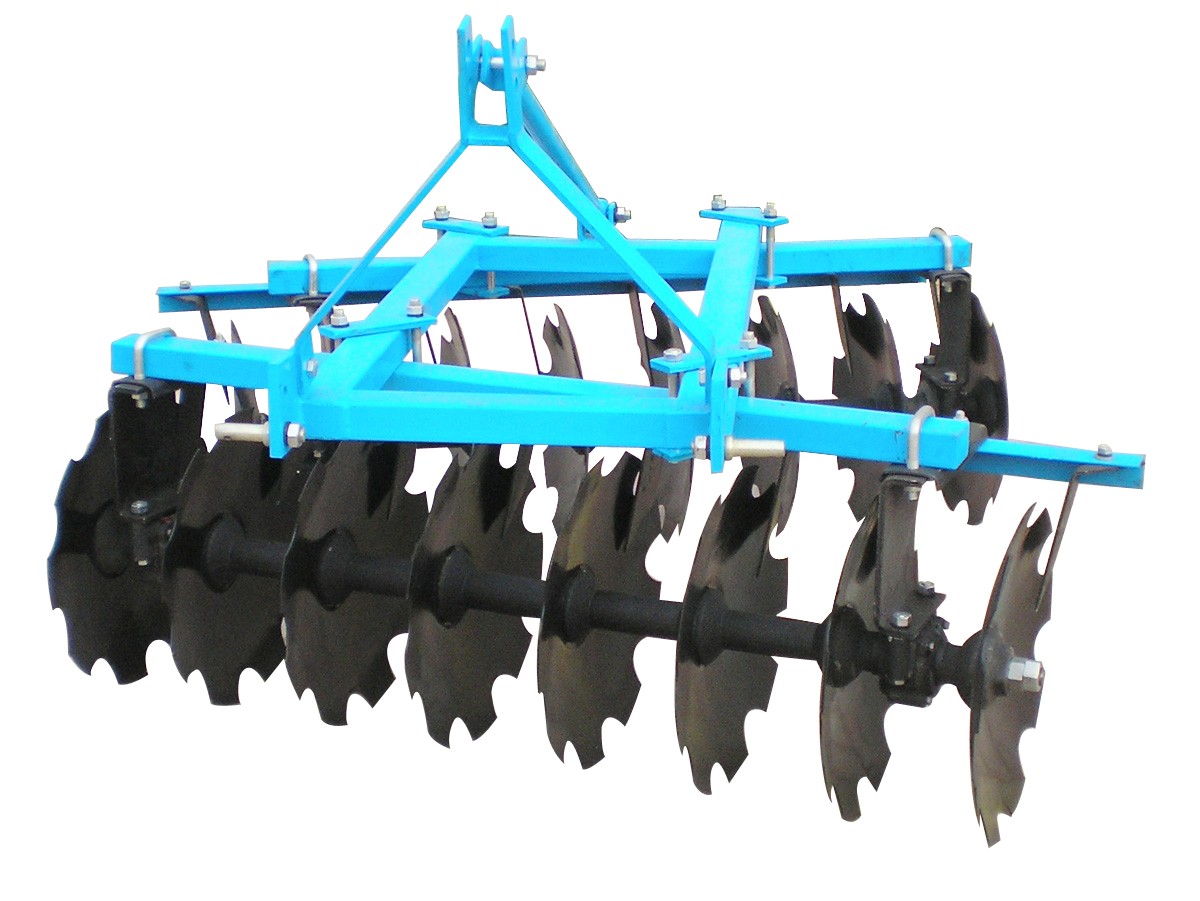

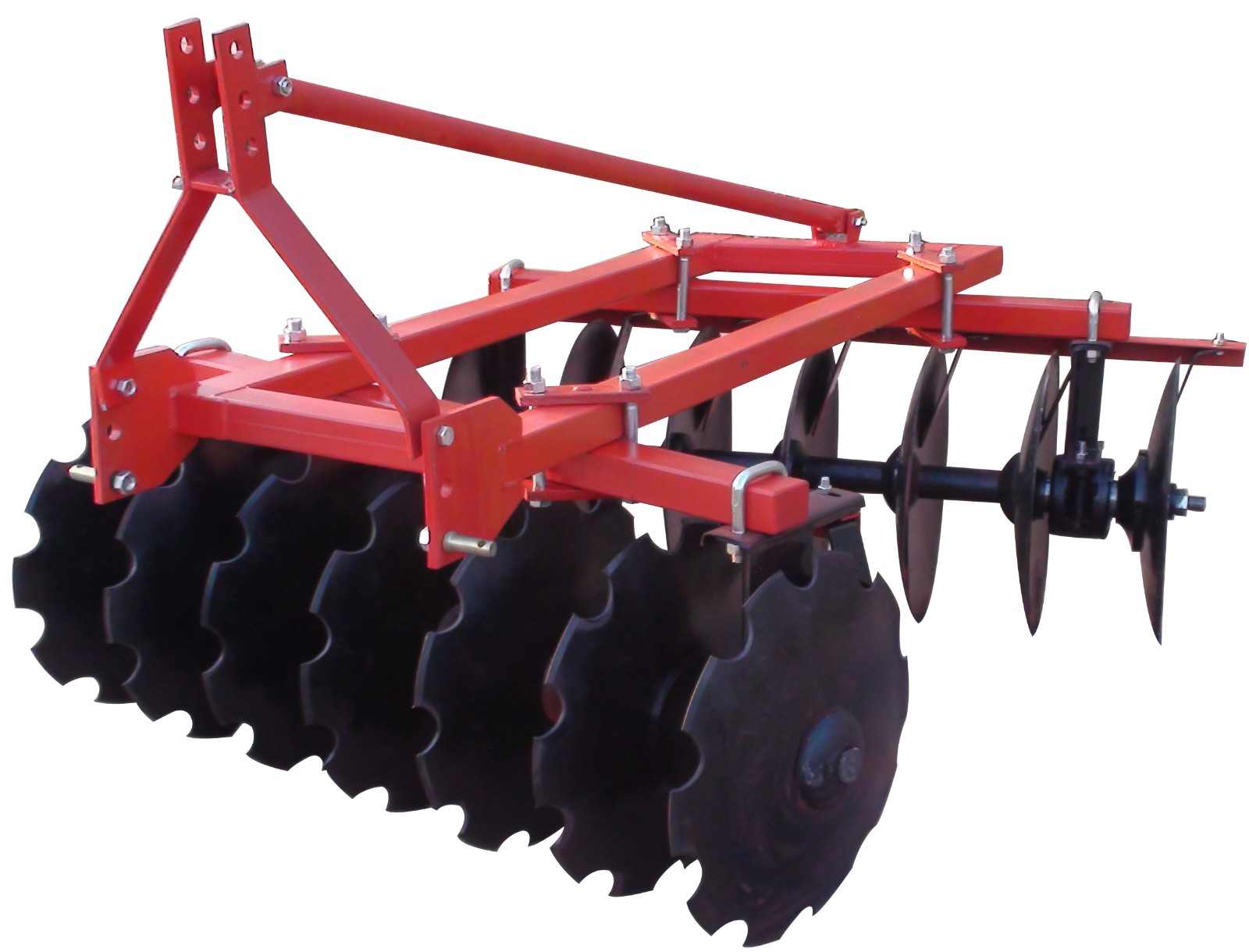

Tractor Mounted Offset Disc Harrow
This tractor-mounted offset disc harrow is designed for light-duty soil preparation. It is suitable for use with 15-60hp tractors.
Technical Specifications
Product Overview
Versatile Offset Disc Harrow
This tractor-mounted offset disc harrow is engineered to streamline soil preparation by efficiently managing crop residue, breaking hardened soil, and leveling fields. Crafted with high-quality 65Mn spring steel discs, it offers superior cutting and soil-shattering capabilities for heavy clay, waste land, or weedy fields. The adjustable design ensures precise working depth, making it a reliable solution for small-scale agricultural productivity.
Technical Specifications
Key Performance Metrics
120 mm
Working Depth
15 hp
Minimum Power Required
Model Specifications
| Model | Width (mm) | Discs | Weight (kg) | Power (hp) |
|---|---|---|---|---|
| 1BQX-1.1 | 1,100 | 12 | 200 | 15 |
| 1BQX-1.3 | 1,300 | 14 | 220 | 18 |
| 1BQX-1.5 | 1,500 | 16 | 240 | 25 |
| 1BQX-1.7 | 1,700 | 18 | 260 | 40 |
| 1BQX-1.9 | 1,900 | 20 | 310 | 50 |
| 1BQX-2.3 | 2,300 | 24 | 360 | 60 |
Construction & Features
Linkage Compatibility
- Three-point suspension I type
- Three-point suspension II type
- Build Quality & Features
- 65Mn spring steelDurable bearing assemblyIntegrated scrapersAdjustable working depth
