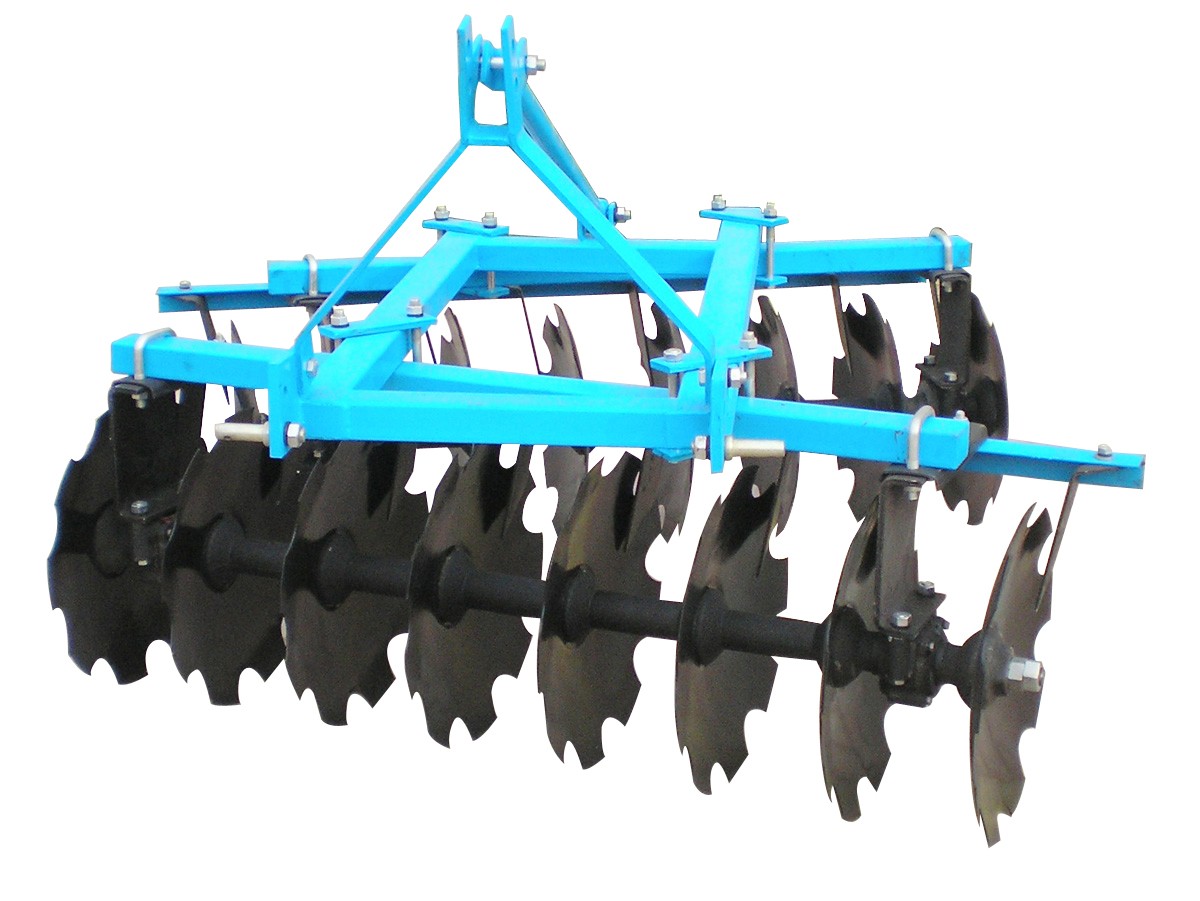

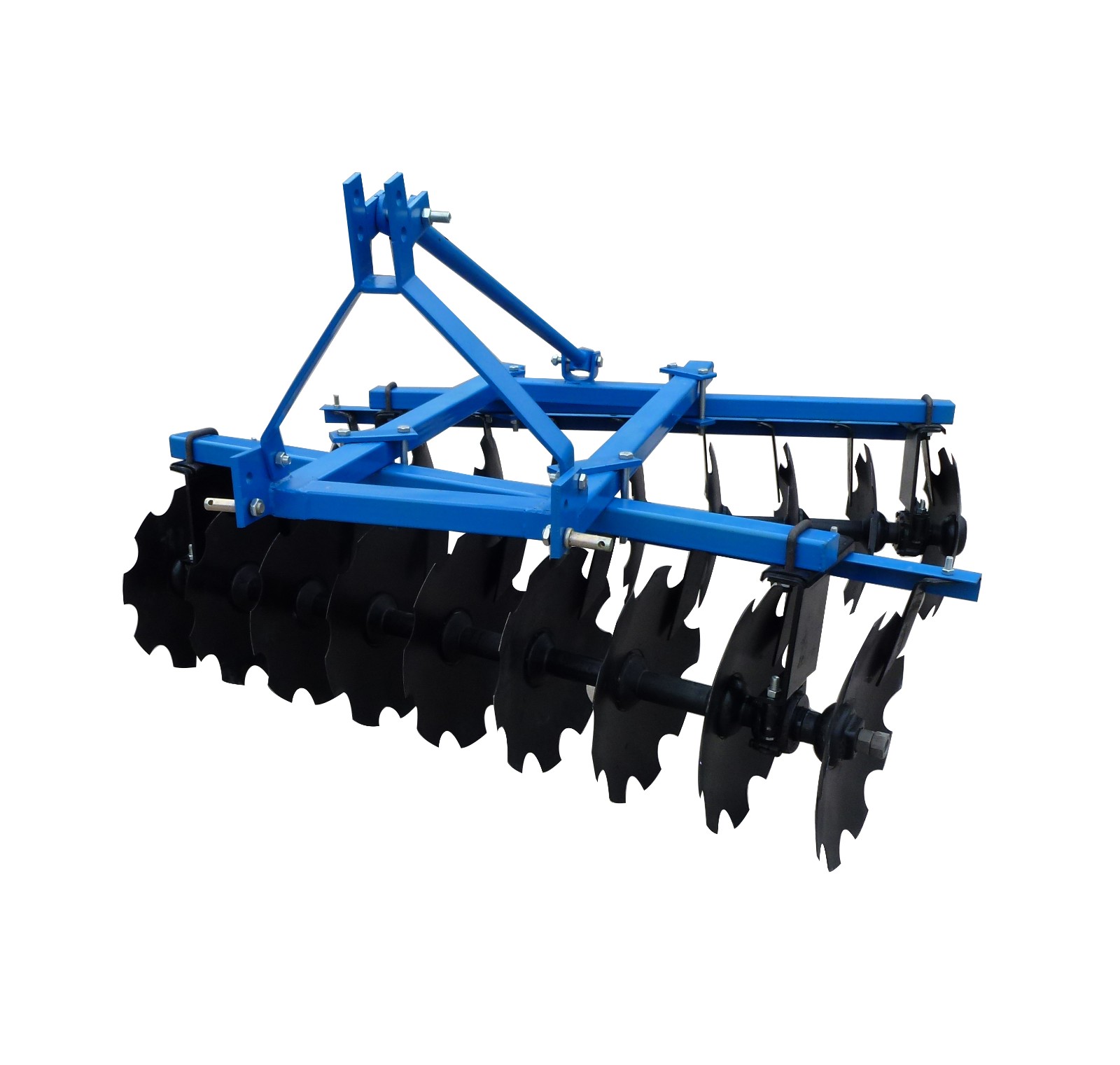

Tractor Mounted Offset Disc Harrow
This tractor-mounted disc harrow is designed for soil preparation and cultivation. The implement features angled discs for efficient cutting and mixing of soil.
Technical Specifications
Product Overview
Professional Soil Preparation Solution
This tractor-mounted offset disc harrow is engineered for efficient soil cultivation, making it ideal for breaking hardened soil, incorporating crop residue, and leveling seedbeds. Designed for versatility, it excels in heavy clay, wasteland, and weedy conditions, ensuring a smooth and loosened soil surface. With its durable 65Mn spring steel discs and adjustable working depth, this implement provides high productivity and reliable performance for small to medium-scale agricultural operations.
Technical Specifications
Model Specifications
| Model | Working Width (mm) | Disc Qty | Weight (kg) | Matched Power (hp) |
|---|---|---|---|---|
| 1BQX-1.1 | 1,100 | 12 | 200 | 15 |
| 1BQX-1.3 | 1,300 | 14 | 220 | 18 |
| 1BQX-1.5 | 1,500 | 16 | 240 | 25 |
| 1BQX-1.7 | 1,700 | 18 | 260 | 40 |
| 1BQX-1.9 | 1,900 | 20 | 310 | 50 |
| 1BQX-2.3 | 2,300 | 24 | 360 | 60 |
Operational Metrics
120 mm
Working Depth
Construction & Features
Key Features
- 65Mn spring steel disc blades for high durability
- Offset configuration for effective soil turning
- Individual scrapers for each disc blade
- Adjustable working depth
- Robust bearing assembly
- Compatibility
- 15-60hp TractorsThree-point Suspension Type IThree-point Suspension Type II
