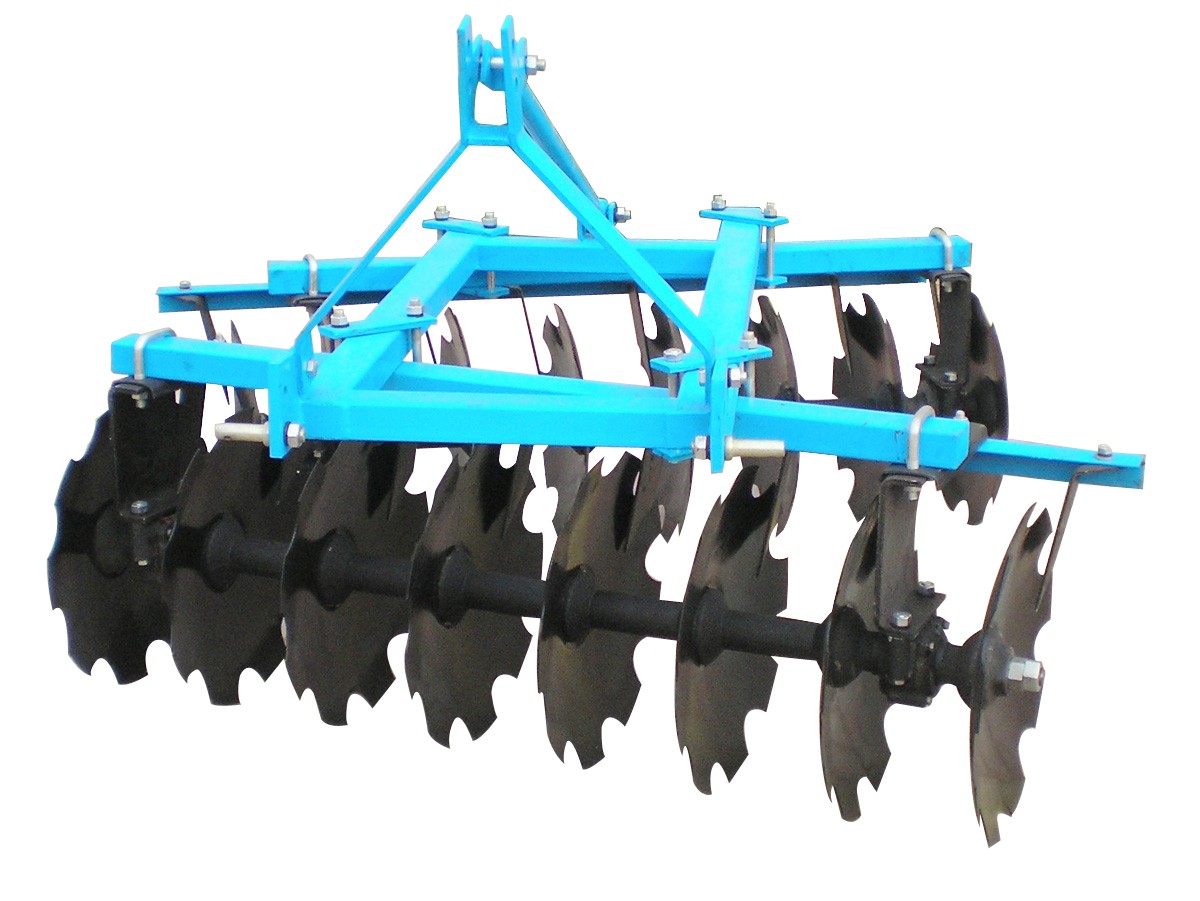

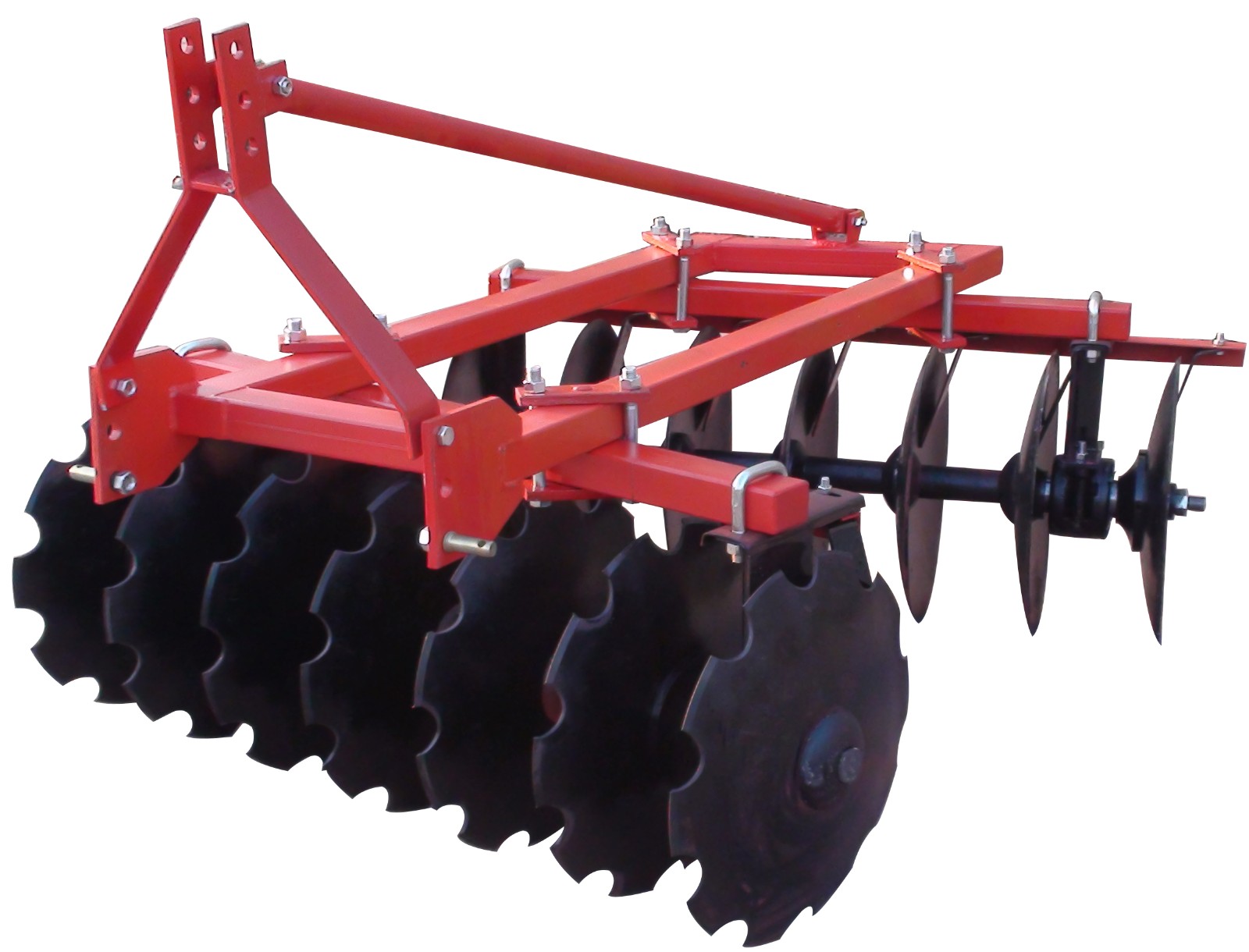

Tractor Mounted Offset Disc Harrow
This tractor-mounted offset disc harrow is designed for light-duty soil preparation and cultivation. Suitable for tractors between 15-60hp, it efficiently breaks up clods and levels the soil surface.
Technical Specifications
Overview
Tractor Mounted Offset Disc Harrow
This tractor-mounted offset disc harrow is designed for efficient soil preparation, specifically for cleaning crop residue, breaking hardened soil, and leveling land. Featuring robust construction with 65Mn spring steel blades, it is highly effective for heavy clay, waste land, and weedy fields. The adjustable working depth and offset configuration ensure thorough soil cutting and mixing, making it an ideal tool for small-scale farming operations.
Technical Specifications
- Blade Material
- 65Mn spring steel
- Linkage Type
- Three-point suspension I typeThree-point suspension II type
- Working Depth
- 120 mm
Performance Models
Model Specifications
| Model | Working Width (mm) | Disc Quantity | Weight (kg) | Matched Power (hp) |
|---|---|---|---|---|
| 1BQX-1.1 | 1,100 | 12 | 200 | 15 |
| 1BQX-1.3 | 1,300 | 14 | 220 | 18 |
| 1BQX-1.5 | 1,500 | 16 | 240 | 25 |
| 1BQX-1.7 | 1,700 | 18 | 260 | 40 |
| 1BQX-1.9 | 1,900 | 20 | 310 | 50 |
| 1BQX-2.3 | 2,300 | 24 | 360 | 60 |
Key Features
Main Features
- Adjustable working depth
- Scraper fitted for each disc blade
- Strong and durable bearing assembly
- Offset configuration for better soil penetration
- Suitable for 15-60hp tractors
