Tractor Mounted Disc Plough
This tractor-mounted disc plough is designed for breaking, raising, turning, and mixing soil. It is used to open new fields and process stony areas, proving especially useful in hard and dry land.
Technical Specifications
Overview
High-Performance Tractor Mounted Disc Plough

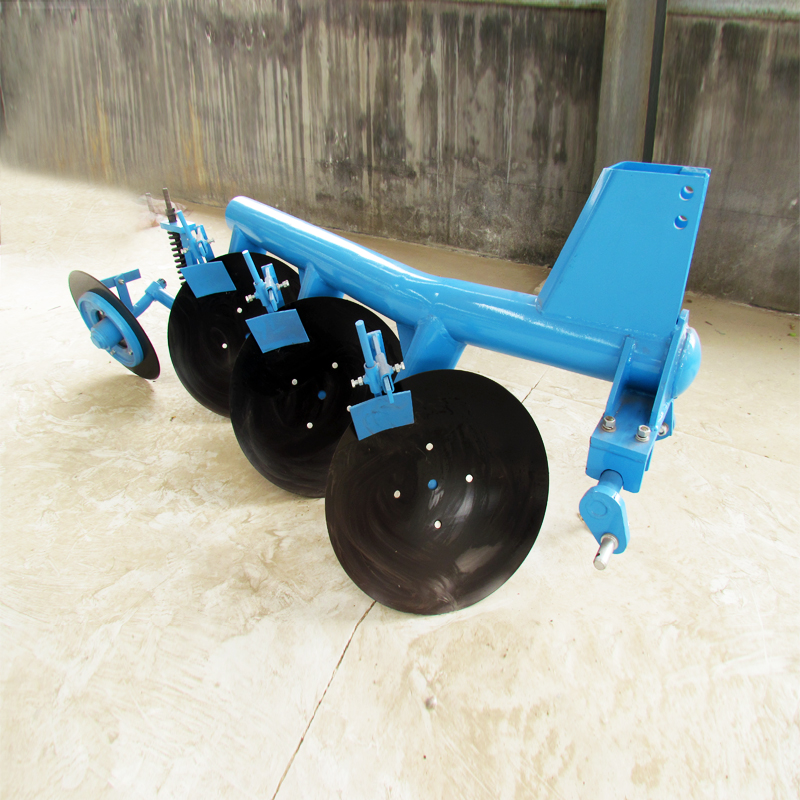

The 1LYD series disc plough is a robust agricultural implement designed for primary tillage in challenging conditions, including stony, rooted, and hard dry trashy lands. It excels at soil breaking, raising, turning, and mixing to create an optimal seedbed for high-yield crops. Available in 2 to 5 disc configurations, it offers exceptional passing performance and durability for professional farming operations.
Key Features
Terrain Suitability
- New fields and uncultivated land
- Stony and rocky areas
- Rooted soil
- Hard and dry trashy land
- Wheat and rice stubble fields
- Primary Functions
- Soil BreakingSoil RaisingSoil TurningSoil MixingStubble Mulching
Technical Specifications
Model Specifications
| Model | Discs | Working Width (mm) | Weight (kg) | Tractor Power (hp) |
|---|---|---|---|---|
| 1LYD-230 | 2 | 500-600 | 300 | 50-60 |
| 1LYD-330 | 3 | 750-900 | 390 | 75-90 |
| 1LYD-430 | 4 | 1000-1200 | 490 | 90-100 |
| 1LYD-530 | 5 | 1250-1500 | 575 | 100-120 |
Standard Performance Metrics
660 mm
Disc Diameter
250 mm
Working Depth
Build & Design
Mounting System
Tractor Mounted3-Point Linkage
Adjustable Components
- Adjustable disc angles
- Adjustable working depth
- Adjustable furrow width
- Construction Material

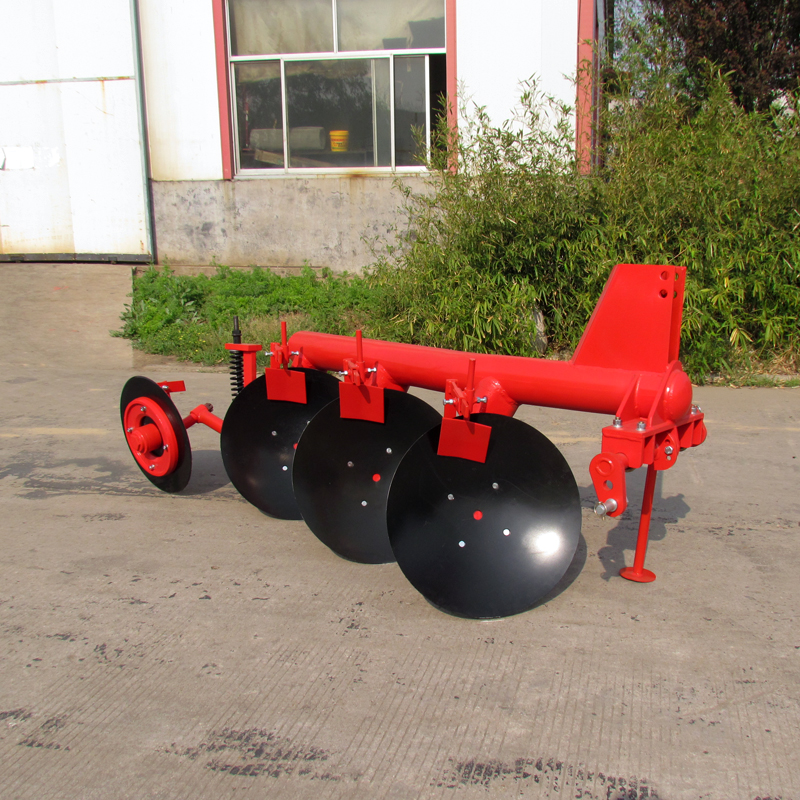

- High-strength hardened steel frame and discs
