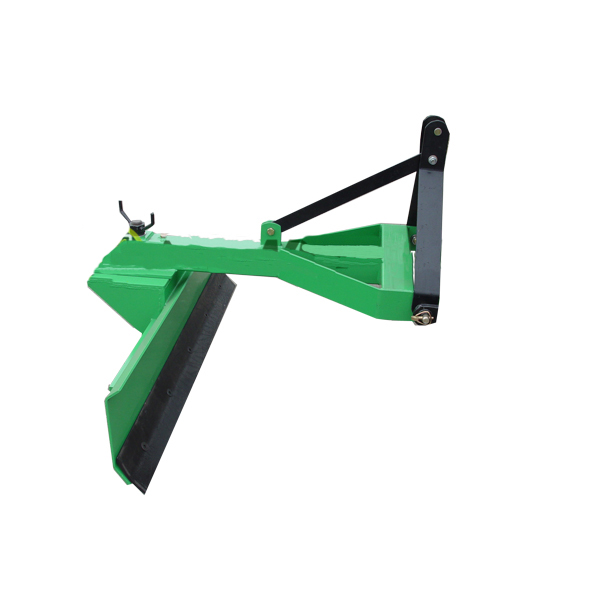

Tractor Grader Attachment
This heavy-duty grader attachment is designed for tractors. It is ideal for leveling, grading, and backfilling applications.
Technical Specifications
Product Overview
Heavy-Duty Tractor Grader
This robust grader attachment is engineered for demanding agricultural and maintenance environments. Designed for leveling, grading, and backfilling, it features a high-strength steel frame and a reversible cutting edge for extended service life. With its versatile three-point hitch system, it offers precise control over grading depth and angle, making it an ideal solution for soil preparation, road maintenance, and debris clearing.
Technical Specifications
Model Comparison
| Specification | 5GBH Model | 6GBH Model |
|---|---|---|
| Dimensions (L*W*H) | 1520*1250*1100mm | 1820*1250*1100mm |
| Working Width | 1500mm | 1800mm |
| Structure Weight | 90kg | 105kg |
| Tractor Horsepower | 20-40hp | 30-55hp |
Key Features
Primary Applications
- Soil leveling and grading
- Backfilling
- Gravel road maintenance
- Debris clearing
- Soil preparation for planting
- Compatibility & Design
- Three-point hitch systemAdjustable blade angleReversible cutting edgeHigh-strength steel construction
