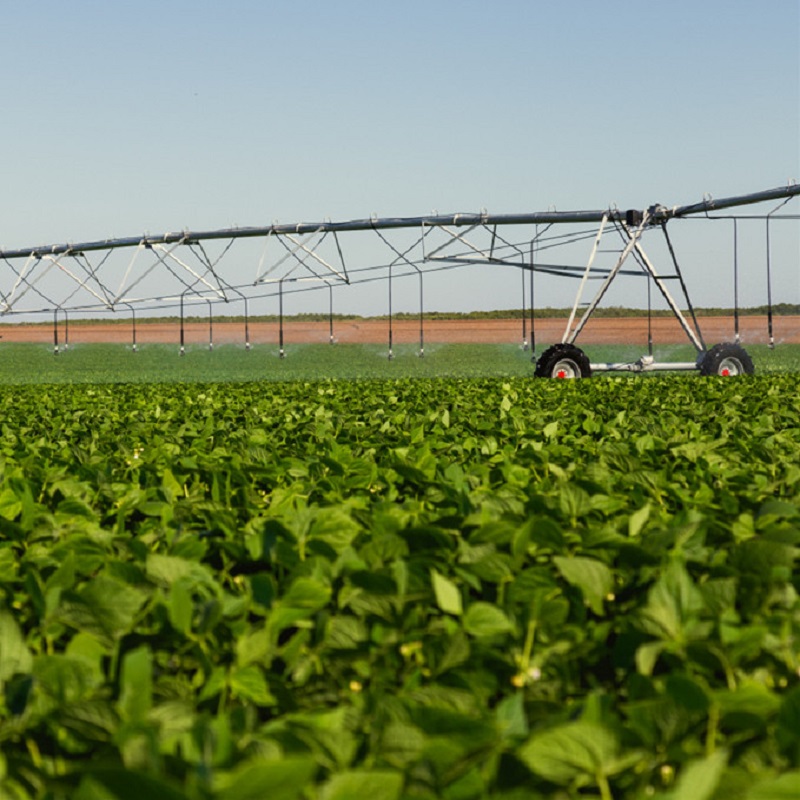

Towable Center Pivot Irrigation System
This center pivot system features wheels assembled on the central part, allowing it to be easily towed between locations. Utilizing a single machine, it efficiently irrigates multiple, separate land areas.
Technical Specifications
System Overview
Towable Center Pivot Irrigation System
This towable center pivot irrigation system is designed to provide highly efficient and uniform water distribution across multiple agricultural fields. By enabling the main pivot point to be easily towed by tractor or hand, a single unit can service several different land plots to optimize your irrigation investment. The system features robust construction and customizable configurations to meet specific field requirements.
- Mobility
- Towable via tractor or hand
Technical Specifications
Span Lengths
- 135ft (41.15m)
- 157ft (47.85m)
- 179ft (54.56m)
- 201ft (61.26m)
- Available Pipe Diameters
- 8 inch6 5/8 inch5 9/16 inch
- Joint Material Options
- Standard Hot Deep GalvanizedPolylinedStainless Steel
Wheel and Tire Options
Tire Configuration Table
| Tire Size | Rim/Type |
|---|---|
| 14.9x24 | 8" rim tubeless |
| 14.9x24 | 10" rim tubeless |
| 16.9x24 | Tube type |
| 11.2x38 | Tube type |
| Rubber | Non-pneumatic |
Overhang Specifications
Overhang Lengths
- 22ft (6.7m)
- 44ft (13.4m)
- 66ft (21.1m)
- 88ft (26.8m)
