Technical Specifications

Overview

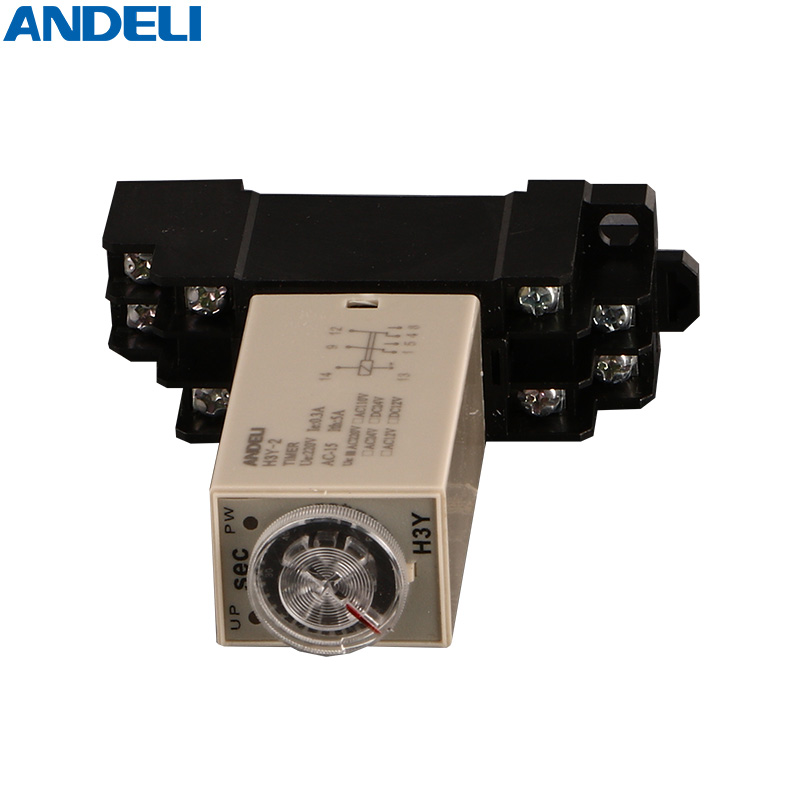

Compact Time Delay Relay

The H3Y-2 is a compact and reliable time delay relay designed for precise control in industrial automation and process management. It features a clear rotary dial for easy adjustment of timing intervals, ensuring dependable performance in demanding environments. This versatile unit supports a wide range of operating voltages and is built for durability, making it an essential component for machine automation and lighting control systems.

Technical Specifications

Contact Rating

5 A

AC-15 Rated Current

0.3 A

General Rated Current

Rated Voltage: AC 12VAC 24VAC 110VAC 220VAC 240VDC 12VDC 24V
Power Consumption: 3 VA
Reset Time: 0.2 s

Technical specification chart for H3Y series timer showing dimensions and wiring configurations — Technical layout and mounting dimensions for the H3Y time delay relay series.

Environmental and Physical

Operating Environment

Parameter	Value
Temperature	-10°C to +55°C
Humidity	48% to 85% RH
Weight	45g

Compatible Socket Types

PYF08A
PYF14A
