Three-Point Linkage Disc Plough for Agriculture
This disc plough features a three-point linkage system for secure tractor attachment. It is designed to cut crop stalks effectively without winding grass or block building.
Technical Specifications
Overview
Professional Disc Plough Solution

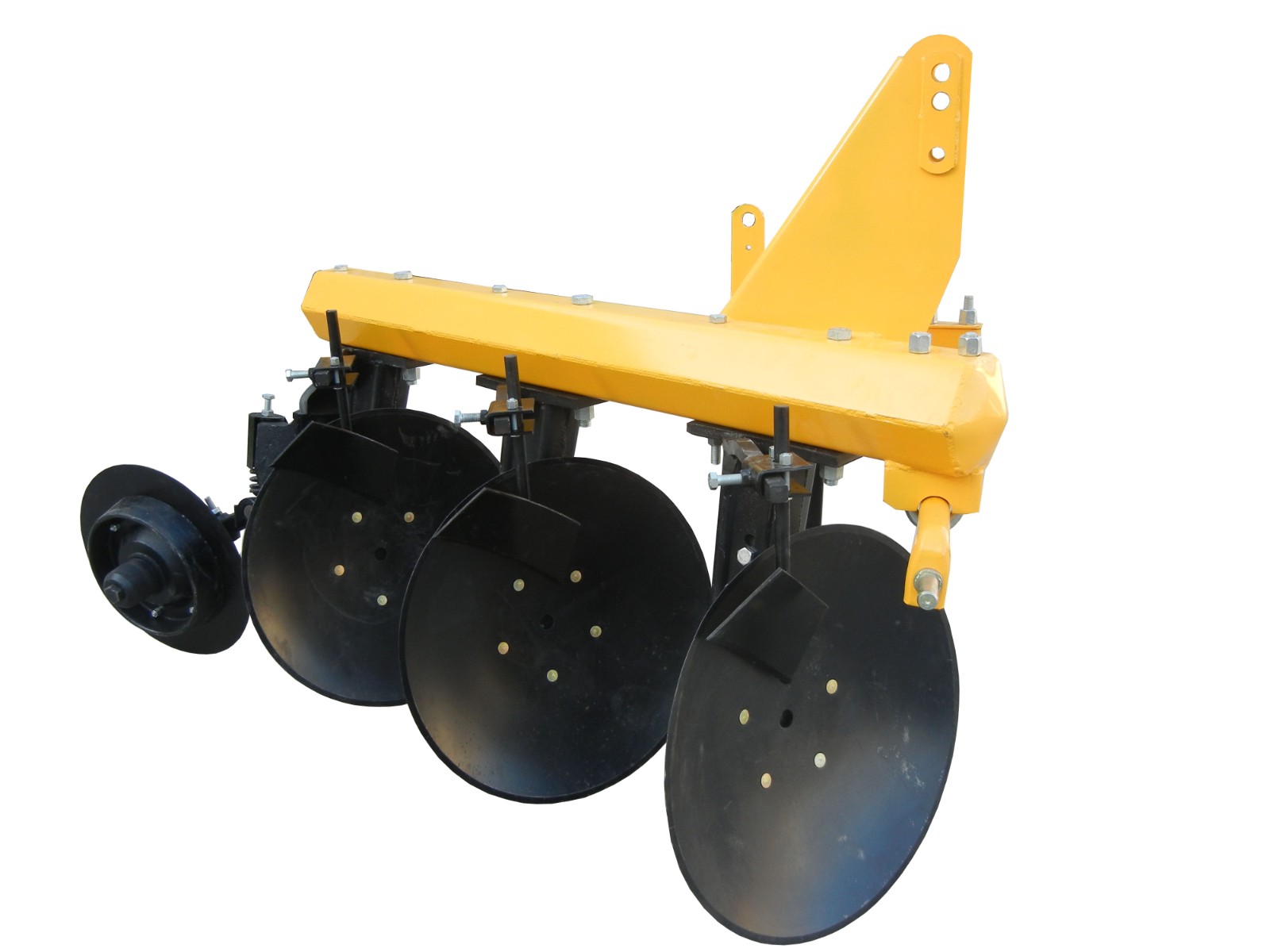

This fully-suspended disc plough is engineered for primary tillage operations, designed to excel in challenging soil conditions including those with weeds, stems, and rocky debris. Featuring a robust three-point suspension system, it ensures secure attachment to tractors for efficient soil cutting and inversion. Its rotary disc motion prevents clogging and grass winding, making it an ideal tool for preparing uniform seedbeds and breaking up compacted soil.
Technical Specifications
Model Performance Data
| Model | Working Width (mm) | Discs | Weight (kg) | Required Power (hp) |
|---|---|---|---|---|
| 1LY-2 | 600 | 2 | 350 | 40 |
| 1LY-3 | 900 | 3 | 400 | 60 |
| 1LY-4 | 1,200 | 4 | 470 | 80 |
| 1LY-5 | 1,500 | 5 | 560 | 120 |
- Working Depth
- 250 mm
- Linkage System
- Three-point suspension II type
Key Features
Operational Advantages
- No winding grass or blockages
- No hip building-up
- Easy to cut off crop stalks
- Adjustable disc angle
- Fully-suspended design
- Suitable Conditions
- Weedy landStemsFrictional soil with bricksCompacted soil
