Three-Phase Neutral Power Distribution Board

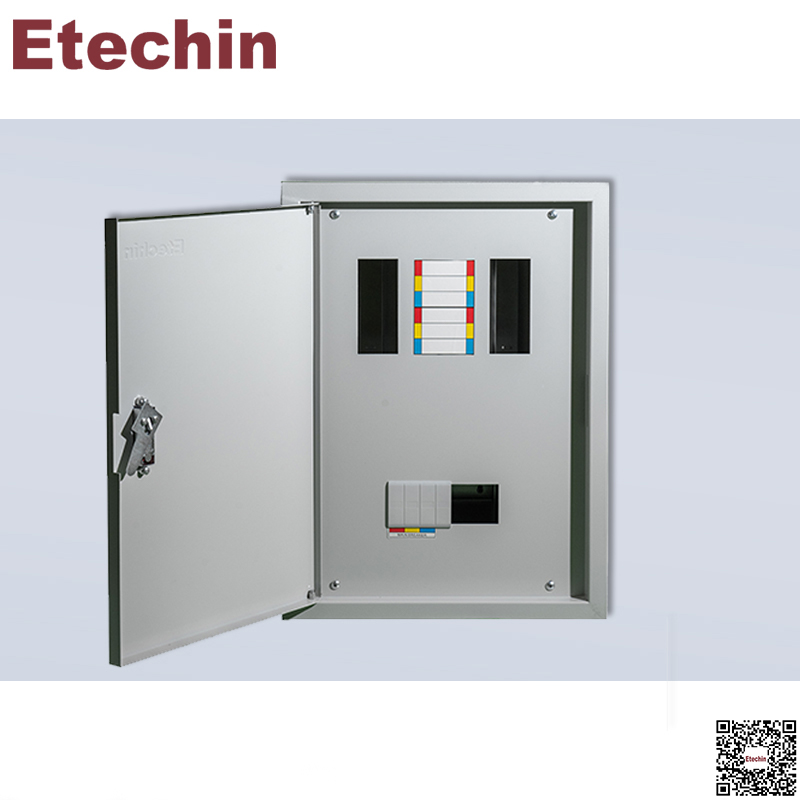

This three-phase neutral (TPN) distribution board is designed for electrical power distribution. The board features multiple slots for circuit breakers, with color-coded labels indicating phase and neutral connections.
Technical Specifications
Product Overview
Professional Electrical Distribution
The ETD01 three-phase neutral distribution board provides safe and reliable circuit protection for residential, commercial, and light industrial buildings. Engineered to meet IEC61439-3 standards, it features a fully shrouded busbar and a robust electro-galvanized steel enclosure. This versatile system supports multiple main incomer options and flexible mounting types, ensuring ease of installation and long-term durability in various environments.
Electrical Ratings
Core Specifications
250 A
Max Amperage
690 V
Insulation Voltage
415 V
Max Voltage
- Main Incomer Options
- MCBIsolator+ELCBMCCB
Mechanical Construction
Mounting Options
FlushSurface
Construction Details
| Property | Specification |
|---|---|
| Material | Electro-galvanized steel |
| Sheet Thickness | 1mm & 1.2mm |
| Finishing | Powder-coated (RAL7035) |
| Ingress Protection | IP40 |
Available Ways (3-Phase)
- 4
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 20
- 22
- 24
