Technical Specifications
Product Overview

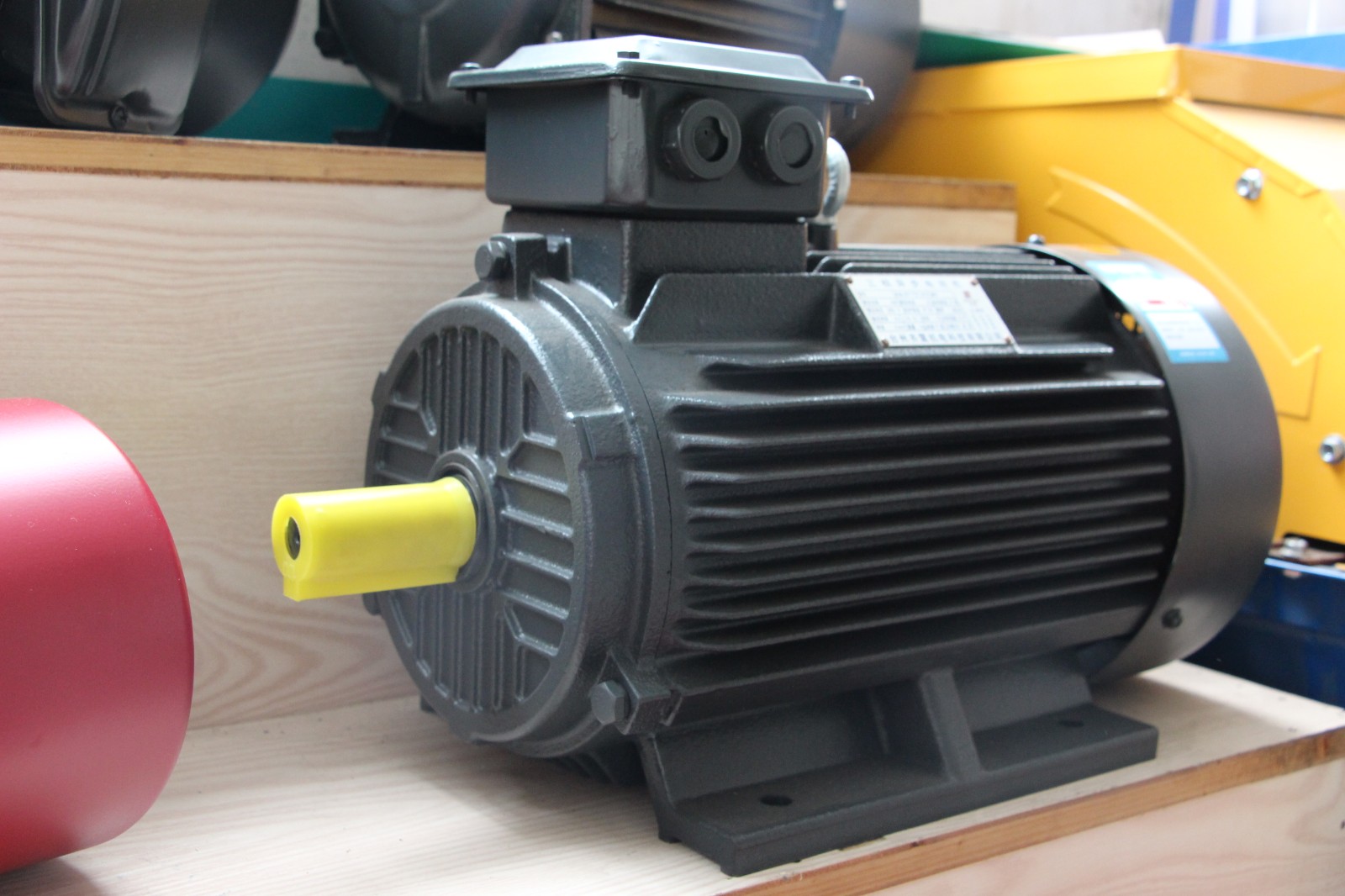

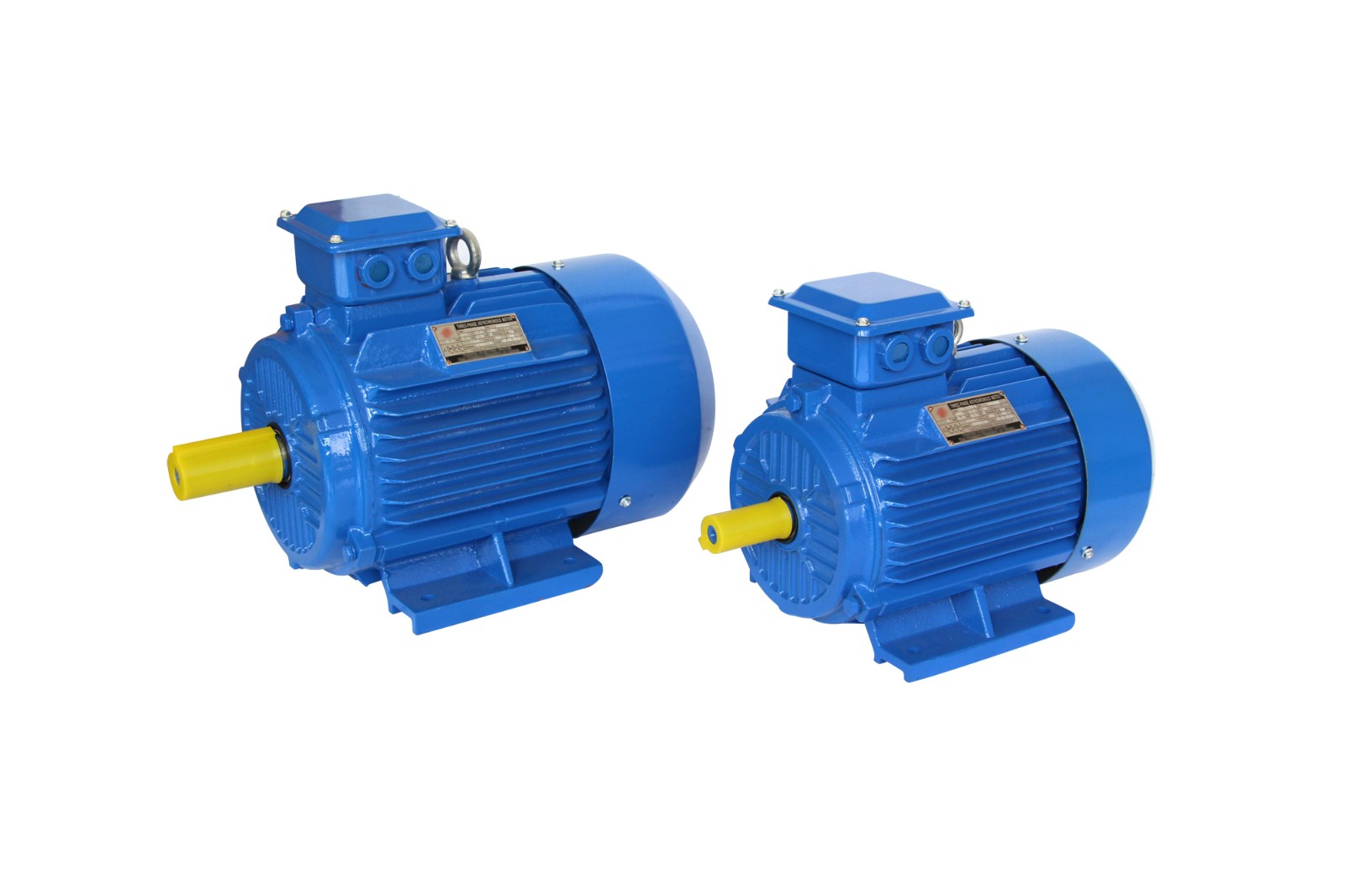

Professional Y2 Series Induction Motor
The Y2 series is a general-purpose, three-phase asynchronous squirrel-cage motor designed for high reliability and industrial performance. These motors are engineered for energy efficiency and low noise operation, featuring a totally enclosed fan-cooled design for protection against dust and splashing water. With robust construction and compliance with international standards, they are an ideal, cost-effective solution for driving various mechanical equipment in factory and mill environments.
Technical Specifications
Protection Class
IP54
- Cooling System
- IC411 (Totally Enclosed Fan-Cooled)
- Standards
- JB/T86801-1998IEC Compliant
Operating Conditions
- Ambient Temperature
- -15°C to 40°C
- Maximum Altitude
- 1000 meters
- Duty Cycle
- S1 (Continuous)
Electrical Performance
Performance Data
7.5 kW
Rated Power
380 V
Voltage
14.5 A
Rated Current
2,900 r/min
Speed
88.1 %
Efficiency
Installation Guidelines
Wiring Connection
- Y-Connection: 3kW and below
- Delta Connection: 4kW and above
- Starting Methods
- Full-voltage startingDecreased-voltage starting (Reactor/Y-Delta)
