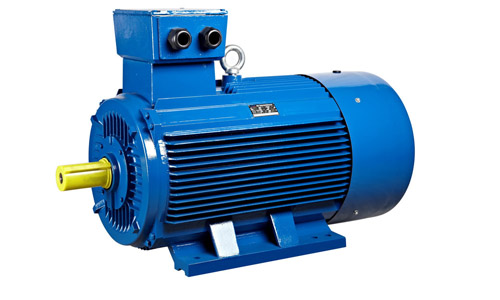

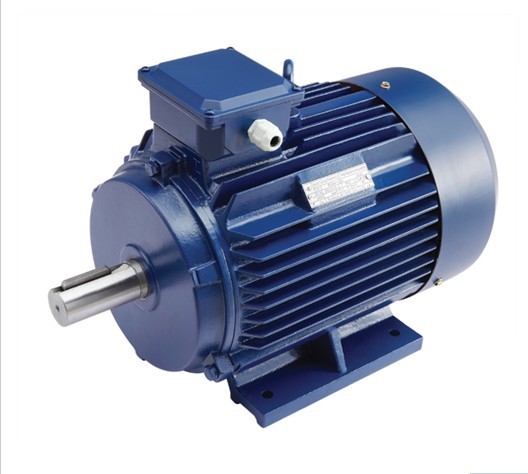

Three-Phase Electric Motor
This three-phase electric motor is designed for continuous operation. Its cast iron frame provides durability and vibration resistance.
Technical Specifications
General Overview
High Efficiency Three-Phase Induction Motor
The Y2 Series induction motor features a national unified design optimized for high-performance industrial applications. This fully enclosed, fan-cooled (TEFC) unit offers superior energy efficiency, low vibration levels, and minimal noise output. It is engineered for continuous duty (S1) service, making it an ideal choice for diverse equipment such as pumps, compressors, and machinery.
Technical Specifications
- Insulation Class
- Class F
- IP Rating
- IP55
- Rated Frequency
- 50 Hz
- Wiring Connection Note
- Y connection for 3 kW and below; Delta connection for 4 kW and above
Performance Features
Housing Materials
- Aluminum (AL)
- Cast Iron
- Key Features
- Energy EfficientHigh Starting TorqueLow VibrationLow NoiseTEFC Design
Application
Typical Applications
- Machine Tools
- Pumps
- Fans
- Compressors
- Transportation Machinery
