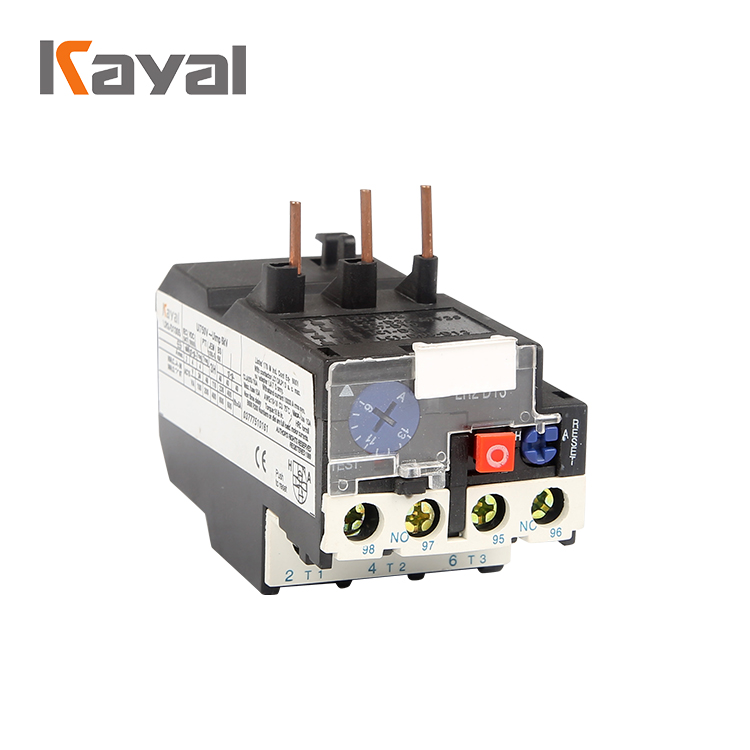

Thermal Overload Relay
This thermal overload relay is designed for use in circuits of 50HZ or 60HZ with rated insulation voltage 660V and rated current 0.1-96A. It protects against phase breaks when the electric motor is overloaded.
Technical Specifications
Product Overview
Professional Motor Protection

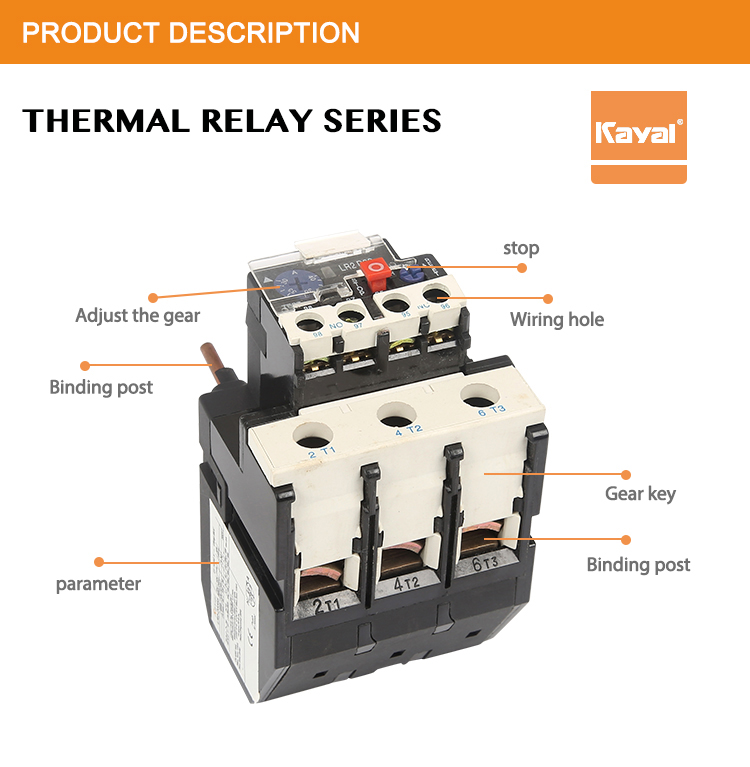

This advanced thermal overload relay is engineered for reliable protection of electric motors against overloads and phase failures in 50Hz or 60Hz circuits. Designed for seamless integration, it can be plugged directly into standard AC contactors to ensure stable circuit operation. The unit features precise current setting adjustments, temperature compensation, and auxiliary contacts for remote indication and control in demanding industrial environments.
Electrical Ratings
- Rated Insulation Voltage
- 660 V
- Auxiliary Circuit Rated Voltage
- 500 V
- Frequency
- 50Hz60Hz
Technical Specifications
Key Features
- Phase break protection
- Temperature compensation
- Manual and automatic reset options
- Integrated test function
- Adjustable setting current
- Series Type
- LR2-D13
- Auxiliary Contacts
- 1 NO + 1 NC
Performance Metrics
Rated Current Capacity
0.1 A
Minimum Current
96 A
Maximum Current
