Surface Mounted Schuko Power Outlet
This surface-mounted Schuko outlet provides a convenient and safe power connection. It features fire-resistant housing and optional tamper-resistant sockets for enhanced safety.
Technical Specifications
Product Overview
Professional Surface Mounted Power Solution

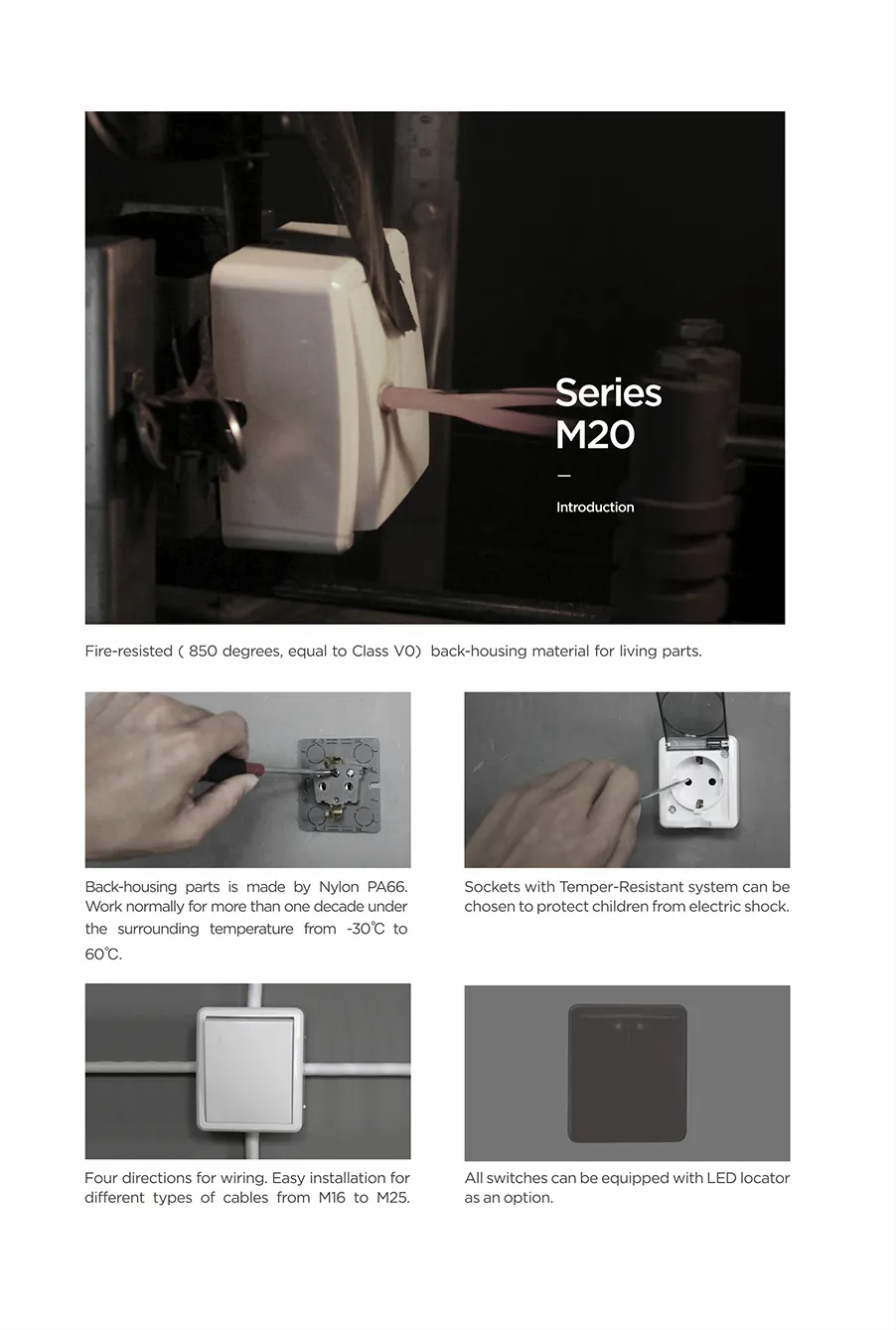

This M20 series surface-mounted Schuko power outlet is engineered for reliable, long-term use in diverse residential and commercial settings. It features a robust, fire-resistant design capable of withstanding temperatures up to 850°C and is built to operate efficiently between -30°C and 60°C. With a versatile design allowing for four-directional wiring and compatible with cable sizes from M16 to M25, it offers straightforward installation for professional contractors.
Technical Specifications
Electrical Ratings
250 V
Voltage
16 A
Current
Dimensions & Material
| Property | Detail |
|---|---|
| Dimensions | 70*60*39mm |
| Housing Material | PC, PP, Nylon PA66 |
| Mounting Type | Surface Mounted |
Compliance & Safety
Safety Features
- Fire-resistant up to 850°C
- Tamper-resistant system available
- Optional LED locator support
- Certifications
- CEISO9001ISO14000
Additional Information
Ideal Applications
ResidentialHotelHospitalCommercialIndustrial
