Stepper Motor - VHSM28 Model
This stepper motor is designed for precise motion control applications. It features a robust construction with a square flange for secure mounting, making it suitable for CNC machines, robotics, and automation systems.
Technical Specifications
Overview
High-Precision Stepper Motor
The VHSM28 is a professional-grade stepper motor engineered for high-performance motion control systems. It offers reliable positioning accuracy and consistent torque output, making it an excellent choice for robotics, CNC machining, and automated industrial equipment. Its compact design and robust construction ensure seamless integration into diverse automation setups.
Technical Specifications
Performance Metrics
15 N.cm
Holding Torque
1.8 °
Step Angle
0.8 A
Rated Current
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Current | 0.8 A |
| Resistance | 9 Ω |
| Drive Mode | 2-2 |
| Step Accuracy | ± 5% |

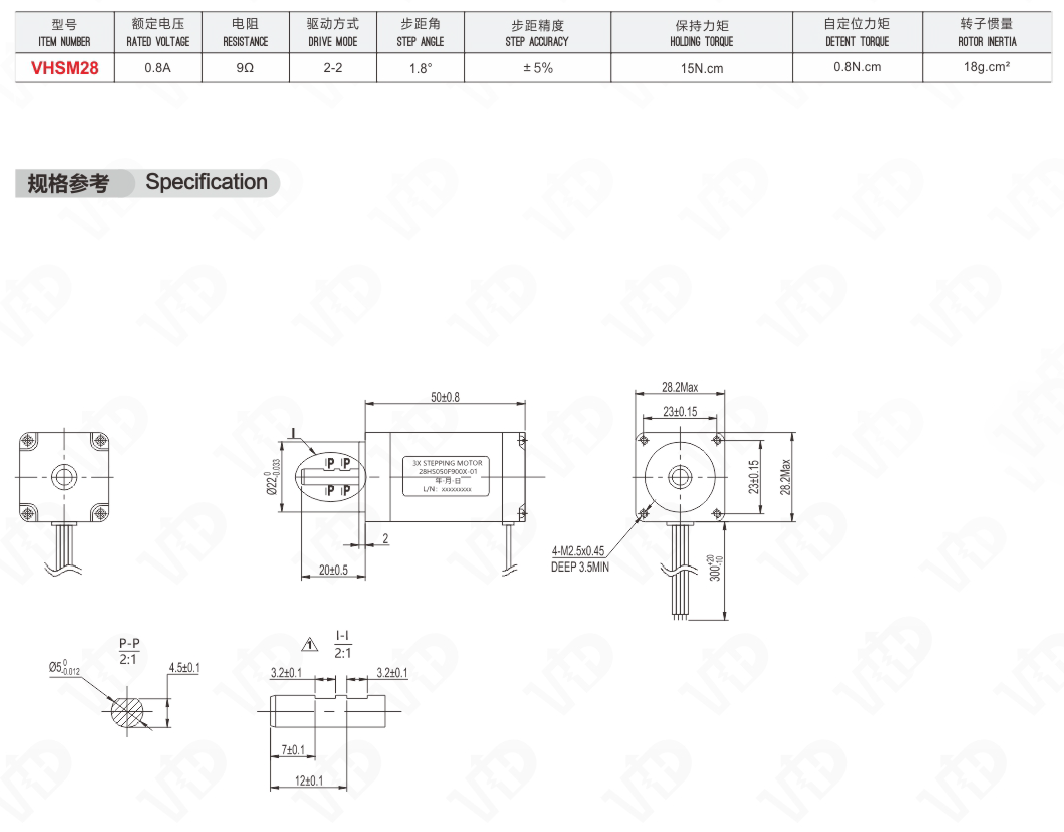

Physical Dimensions
Mechanical Data
- Diameter: Ø22±0.033 mm
- Length: 50±0.8 mm
- Mounting: 4-M2.5x0.45 screws (3.5mm depth)
- Lead Wire Length: 300+20/-0 mm
- Rotor Inertia: 18g.cm²
- Detent Torque: 0.8N.cm
