Precision Stepper Motor Module VSM15117
The VSM15117 is a precision-engineered stepper motor module designed for high-reliability applications, such as business automation equipment and projector systems. This compact assembly features a robust motor mounted on a perforated metal base, ensuring seamless integration and consistent performance. With a 2-2 drive mode and a 5.0V rated voltage, it is optimized for controlled, responsive operation in demanding technical environments.
Electrical Specifications
- Rated Voltage
- 5 V
- Resistance
- 12 Ω
Performance Metrics
Operational Performance
500 PPS
Max Self-Start Frequency
1,000 PPS
Max Continuous Response Frequency
6 gf-cm
Introducing Torque
8 gf-cm
Tripping Torque
Mechanical Specifications

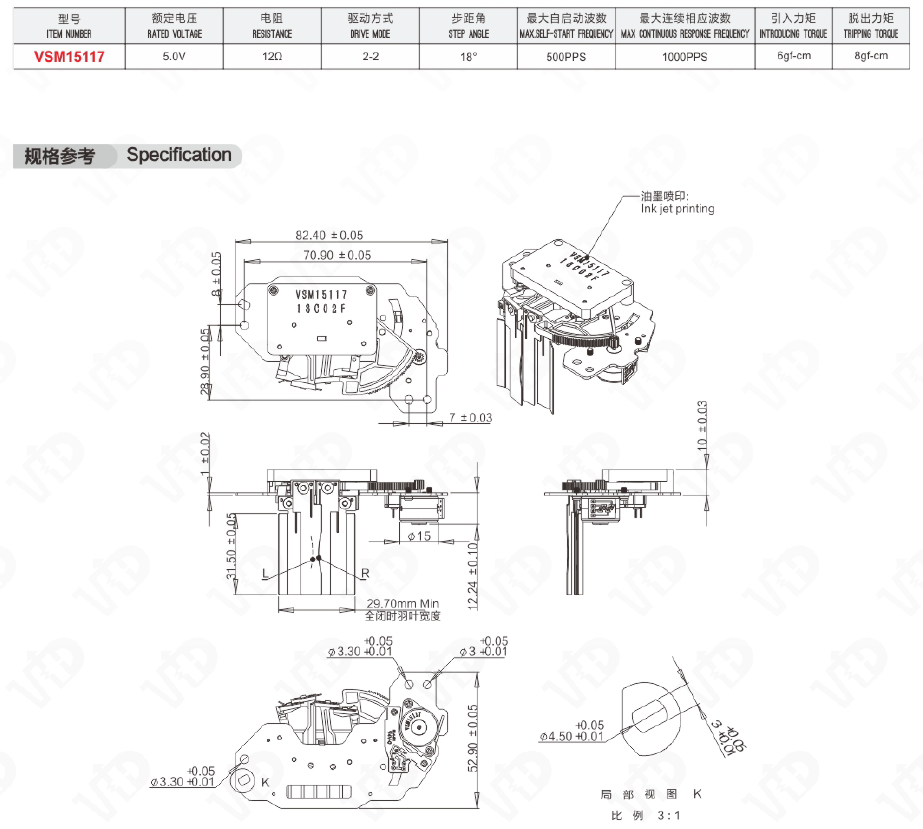

Key Dimensions Reference
| Parameter | Value |
|---|---|
| Primary Length | 82.40 ±0.05 mm |
| Primary Width | 70.90 ±0.05 mm |
| Secondary Width | 52.90 ±0.05 mm |
| Diameter 1 | φ3.30 +0.01/+0.05 |
| Diameter 2 | φ4.50 +0.01/+0.05 |
- Drive Mode
- 2-2
- Step Angle
- 18 °
- Min Full Close Feather Width
- 29.7 mm
