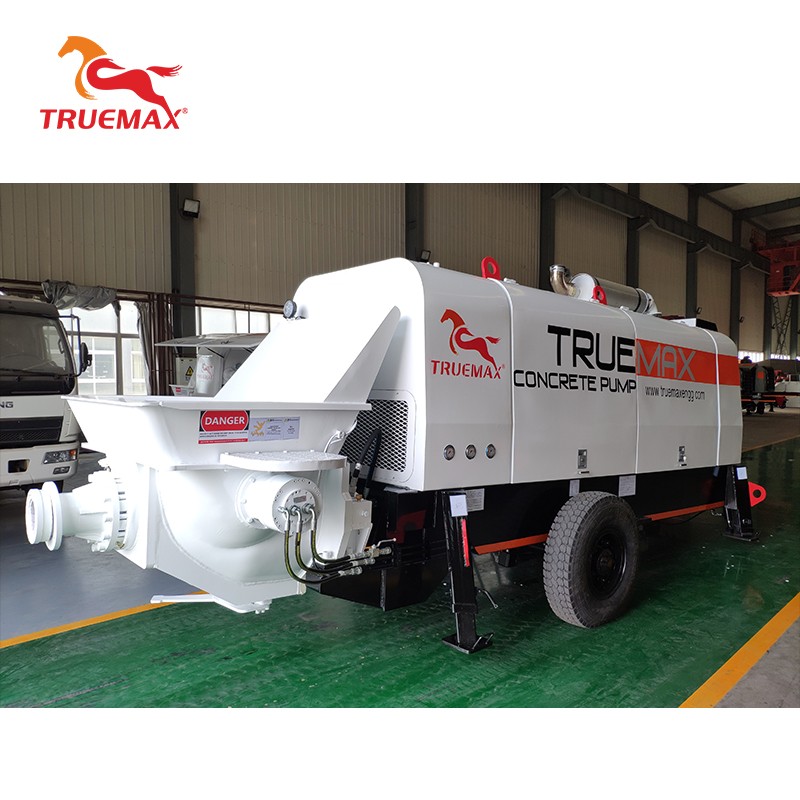

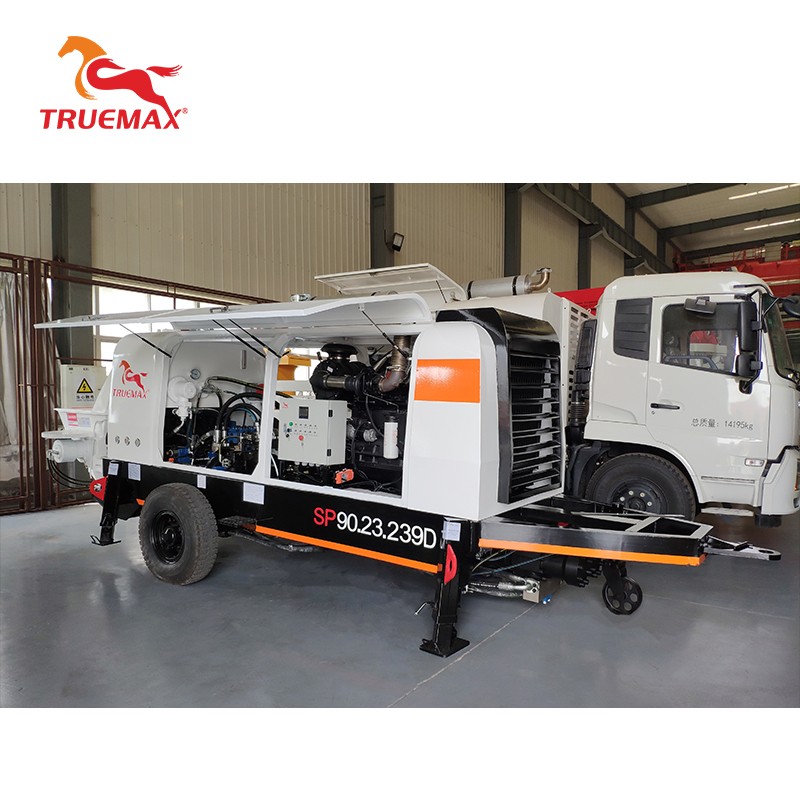

Stationary Concrete Pump
This stationary concrete pump is designed for high-performance concrete placement. Its durable construction ensures reliability and longevity, even under heavy use.
Technical Specifications
Overview
High-Performance Stationary Concrete Pump

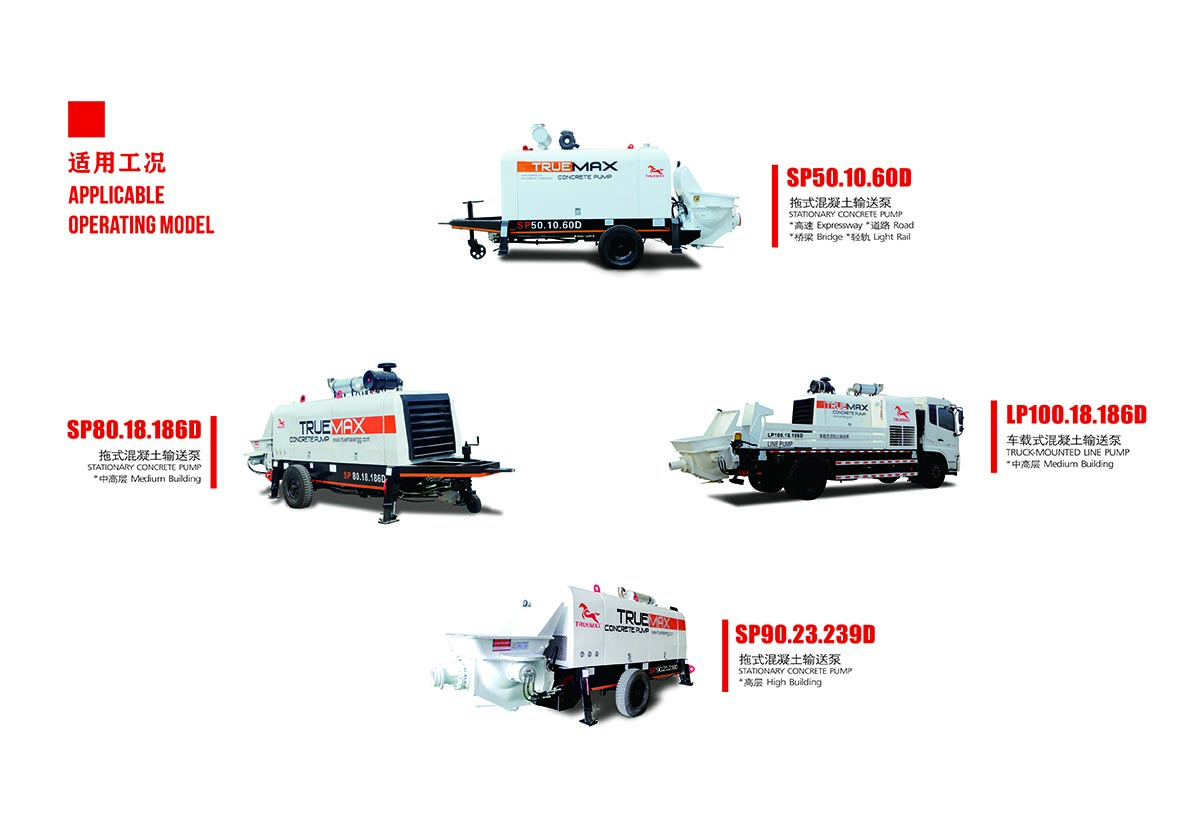

This stationary concrete pump is engineered for high-volume concrete placement in demanding environments such as high-rise building projects, bridges, and infrastructure development. It features a robust pumping unit driven by a powerful engine, ensuring consistent flow and pressure. With advanced hydraulic controls and durable, wear-resistant components, this machine provides a reliable and efficient solution for various large-scale construction applications.
Performance Metrics
Key Performance Indicators
90 m³/h
Max Theoretical Output (Low Pressure)
50 m³/h
Max Theoretical Output (High Pressure)
23 MPa
Max Pumping Pressure (High Pressure)
239 kW
Rated Power
Technical Specifications
Technical Data
| Feature | Specification |
|---|---|
| Distribution Valve | S Valve |
| Concrete Cylinder (Bore x Stroke) | Φ200 x 1800 mm |
| Hopper Capacity | 0.7 m³ |
| Rated Speed | 2000 r/min |
| Hydraulic System | Open Circuit |
| Cooling System | Air Cooling |
| Total Weight | 8100 kg |

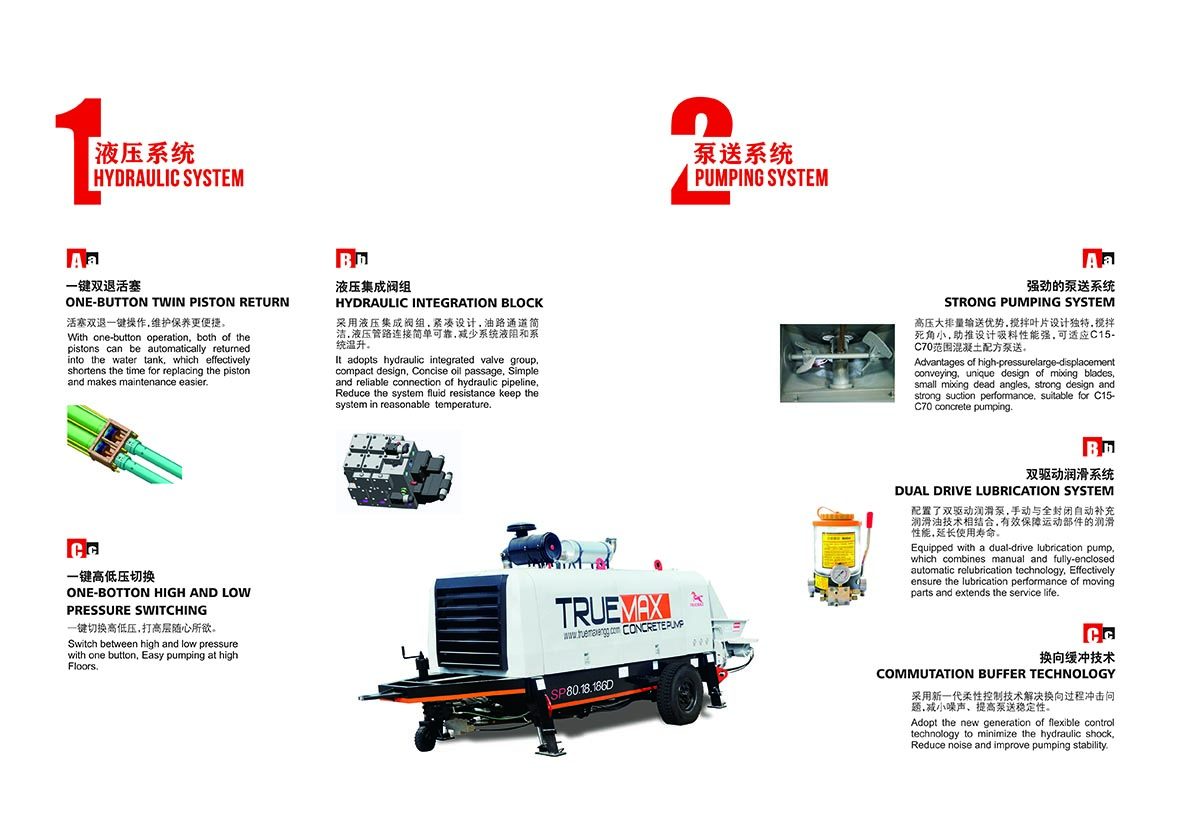

Key Features
Advanced Technology
- One-button twin piston return for easy maintenance
- Hydraulic integrated valve group for compact design
- High-pressure and low-pressure switching
- Dual-drive lubrication system (manual and automatic)
- Commutation buffer technology to minimize hydraulic shock

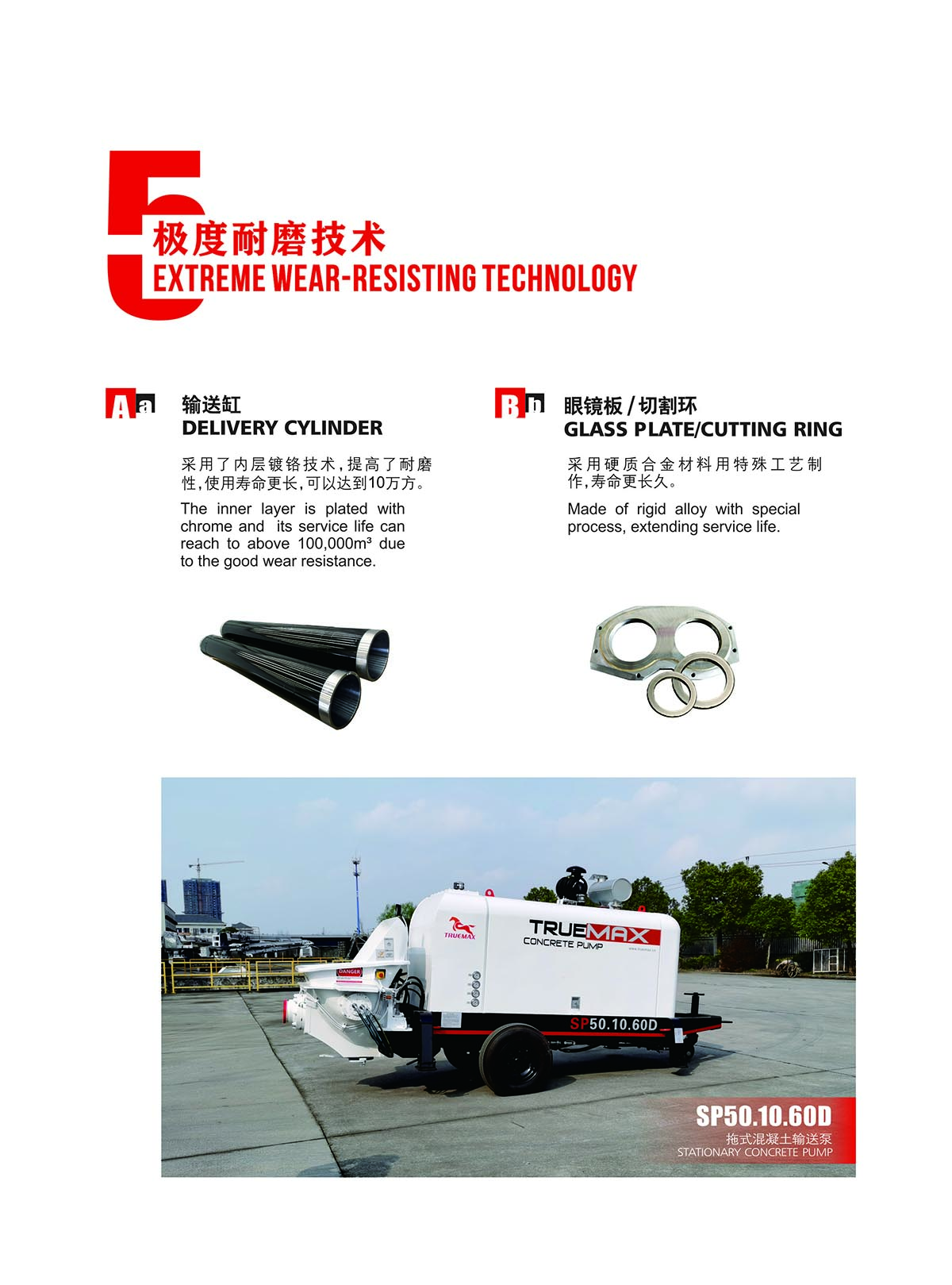

- Extreme wear-resisting delivery cylinder with chrome plating
Certifications
Certifications
ISO 9001ISO 14001OHSMS 18000CE Compliance
