Stationary Concrete Pump
This stationary concrete pump is designed for efficient and reliable concrete placement in various construction applications. It is engineered for durability and performance, ensuring consistent operation on demanding job sites.
Technical Specifications
Product Overview

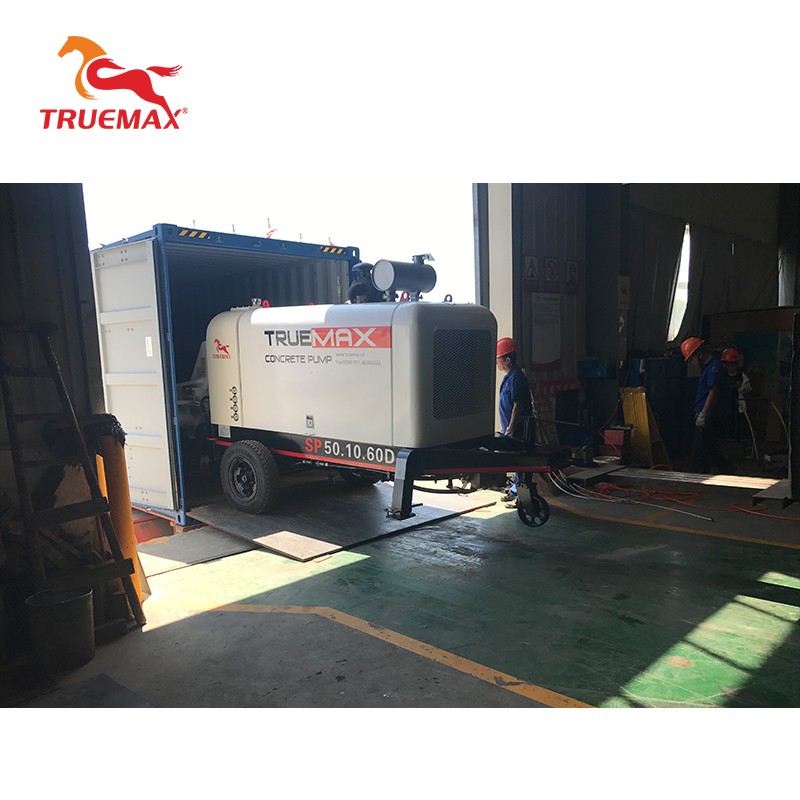

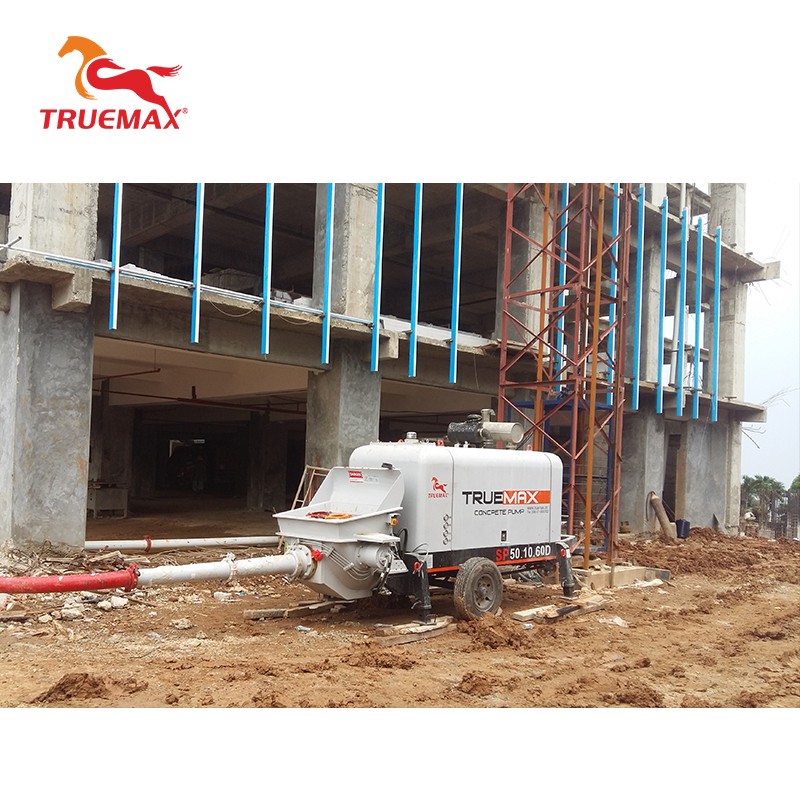

Stationary Concrete Pump SP50.10.60D
The SP50.10.60D is a high-performance stationary concrete pump engineered for reliable concrete delivery in demanding construction applications. Featuring advanced pumping technology and a robust hydraulic system, it provides consistent output for projects ranging from residential sites to large-scale infrastructure. Its durable components, including chrome-plated delivery cylinders and wear-resistant alloy cutting rings, ensure an extended service life even in continuous operation.
Technical Specifications
Performance Metrics
50 m³/h
Max Theoretical Output
10 MPa
Max Concrete Pressure
Cylinder Details
| Component | Specification |
|---|---|
| Delivery Cylinder Bore | Φ200mm |
| Stroke Length | 1800mm |
| Delivery Cylinder Lining | Chrome Plated |

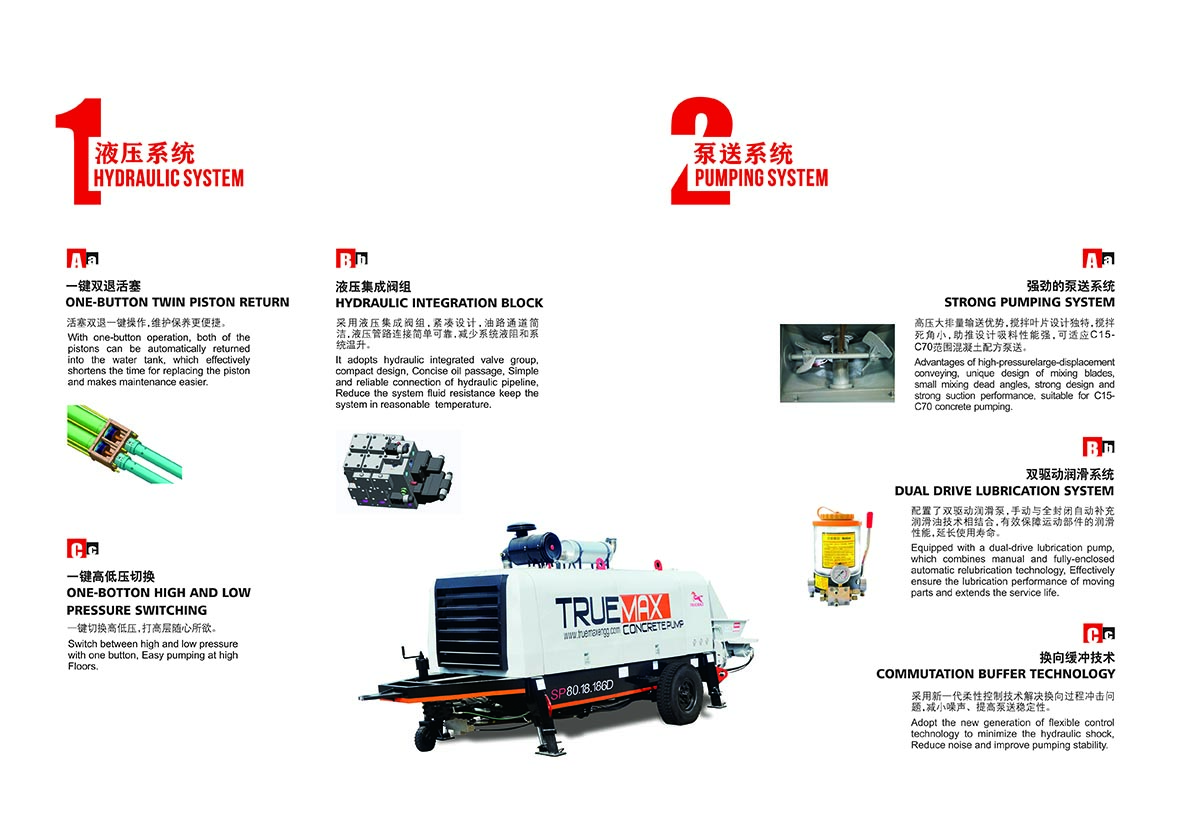

System Features
Core Technologies
- One-button twin piston return system
- Commutation buffer technology to minimize hydraulic shock
- Dual-drive lubrication system (Manual/Automatic)

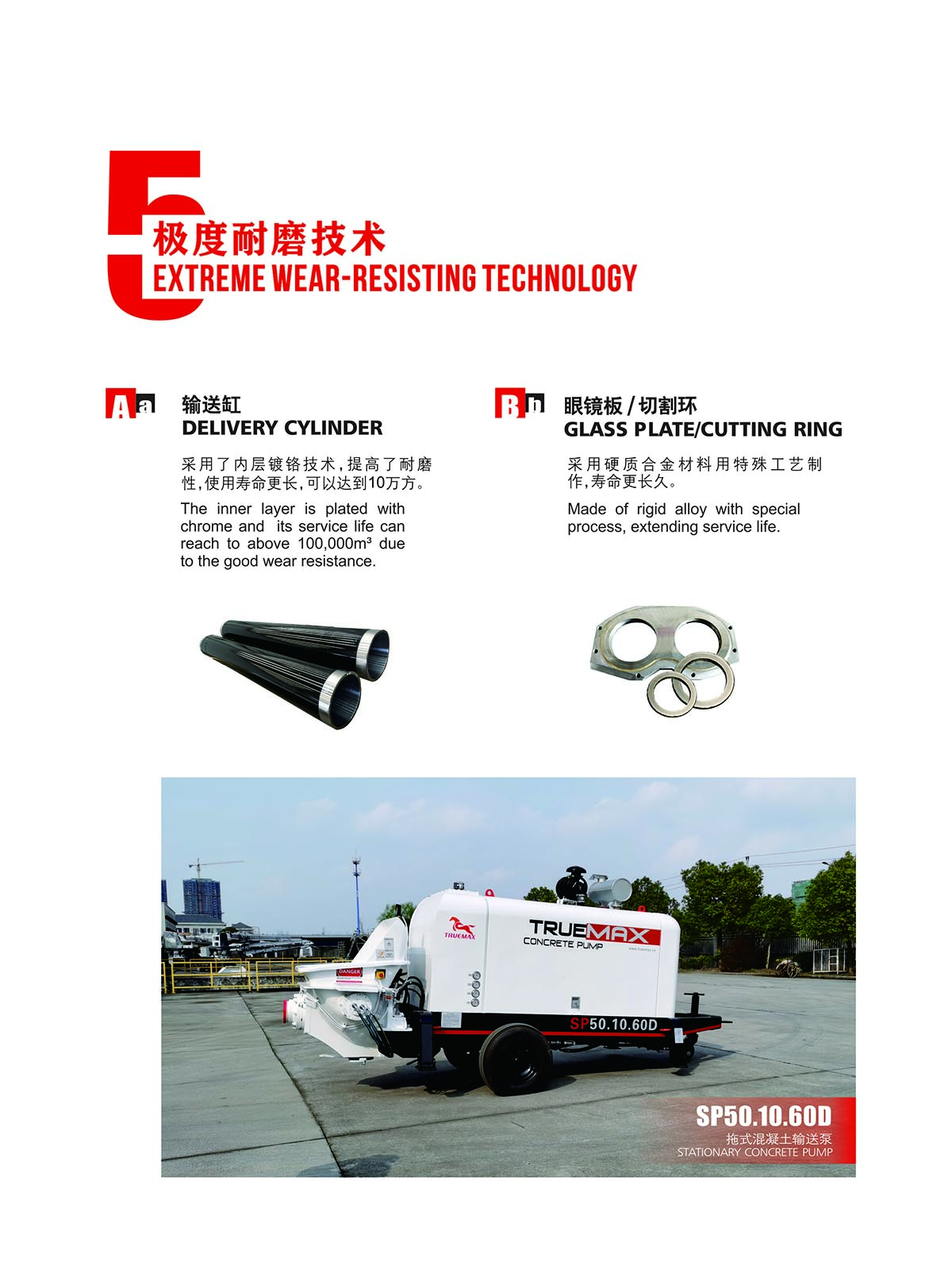

- Extreme wear-resisting delivery cylinder
- High-pressure hydraulic integrated valve group

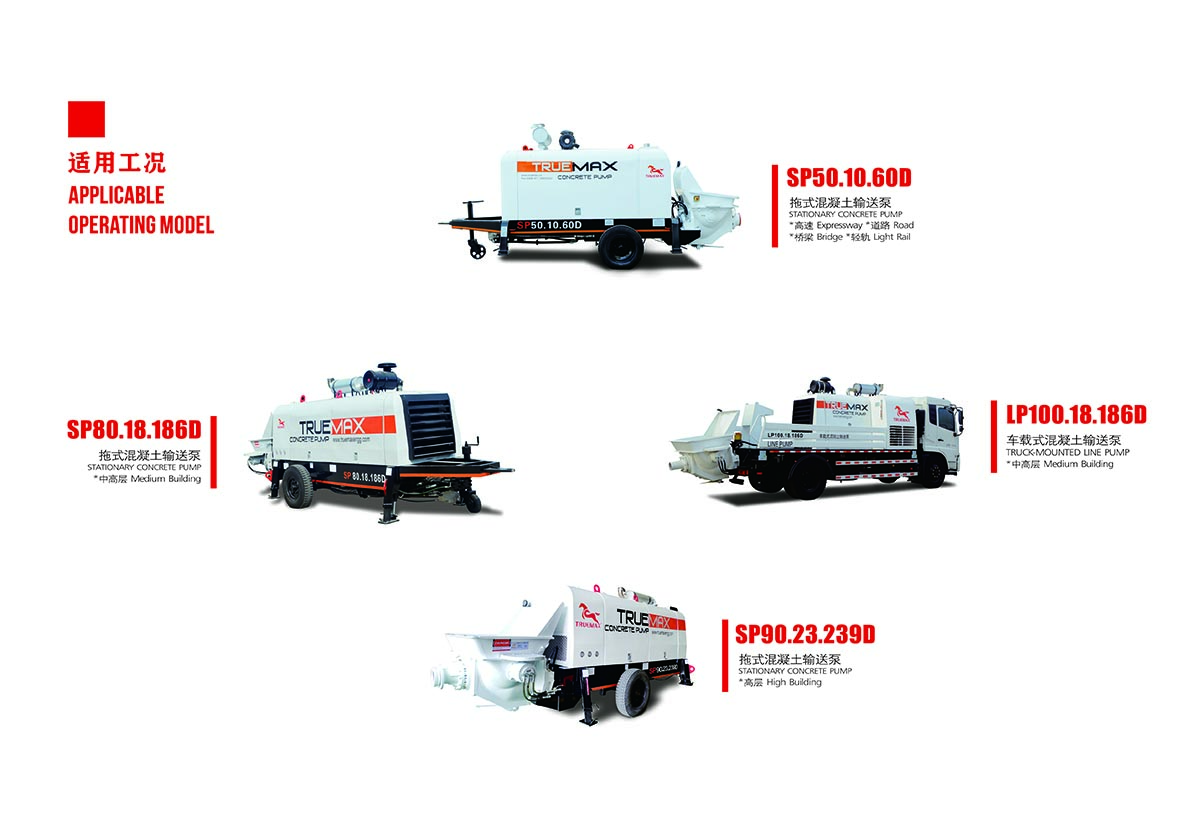

- Suitable Applications
- ExpresswayRoad ConstructionBridge BuildingLight Rail ProjectsMedium-High Buildings
