Stationary Concrete Pump
This stationary concrete pump is designed for efficient and reliable concrete placement. It features a robust construction, ensuring durability and long-term performance.
Technical Specifications
Overview

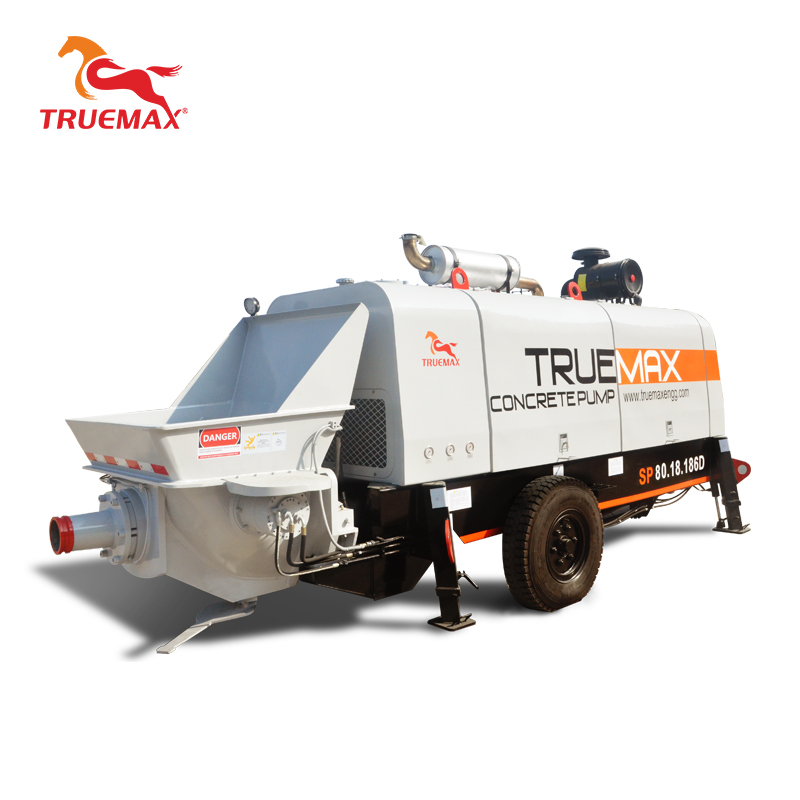

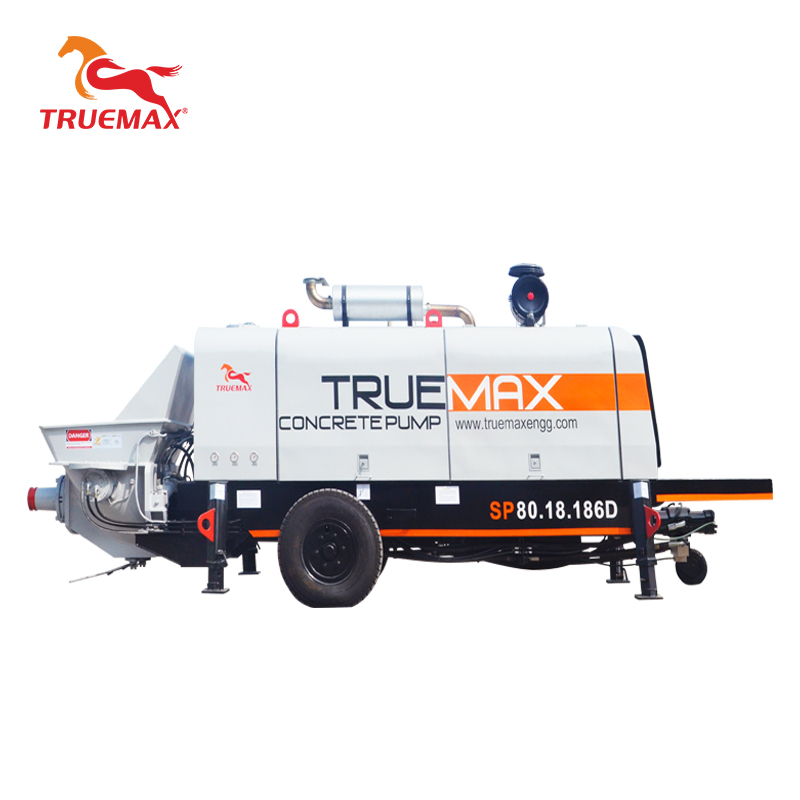

High-Performance Stationary Concrete Pump
The SP80.18.186D is a high-capacity stationary concrete pump engineered for demanding construction projects including high-rise buildings, bridges, and infrastructure. It features an advanced hydraulic system and a powerful 186 kW engine to ensure consistent, reliable concrete delivery even in complex job sites. With intelligent control systems and high-pressure capabilities, this unit optimizes fuel efficiency and pumping precision for increased productivity.
Technical Specifications
Performance Metrics
85 m³/h
Max Theoretical Output (Low Pressure)
50 m³/h
Max Theoretical Output (High Pressure)
10 MPa
Max Pressure (Low)
18 MPa
Max Pressure (High)
Mechanical Dimensions
| Component | Specification |
|---|---|
| Concrete Cylinder (Bore x Stroke) | Φ200 x 1800 mm |
| Hopper Capacity | 0.7 m³ |
| Feeding Height | 1410 mm |
| Dimensions (L x W x H) | 7130 x 2060 x 2680 mm |
| Total Weight | 7300 kg |

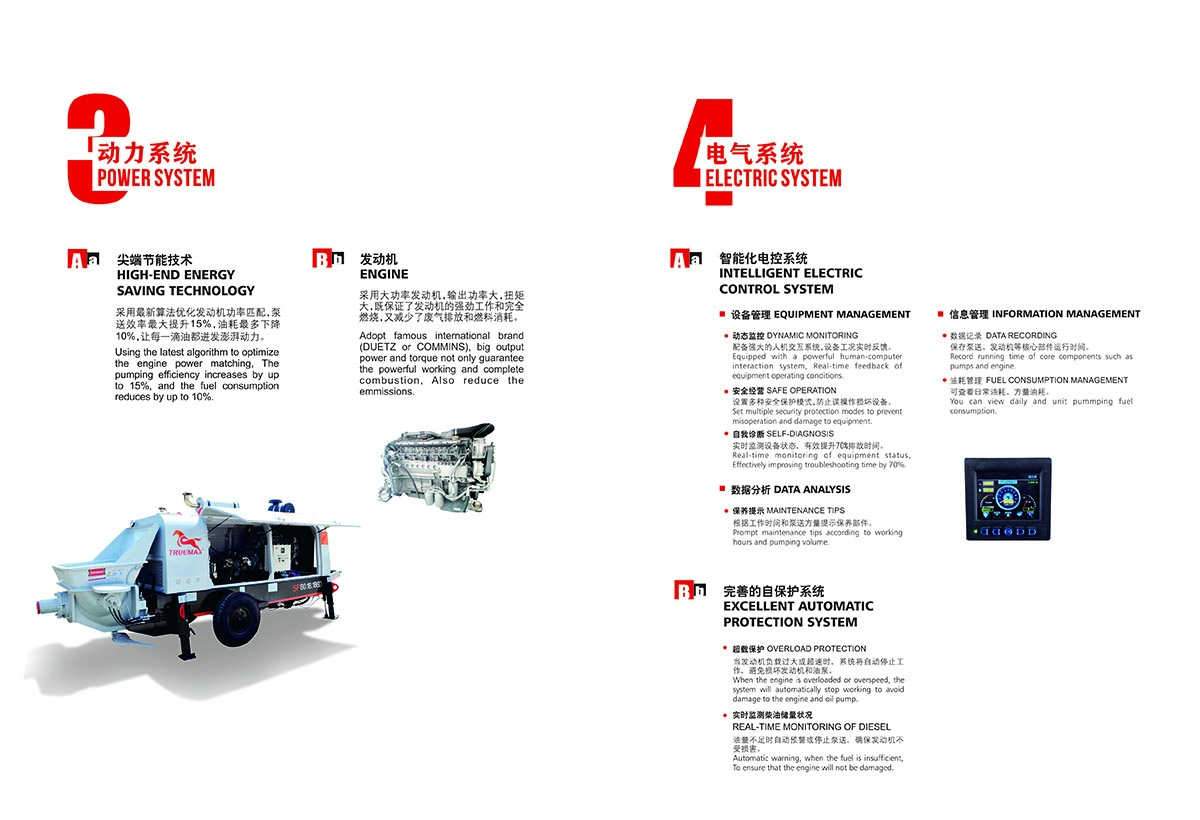

Power and Hydraulics
Engine and Power
- Rated Power: 186 kW
- Rated Speed: 2100 r/min
- Hydraulic Circuit: Open Circuit
- Cooling System: Air Cooling

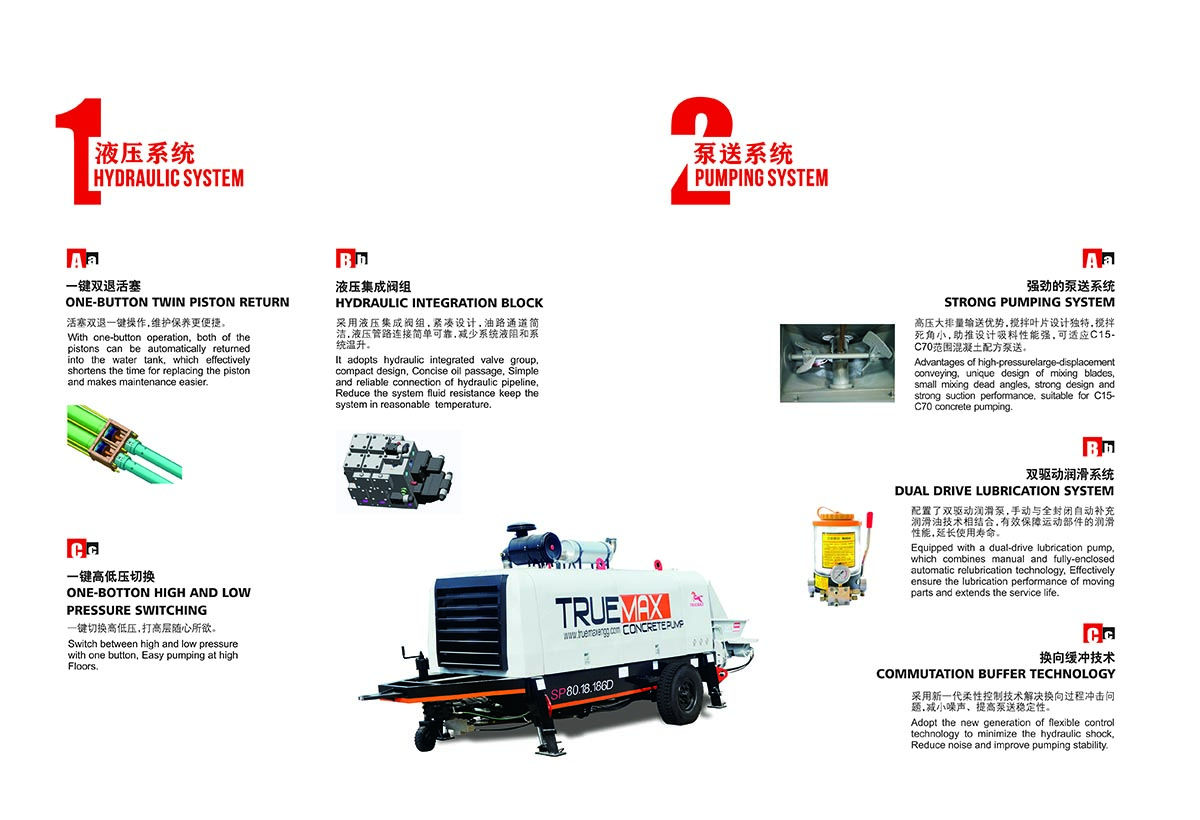

Key Features
- Operational Advantages
- One-button twin piston returnHydraulic integration blockCommutation buffer technologyOne-button high/low pressure switchingExtreme wear-resisting technologySelf-diagnosis system
Compliance
Certifications
ISO 9001ISO 14001OHSMS 18000CE Compliance
