Stationary Concrete Batching Plant, 60 m3/h
This stationary concrete batching plant is engineered for efficient and accurate concrete production. It features a stable batching system with double-gate, double-speed control for precise material discharge.
Technical Specifications
Overview
High-Efficiency Stationary Concrete Production

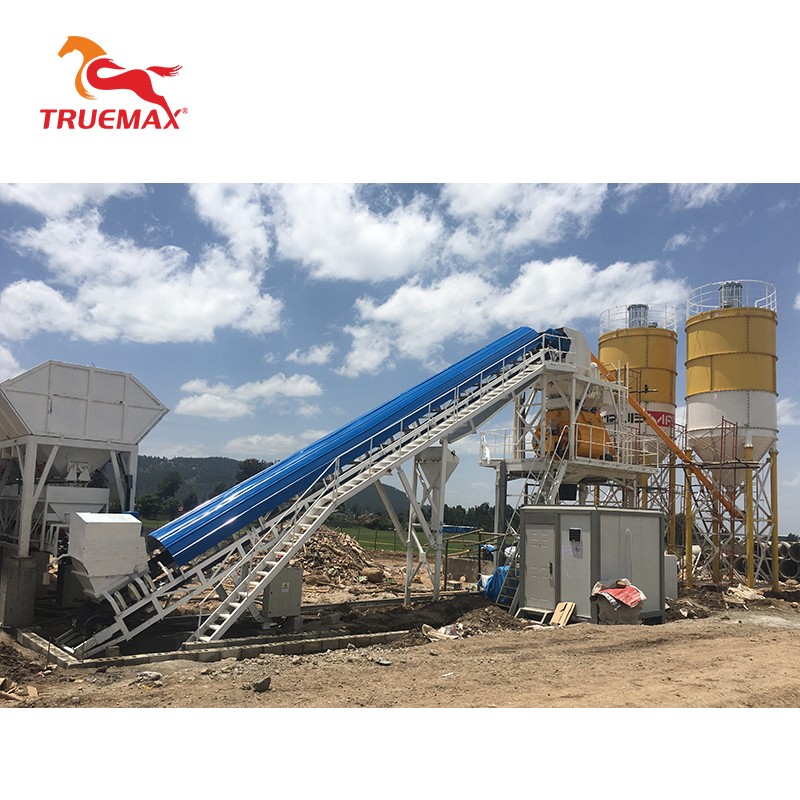

The CBP60S is a robust stationary concrete batching plant designed for medium-sized construction projects, delivering a theoretical productivity of 60 m³/h. It features a high-performance twin-shaft mixer and an automated control system to ensure homogenous concrete production and precise material proportioning. With its modular design and integrated dust collection systems, this plant offers a reliable, environmentally friendly solution for professional builders seeking consistent concrete quality.
Performance Metrics
Key Performance Indicators
60 m³/h
Theoretical Productivity
60 s
Cycle Period
1,500 L
Mixer Nominal Capacity
70 kW
Total Power
Mixing System
Mixer Specifications
| Parameter | Value |
|---|---|
| Mixer Model | JS1000 |
| Mixing Motor Power | 2 x 22 kW |
| Max Aggregate Size (Crushed) | 60 mm |
| Max Aggregate Size (Pebble) | 80 mm |
| Mixer Type | Twin-shaft |
Batching & Weighing
Material Weighing Precision
| Material | Range (kg) | Accuracy |
|---|---|---|
| Aggregate | 833 - 2500 | ±2% |
| Cement | 200 - 600 | ±1% |
| Water | 100 - 300 | ±1% |
| Additive | 7 - 20 | ±1% |

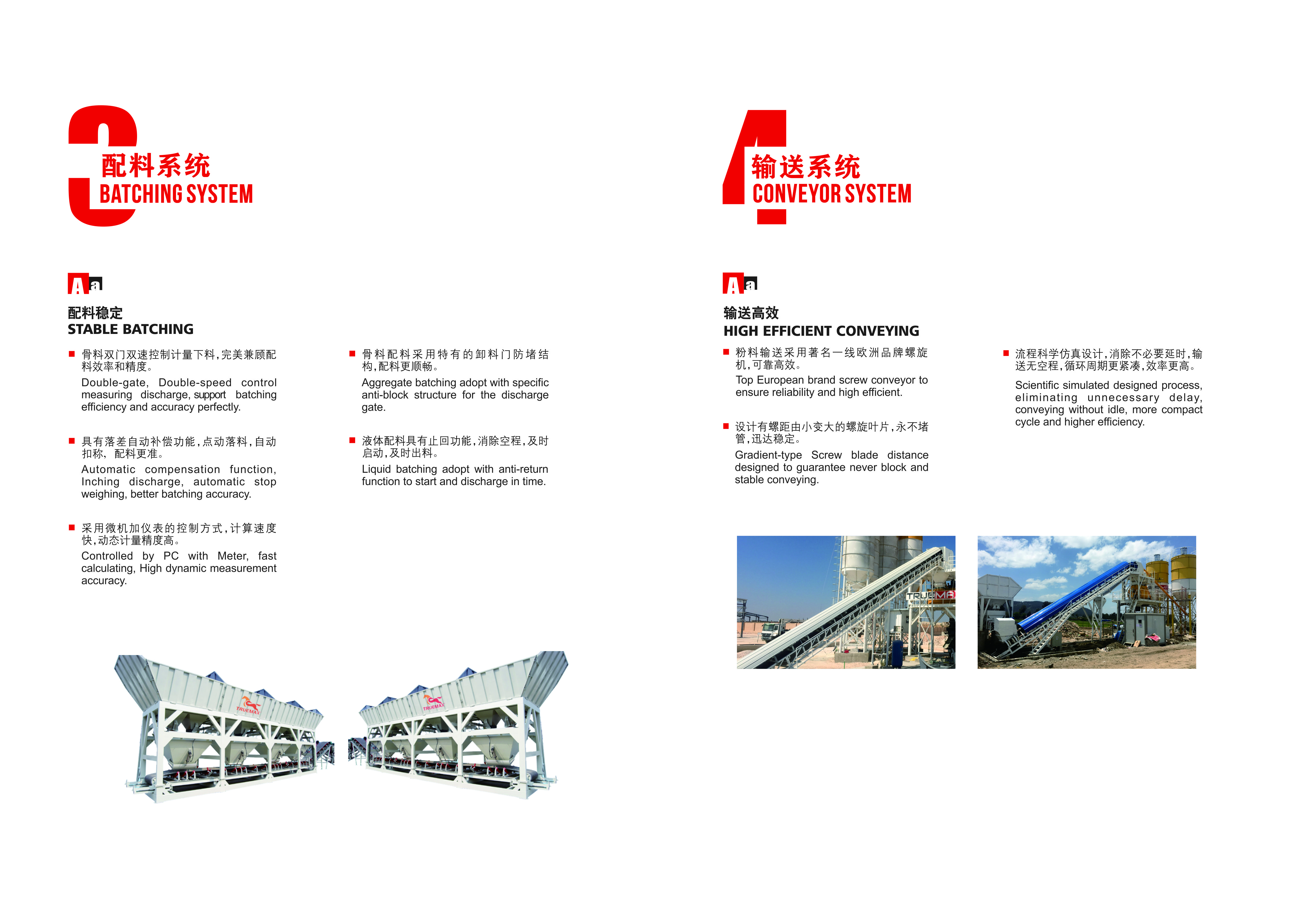

Storage & Feeding
Storage Configuration
- Aggregate Bin Capacity: 3 x 10 m³
- Number of Aggregate Types: 3
- Inclined belt conveyor for aggregate feeding
- Optional Screw Conveyor diameters: Φ219, Φ273, Φ323
- Silo Capacity Options: 50T to 250T
Intelligent Control
Control System Features
- Synchronized batching process display
- Double-speed coarse and fine weighing with automatic compensation
- Fully-automatic and manual operation modes
- Industrial control computer with anti-interference
- Remote intelligent service and self-diagnosis system

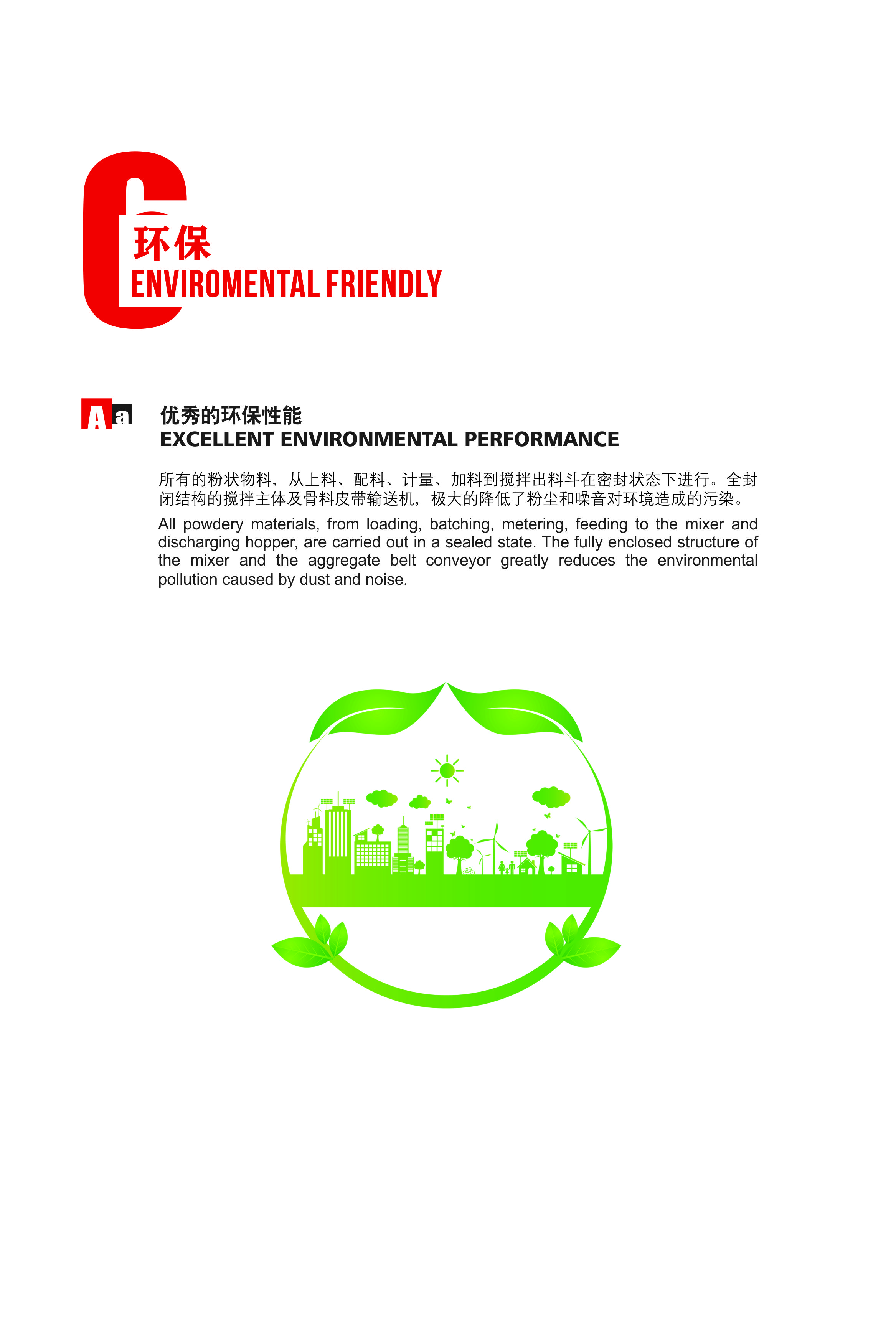

Environmental & Safety
- Environmental Compliance
- Fully Enclosed StructureDust Collection SystemNoise ReductionSealed Powder HandlingISO 9001:2015CE Certified
Service Support
After-Sales Commitments
- 3-minute response time for service needs
- 24-hour solution delivery
- On-site installation and commissioning guidance
- Operational training for staff
- Regular follow-up and equipment tracking
