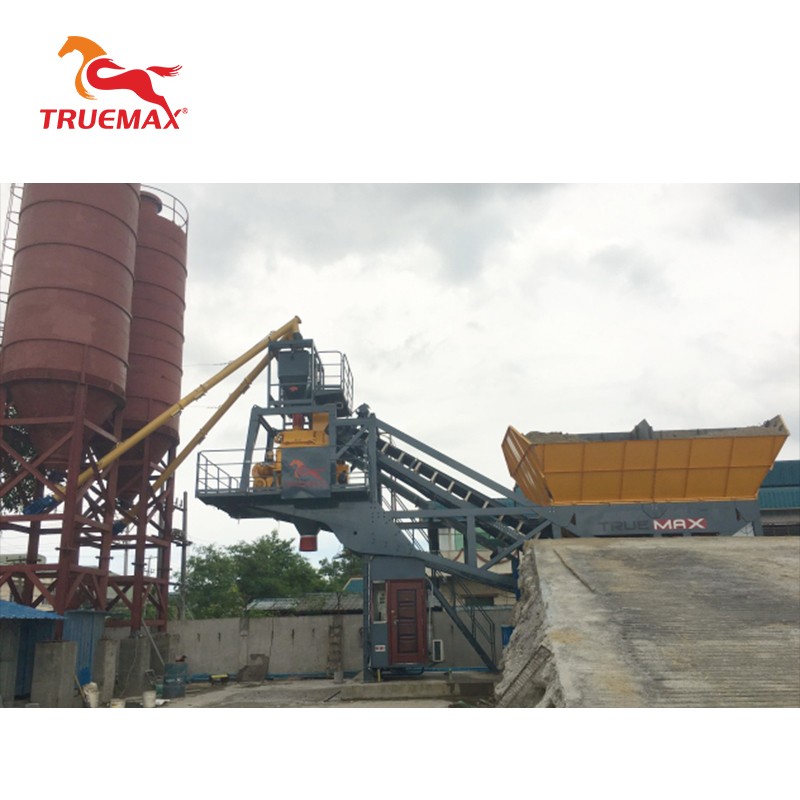

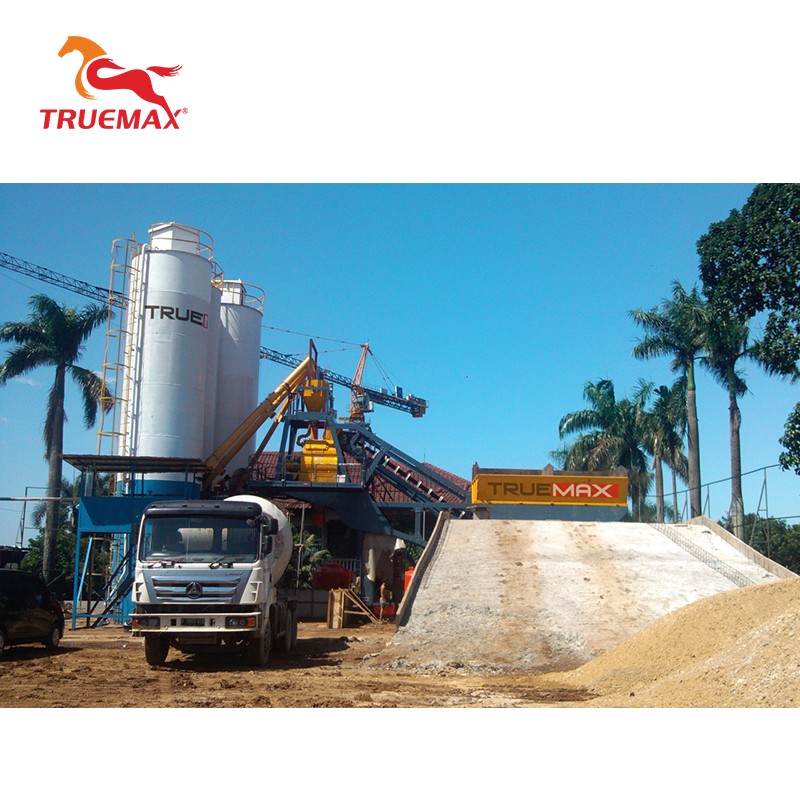

Stationary Concrete Batching Plant, 60 m3/h
The CBP60M concrete batching plant is a stationary mixing plant designed for efficient and reliable concrete production. It features multiple aggregate storage silos, a weighing and feeding system, a high-performance concrete mixer, and a control system for automated operation.
Technical Specifications
Overview
High-Efficiency Stationary Concrete Batching Plant
The CBP60M is a high-performance stationary concrete mixing plant designed for reliable production in medium to large-scale construction projects such as roads, bridges, and buildings. With a theoretical productivity of 60 m³/h, it features a modular design for streamlined installation and consistent concrete quality. The system integrates advanced weighing, conveying, and mixing technologies to ensure operational efficiency and long-term durability.
Performance Metrics
Key Performance Indicators
60 m³/h
Theoretical Productivity
60 s
Automatic Cycle Period
76 kW
Total Power Consumption
Mixing System
Mixer Specifications
| Parameter | Value |
|---|---|
| Mixer Model | JS1000 |
| Motor Power | 2 x 22 kW |
| Nominal Capacity | 1500 L |
| Mixer Type | Twin-shaft Concrete Mixer |
Material Handling
Aggregate Handling
| Feature | Specification |
|---|---|
| Max Aggregate Size | 60/80 mm |
| Aggregate Bin Capacity | 4 x 10 m³ |
| Number of Aggregate Types | 4 |
| Conveyor Type | Belt Conveyor |

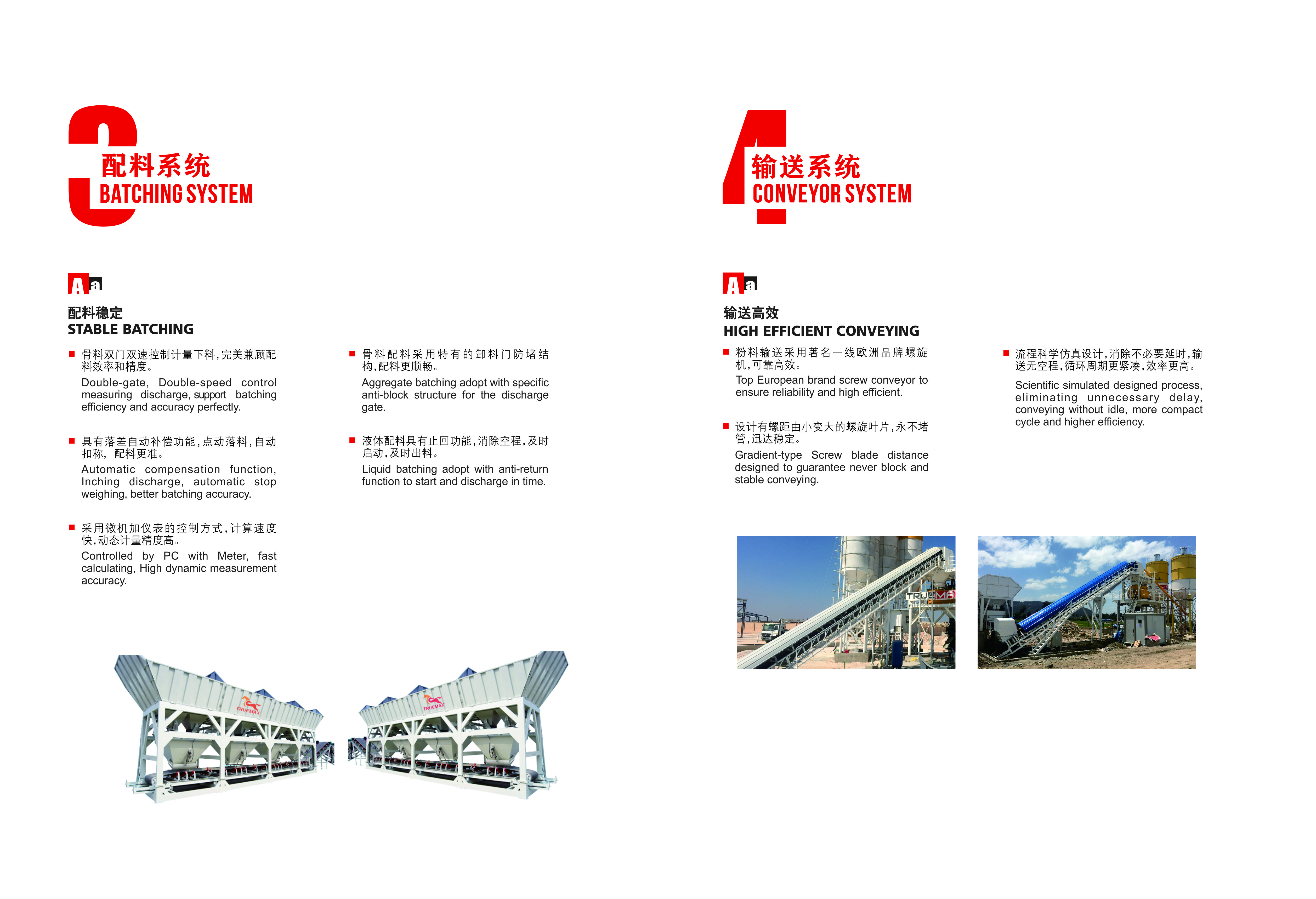

Batching & Accuracy
Weighing Accuracy & Range
| Material | Range | Accuracy |
|---|---|---|
| Aggregate | 833~2500 kg | ±2% |
| Cement | 200~600 kg | ±1% |
| Water | 100~300 kg | ±1% |
| Additives | 7~20 kg | ±1% |

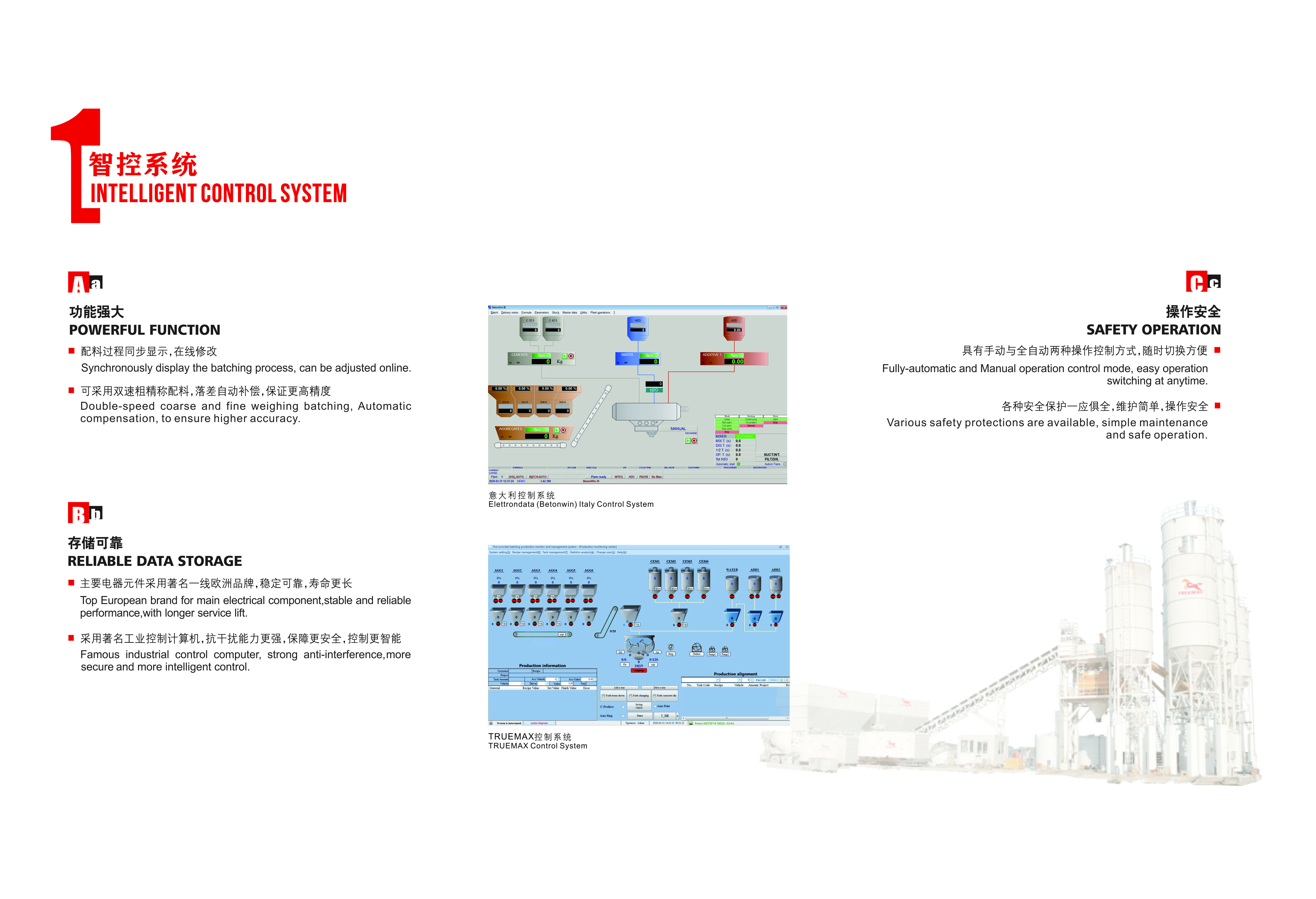

Control System
Intelligent Control Features
- Synchronized display of batching process
- Double-speed coarse and fine weighing
- Automatic drop compensation
- Manual and fully-automatic operation modes
- Industrial control computer with anti-interference
- Real-time monitoring of gearbox and pumps

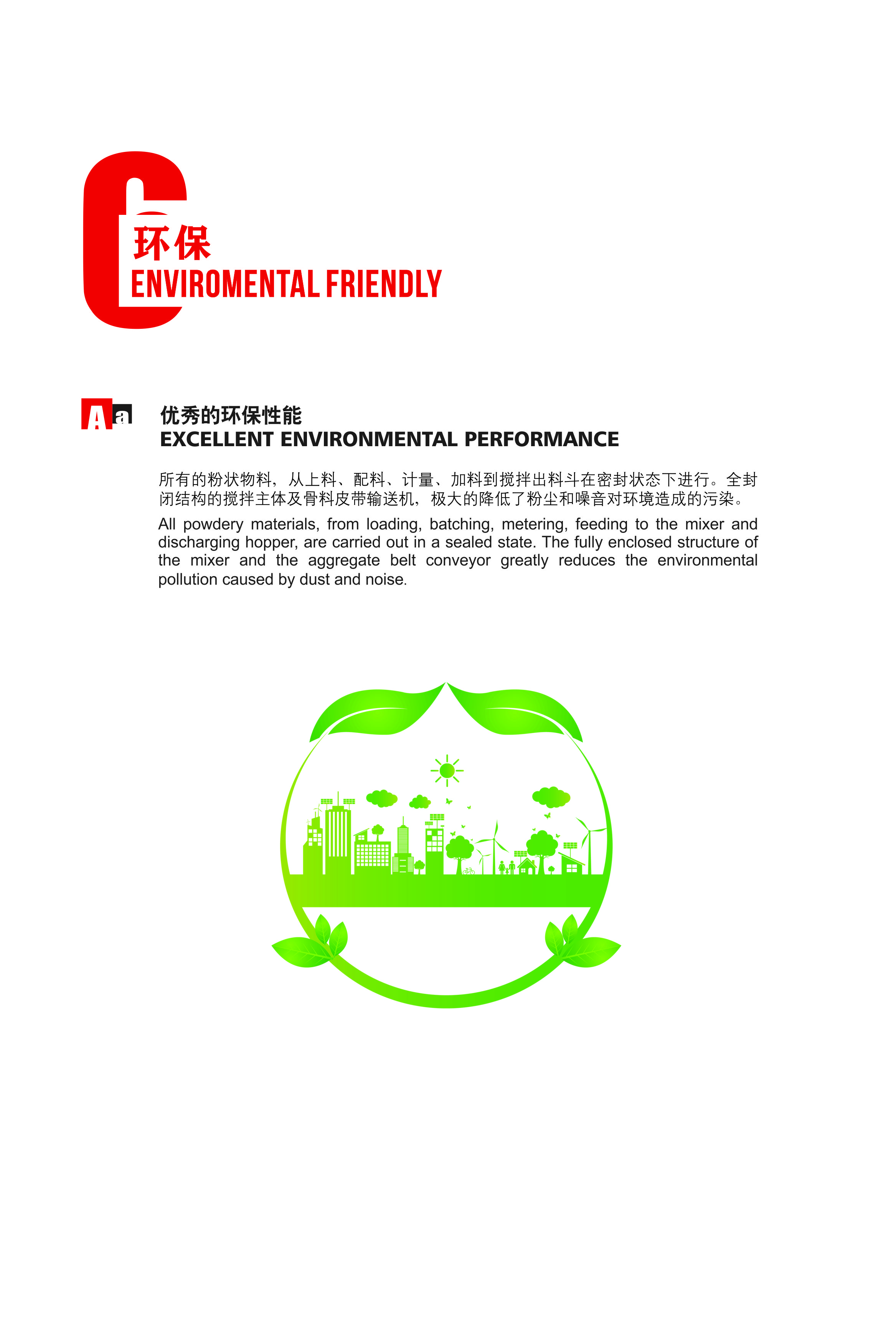

Environmental & Safety
- Environmental Compliance
- Fully Enclosed StructureDust Collection SystemNoise ReductionSealed Powder MeteringEnvironmental Protection Design
Certifications
Quality & Safety Standards
CE CertifiedISO 9001:2015ISO 14000OHSMS 18000
Optional Components
Silo Options
- 50T Silo (3260mm Diameter)
- 100T Silo (3260mm Diameter)
- 150T Silo (3260/3600/4500mm Diameter)
- 200T Silo (4100/4500mm Diameter)
- 250T Silo (5050mm Diameter)
