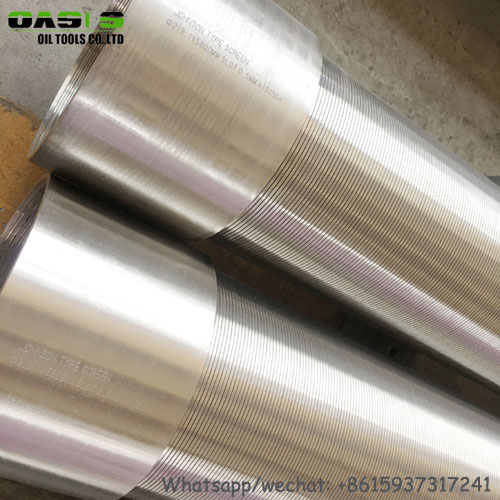

Stainless Steel Wire Wrap Screen for Water Well Drilling
This stainless steel wire wrap screen is designed for water well drilling applications. It allows water to enter the well freely while keeping the majority of sand and gravel out.
Technical Specifications
Product Overview
High-Performance Wire Wrap Screens

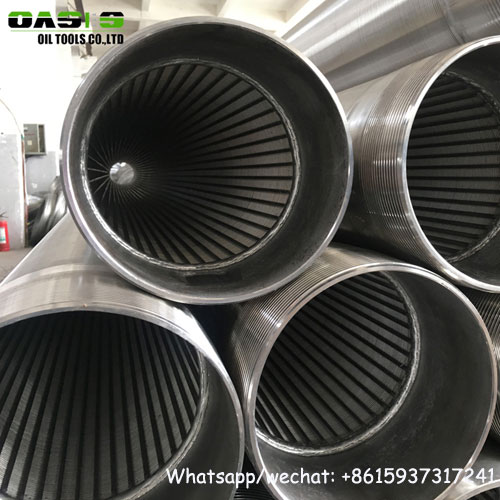

These stainless steel wire wrap screens are engineered for optimal performance in water well drilling applications. Featuring a continuous slot design created by fusion-welded V-shaped profile wires, the screen effectively allows fluid intake while preventing sand and gravel ingress. Built for durability, these screens provide structural integrity and efficient flow in challenging subterranean environments.
Technical Dimensions
Available Slot Sizes
- 0.1
- 0.15
- 0.2
- 0.25
- 0.3
- 6
- Diameter Range
- 25mm to 1200mm
- Maximum Length
- 6 meters
Materials and Construction
End Connections
Plain Beveled EndsThreaded CouplingsFlanged
- Materials
- Stainless Steel 304Stainless Steel 316Galvanized Low Carbon Steel
Component Specifications
Wedge Wire Dimensions (Width x Height)
| Width (mm) | Height (mm) |
|---|---|
| 1.50 - 3.70 | 2.20 - 7.00 |
Support Rod Dimensions
| Width (mm) | Height (mm) | Round (mm) |
|---|---|---|
| 2.30 - 3.70 | 2.70 - 6.30 | 2.50 - 6.00 |
